The photo machine has many precise parts, which coordinate with each other to make the printing of the photo machine more stable and efficient. Many printing failures are also affected by these accessories, so we should be more familiar with and understand their functions and roles, in the production and processing can easily find the cause of the problem and quickly solve.

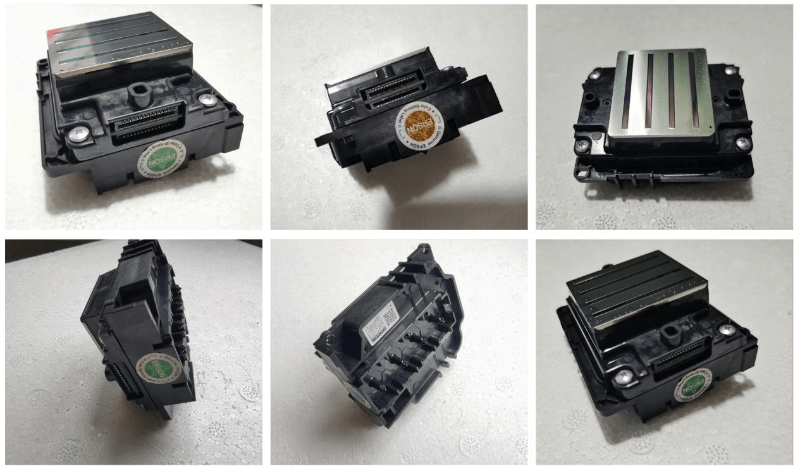

The nozzle is a very important part of the photo machine, its quality directly affects the normal print output of the photo machine, and the stability of the printing state also determines the color effect and image clarity of the output image. Now different kinds of micro piezoelectric photo machine, basically equipped with Epson nozzle, high printing accuracy, fast speed, stable performance.

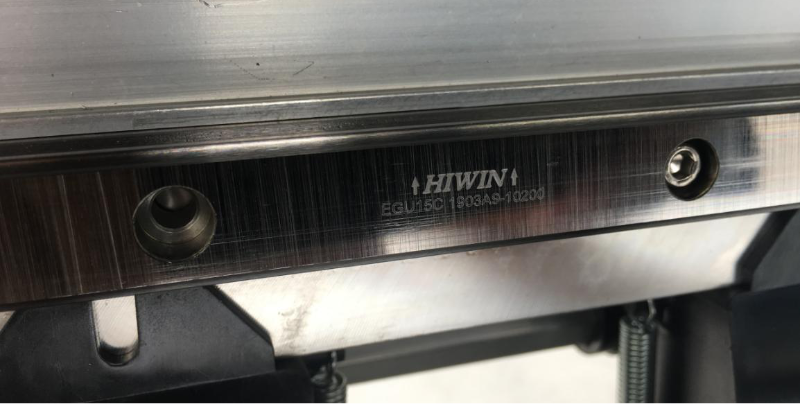

High quality Audley photo machine made in TaiwanHIWINGuide rail, equipped with high-precision ultra-silent double sliders, to ensure the stability of the car moving. The parallelism between the slider and the assembling surface of the paper holder is0.05mmWithin, greatly improve the printing accuracy.

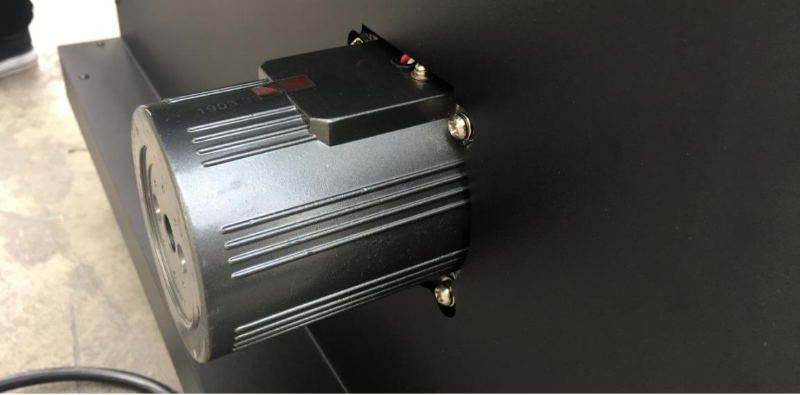

The Audley photo machine uses RaesayiSV57Integrated intelligent servo motor, long service life, no need to replace the carbon brush. The intelligent control system is simple and convenient, the printing accuracy is greatly improved, and the design concept of high speed and stability is the guarantee of the production and processing of industrial photo machines.
NO.4Ink cartridge, ink pad, ink sac

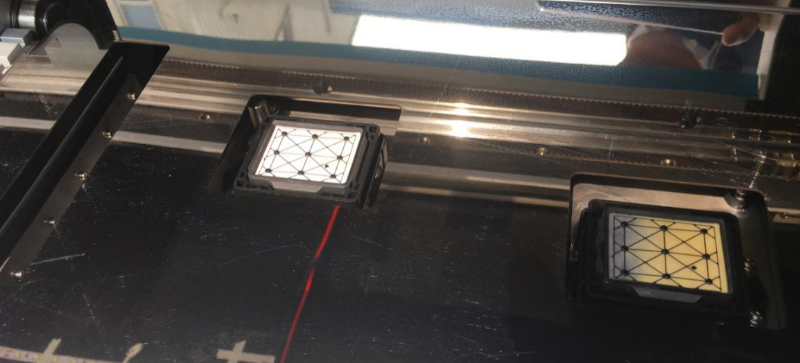

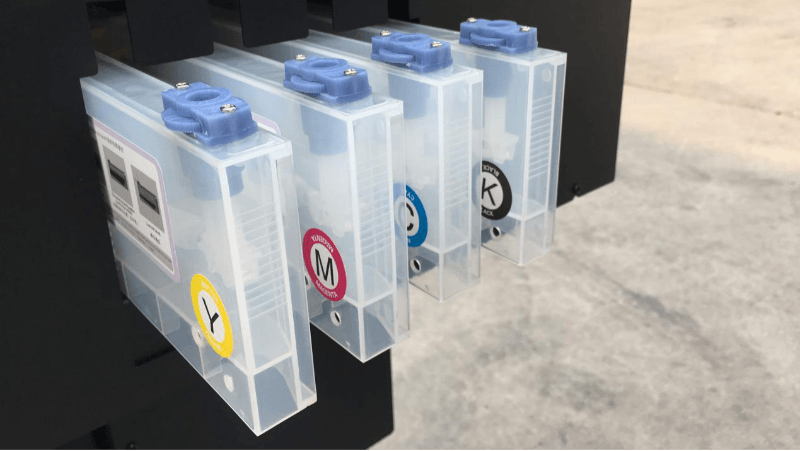

The ink cartridge provides continuous ink supply for the photo machine, and the ink pad is located directly below the photo machine nozzle and on the right side of the whole machine, the main function is to protect the nozzle.
The ink bag is generally located above the head of the photo machine, connected between the nozzle and the ink tube, the ink bag has a filter screen, which can filter out the impurities in the ink, ensure the smooth ink supply, eliminate the blockage of the nozzle, broken line and other faults, and play the role of ink filtration.

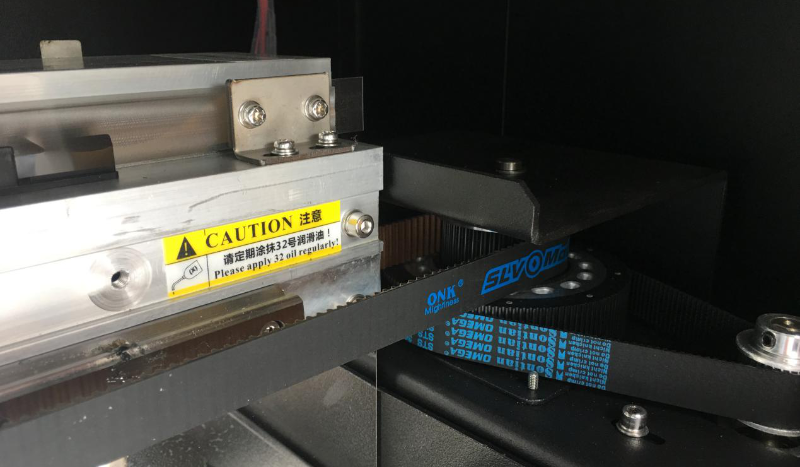

The new generation of high-quality Audley gear adopts an integrated design with high precision, good rigidity, strong stability and long life, which is more suitable for long-term printing work.

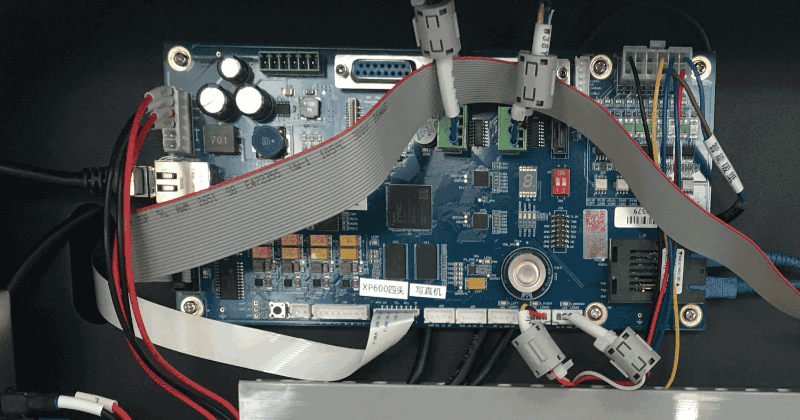

100MNetwork card printer interface, simple operation, users do not need to install the driver can also achieve high-speed, stable printing effect. Machine support multi-computer printing business, compatibleWIN7 32/64,WIN10The operating system. The Audley photo machine is equipped with a stable board control system, which combines the board with the Epson nozzle to demonstrate strong stability.
Audley full range of piezoelectric photo machine, using the original Epson nozzle, stable board system, Reisai servo motor, the whole aluminum beam structure, higher precision, more powerful. Greatly improve the service life of the photo machine, escort the photo uninterrupted printing for a long time, and ensure the extreme, high-speed and stable printing work of the photo machine industry.
High speed sprinkler :I3200 high speed sprinkler, compatibility: weak solvent, water, thermal sublimation, UV Dual-head configuration: true high-speed printing, 75 square per hour; Control system: the most stable domestic board control system; Silent linear guide: imported silent linear guide, more stable machine movement 1 longer service life; Anti-scratch device: prevent the material from lifting the scratch nozzle, effectively protect the nozzle; Intelligent heating: Dual infrared heating: reduce drying time, speed up paper delivery efficiency, ensure high-speed printing; New frame design: mold appearance new aluminum alloy body structure design, effectively improve the picture printing quality; The height of the trolley frame adjustment: according to the thickness of the material, adjust the height of the nozzle, convenient for users to use more media; Silent linear guide: imported silent linear guide, more stable machine movement, longer service life;
1.With Epsoni3200-A1/E1Original authentic sprinkler head 2.Imported silent linear guide rail: no noise, more stable movement, more stable printing, extend the service life of the machine. 3.All aluminum lifting ink stack: automatic lifting ink stack, tighter sealing and long-term moisturizing, automatic cleaning Settings, cleaner and simpler printing. 4.German Igus chain, the movement is silent more stable. 5.Three speed adjustable press wheel, prevent static electricity does not fly ink, printing size is more accurate, no wrinkles.
With Epsoni3200-U1Nozzle, four-head configuration, high precision mode can be reached32㎡/h, production mode48㎡/h. Platform three zones adjustable suction, high power water coolingUVLights. Head automatic height measurement, anti-collision protection, nozzle independent constant temperature system. Heavy-duty pneumatic expansion shaft, rolling simple discharge system, large bearing weight, long service life, uniform retracting and discharging materials.
