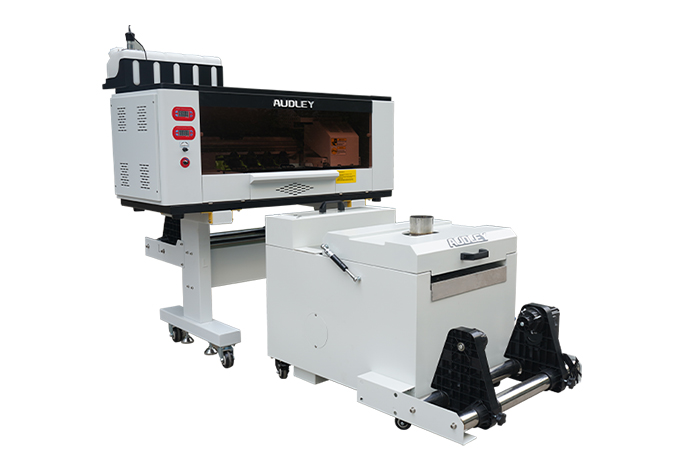

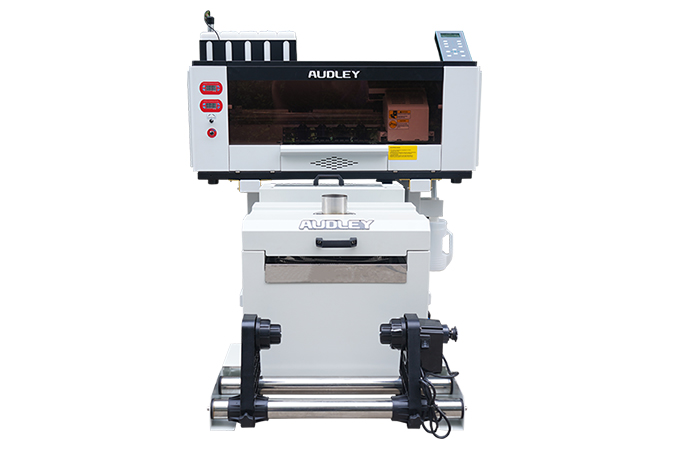

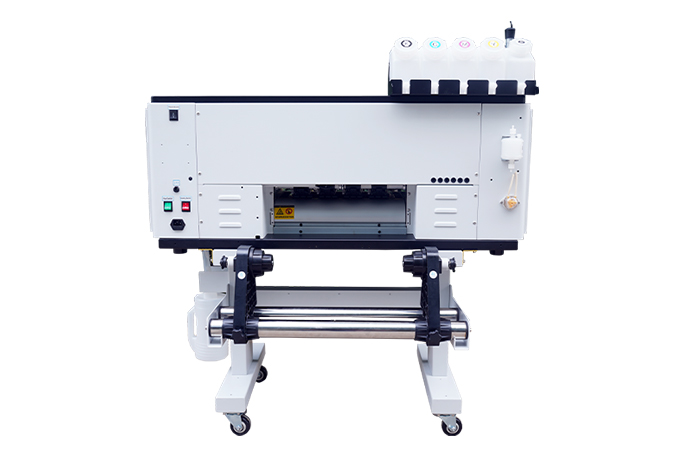

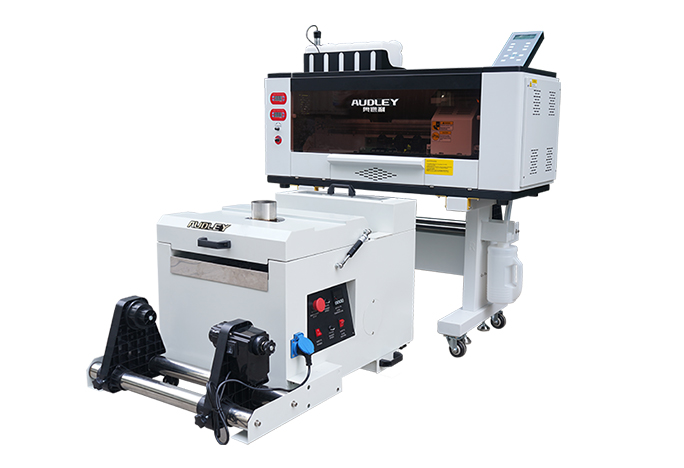

S2030 DTF Printer
High-Quality Printing Performance: The Audley S2030-X5 DTF printer features dual XP600 F1080A1 heads, allowing for fast and precise printing with a maximum size of 30cm. This ensures high-quality prints for various fabric applications.
Easy Operation: Designed for ease of use, this DTF printer is perfect for users of all skill levels, including beginners.
Multi-Color Printing Capability: With the ability to print in CMYK+White, this machine offers a wide range of color options, making it ideal for creating vibrant and detailed designs.
- Working Size Less than 33cm
- Voltage 220V 50HZ/60HZ(Standard)
- Heating Temperature 110℃.
*Warranty: 1 year, print head and ink road have no warranty
Technical Parameters
1 year, print head and ink road have no warranty
| Printer Model | S2030-X5 | S2030-3 |
| Print head | 2 head Epson F1080-A1 | 2 head Epson i3200-A1 |
| Board | Sunyung board | Hoson board |
| Speed | 4pass:4sqm/h 6pass:3sqm/h | 4pass:6sqm/h 6pass:4sqm/h 8pass:3sqm/h |
| 8pass:2sqm/h |
| Working size | Less than 33cm | Powder shaker model | DF-300 |

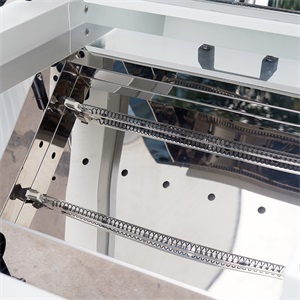

| Ink | Pigment ink (CMYK+White) | Heating tube | 3PCS*400MM (400W/pcs) |
| Voltage | 220V 50HZ/60HZ(Standard) | Heating temperature | 110℃. |
| Packing size | 144*70*67cm(Printer) | Weight | 117KG(Printer) |
| 130*65*101cm(Shaker) | 103KG(Shaker) |
Equipment Details
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.

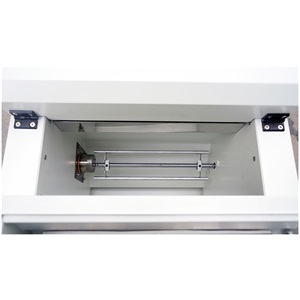

Shaker powder
tank
Detail image title
Temperature
sensor

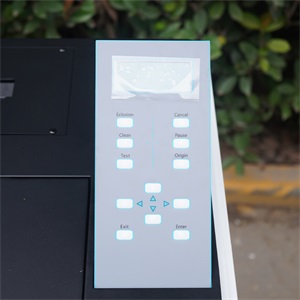

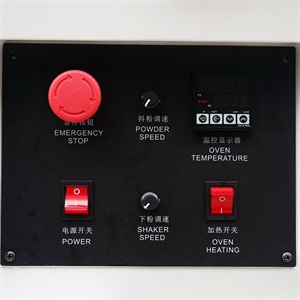

Control panel
Control panel
Detail image title

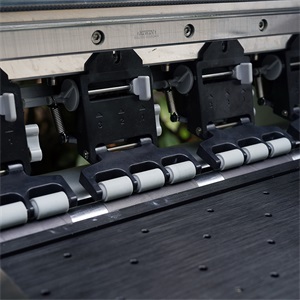

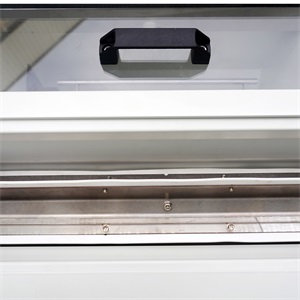

Precision material
pinch roller

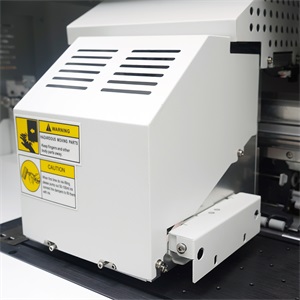

Anti-collision device

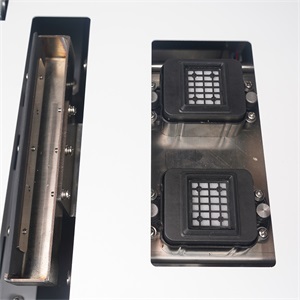

DetaHigh precision
machinery ink
station

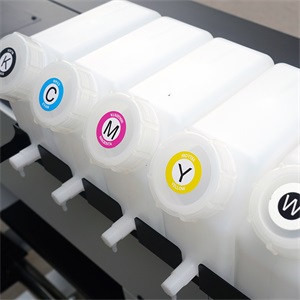

Large capacity ink
supply system
Print Head Configuration
2 PCS EPS13200 HEAD print head Parameter
DTF STAR IV Desktop A3 DTF printer using Epson I3200 print heads. Epson I3200 head has 3200 nozzles, a resolution of 600dpi, jetting frequency is higher than DX5 and XP600, and also color saturation, printing speed, and printing accuracy are better, and the price is cheap. Very cost-effective.
2 PCS EPS13200 HEAD print head Parameter
| Model | I3200-A1 |
| Ink Types | Water based ink |
| Size(width x depth x height)(mm) | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Nozzle Numbers | 3200 |
| Length Between Nozzles(inch) | 1/300(in one row) |
| Nozzle Row | 8 row |
| Max color/head | 4 colors |
| Resolution | 300 npi/1 row 600 npi/2 rows |
| Effective Printing Width(mm) | 33.8 |
| Jet Freqency(kHz) | 43.2 (single dot), 21.6 (multi dot) |
| Ink Drops(pl) | 3.8-6-12(9.4) |
| Ink Viscosity(mPa.s) | 3~4 |
Printing Process
Simple Operation And Convenient Printing
Color Channel for Design Spot
Create spot color channels using a variety of design applications.
Drawing Software RIP
Utilize RIP software; spot color and color are RIP out.
Drying While Printing And Powdering
DTF Fluorescent printing, dusting, drying, and automatic winding are all integrated processing steps.
Pressing of Garments
The printed PET film will either be manually or mechanically cut, hot pressed, and torn before being considered complete.
Applications
Widely used in any fabric, Tshirt, hoddies, Hats, sports dress, Leather,bag, shoes,Canvas,Mask,Socks,Glove,Acraf,Toys,Underwear, Swimsuit,Craft,Lable marking……
DTF Accessories
DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.
DTF PET Films
DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.

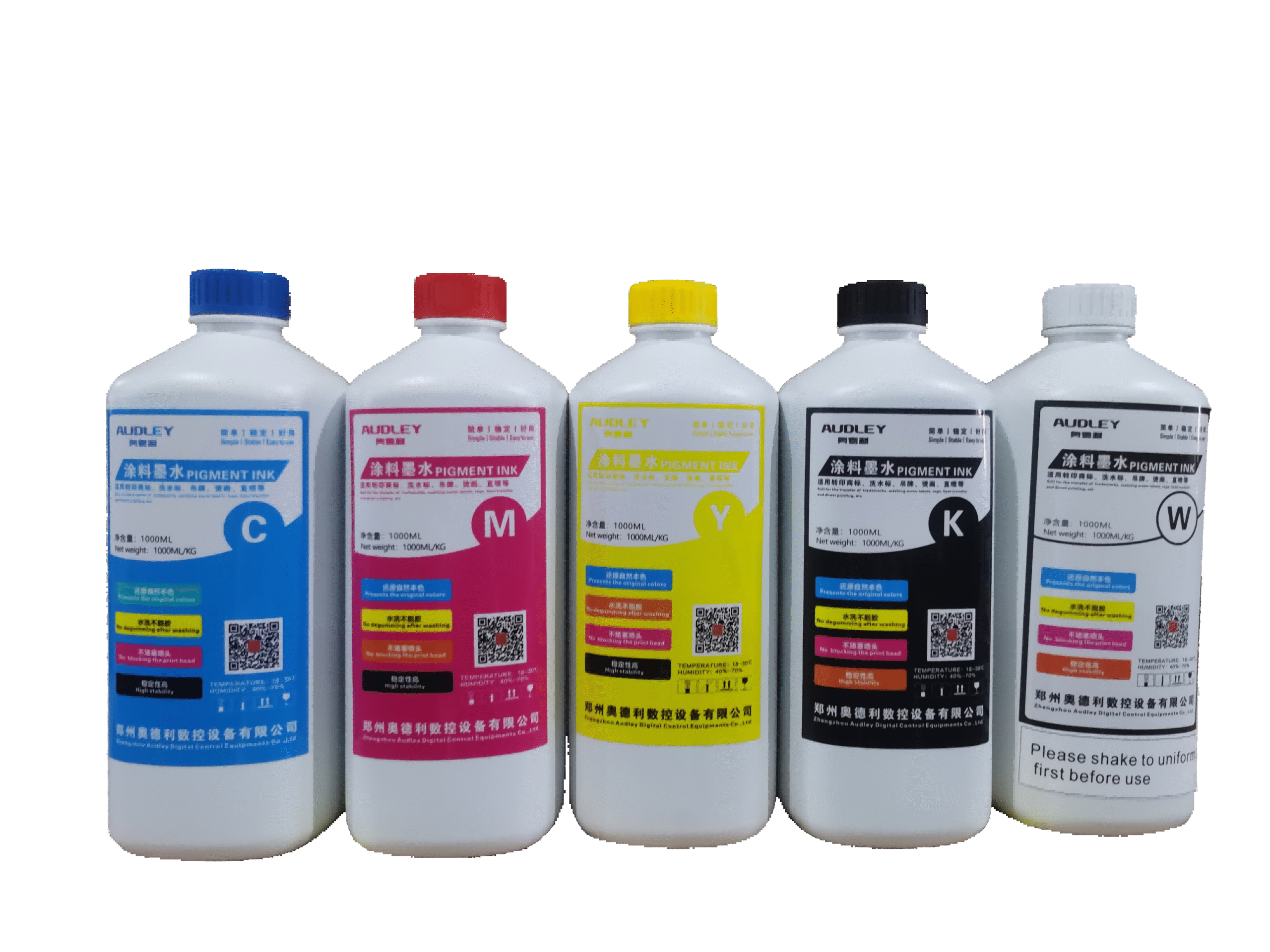

DTF Textile Printing Ink
DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
DTF Hot Melt Powder
DTF printing is a new multifunctional printing technology, suitable for almost all types of fabrics. Works on both white and dark textiles. No pre-treatment is required.T-Shirts & Sweatshirts、Hoodies & Pullovers、Pants & Leggings、Canvas & Denim、Hats、Bags
Shoesand more……
