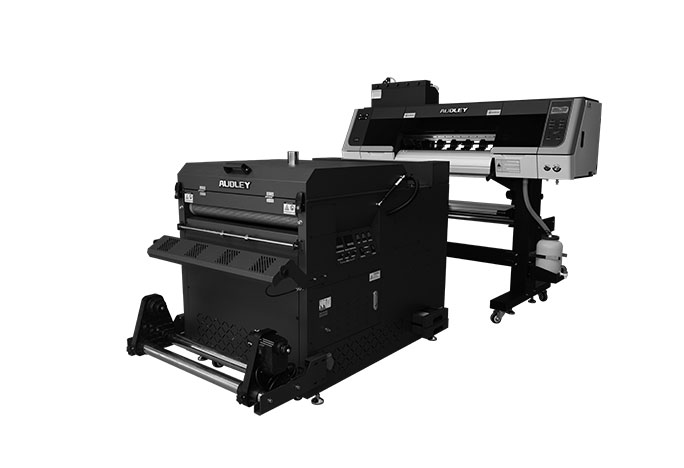

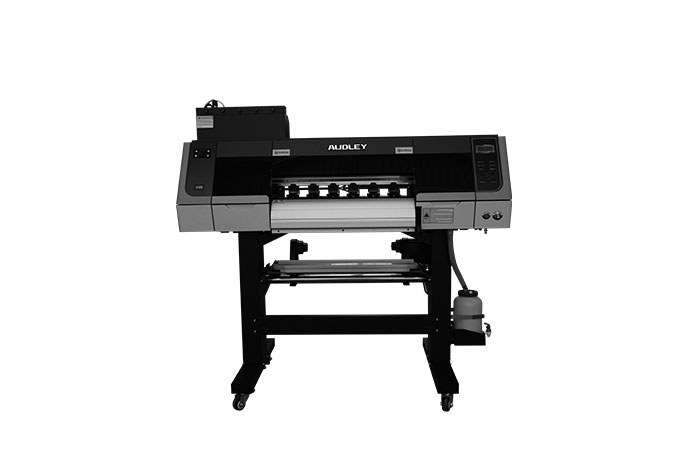

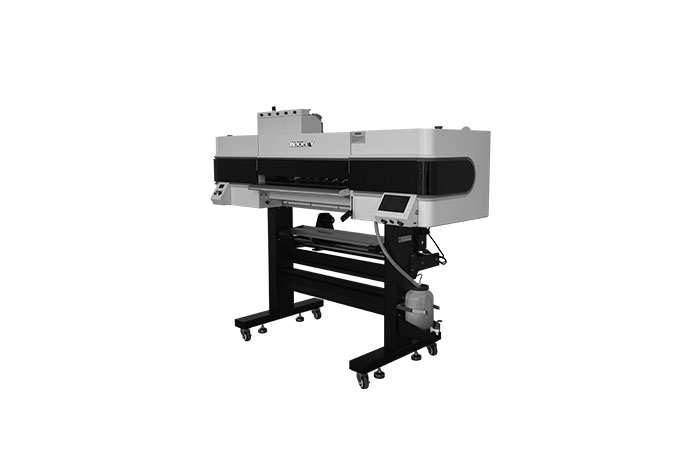

8072-3 2 Head DTF Printer
New technology innovation！！！

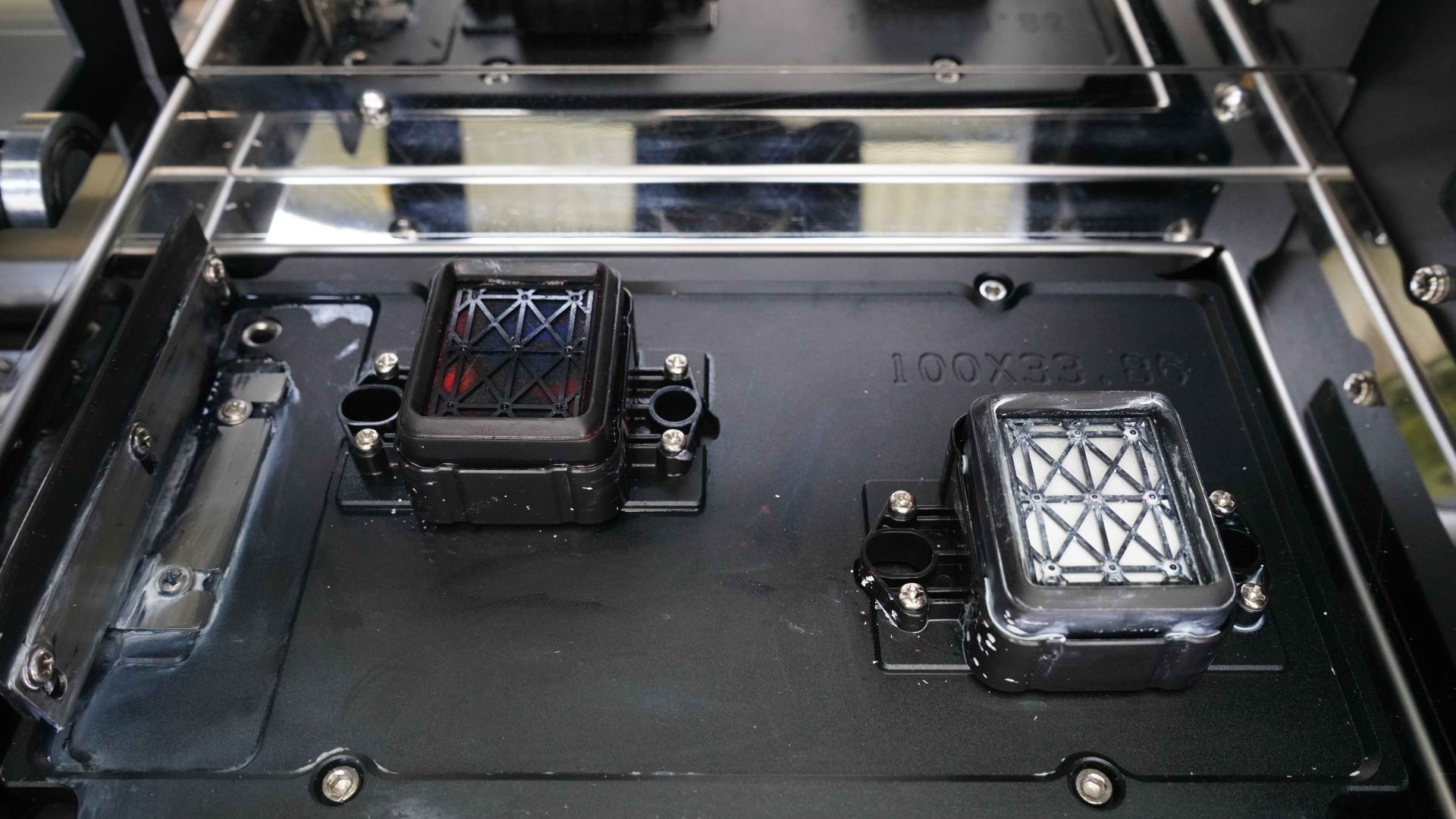

New model DTF printer. The automatic maintenance function is realized, the print head will be cleaned regularly and the white ink stirring system will be turned on, so that your vacation will have no worries and It can support direct transmission of pictures through mobile phones and printing by printers.
- Package Size 198*71*76cm（Printer）
- Weight 199KG（Printer）
*Warranty: 1 year, print head and ink road have no warranty
Technical Parameters
1 year, print head and ink road have no warranty

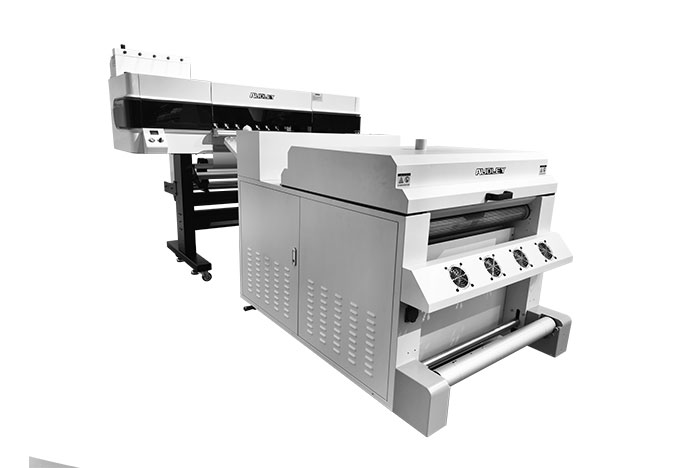

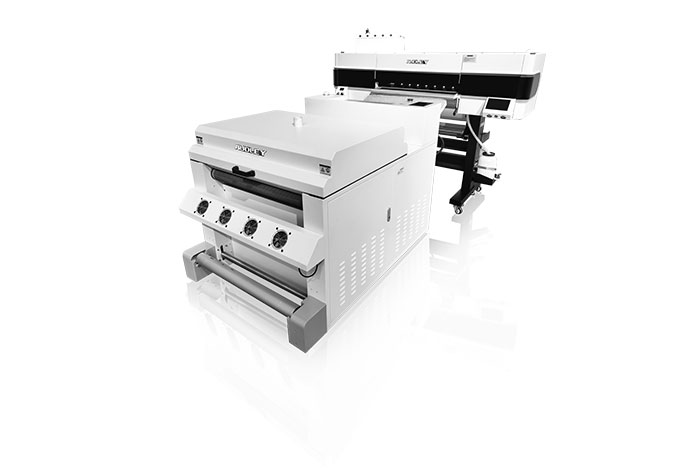

| Tem | DTF Printer+Powder shaking Machine+Flatbed Transfer Machine | Powder Shaking Machine | |
| Suitable for | All Fabric | Rated Power | 4500W |
| Print Head | 2 Eps 4720/i3200 Heads | Power Supply | 110V/ 220V, 50HZ/60HZ |
| Head Nozzle | 4*800 | Package Size | 190*110*120 cm |
| Head Resolution | 3200 DPI | ||

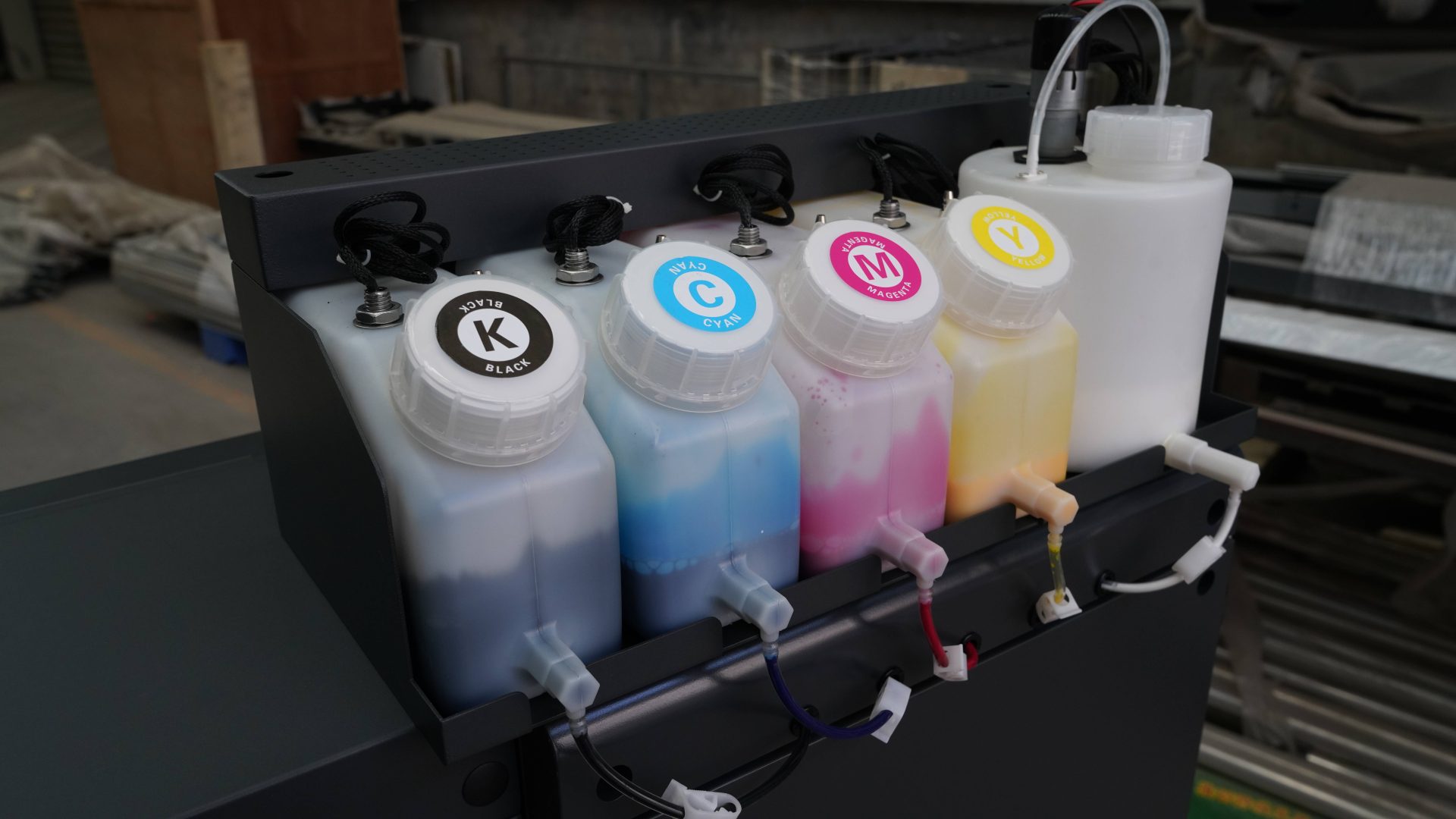

| 5 Based Pigment Ink | Cyan, Magenta, Yellow, blacK+White Pigment Ink | ||

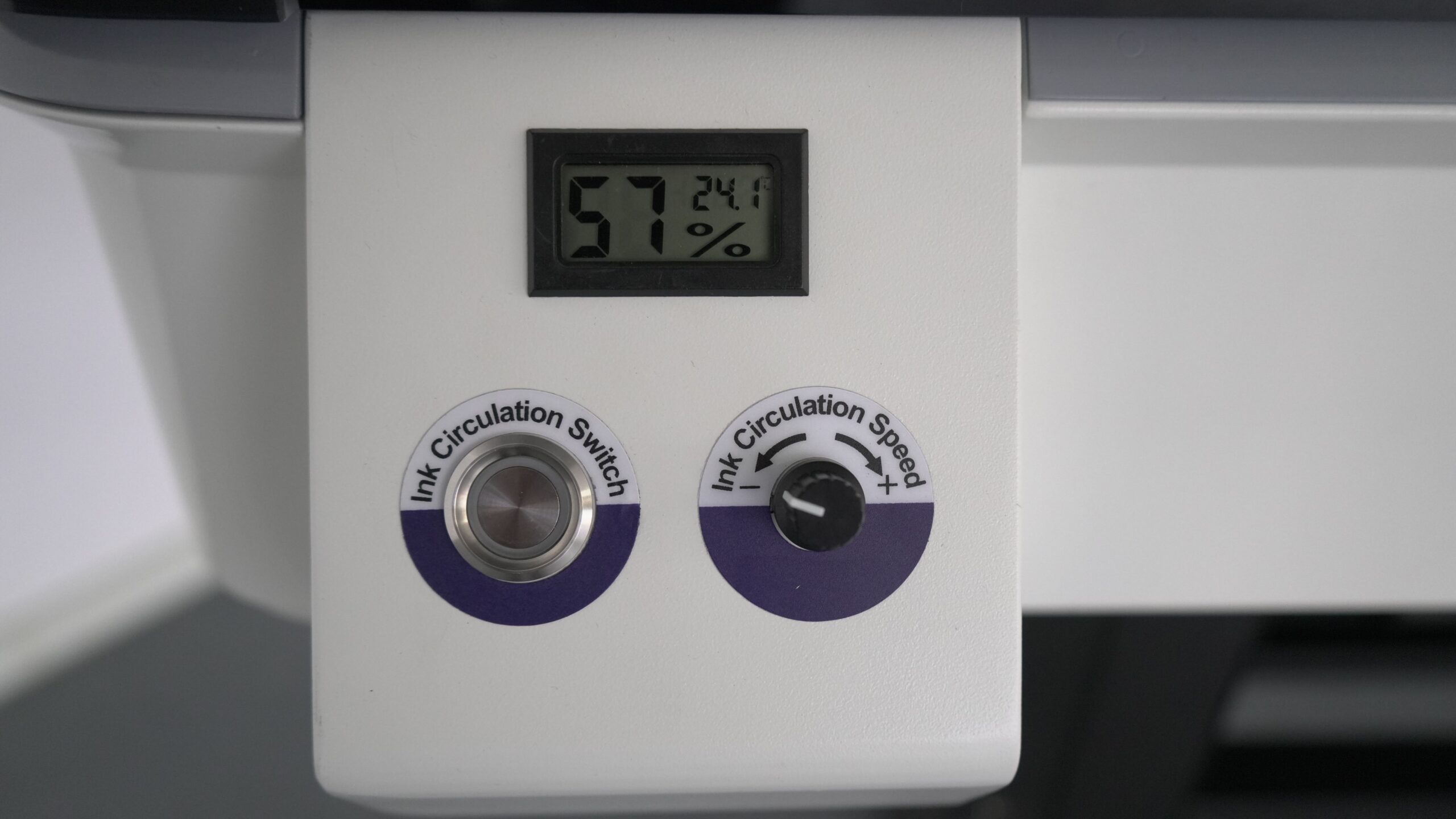

| White Pigment Ink | White Ink Circulation System | ||
| Print Speed | 4 Pass 30sqm/hour | ||
| 6 Pass 25 sqm/hour | |||
| 8 Pass 15 sqm/hour | |||
| Package Size | 210*88* 82cm | ||

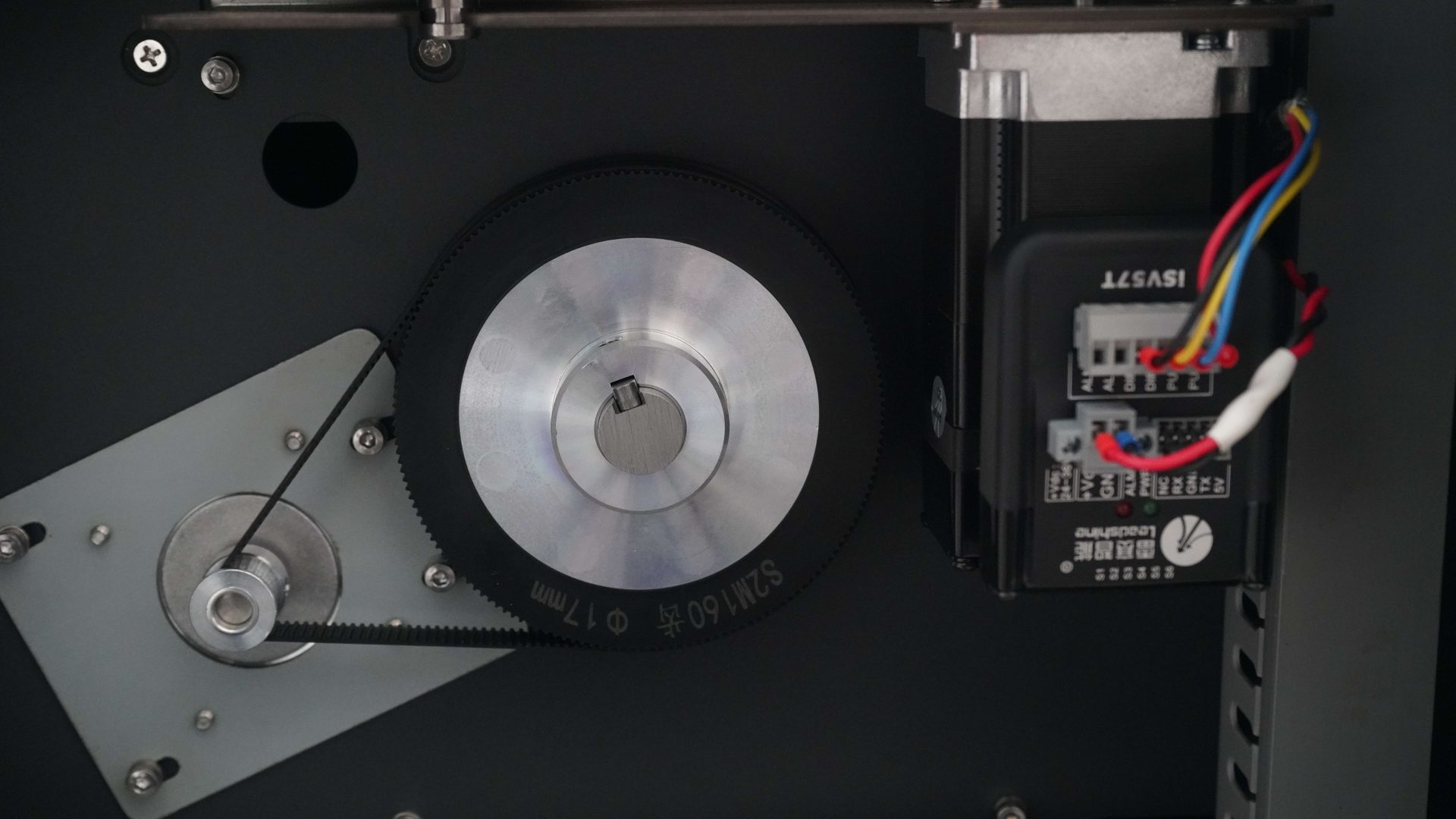

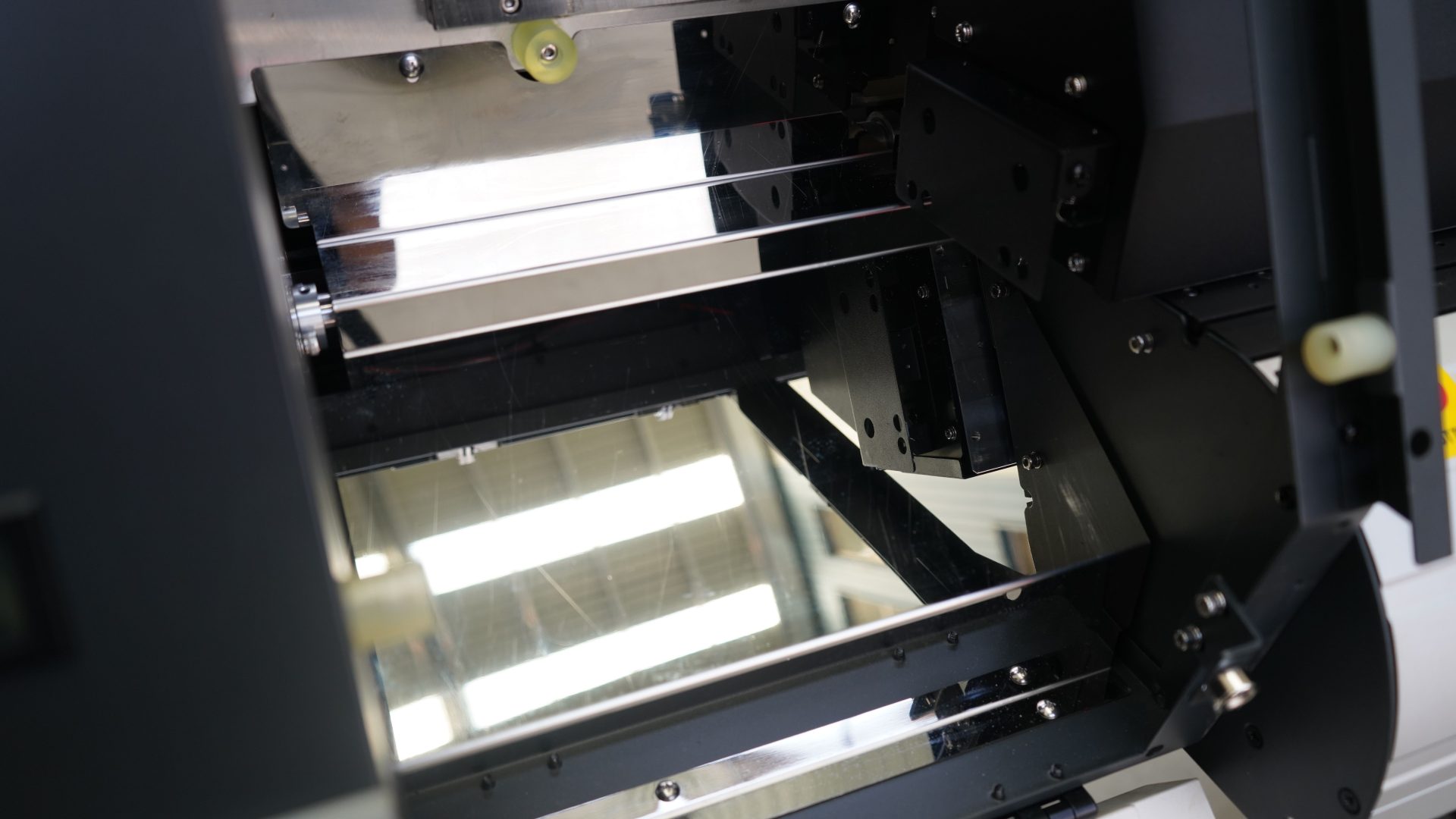

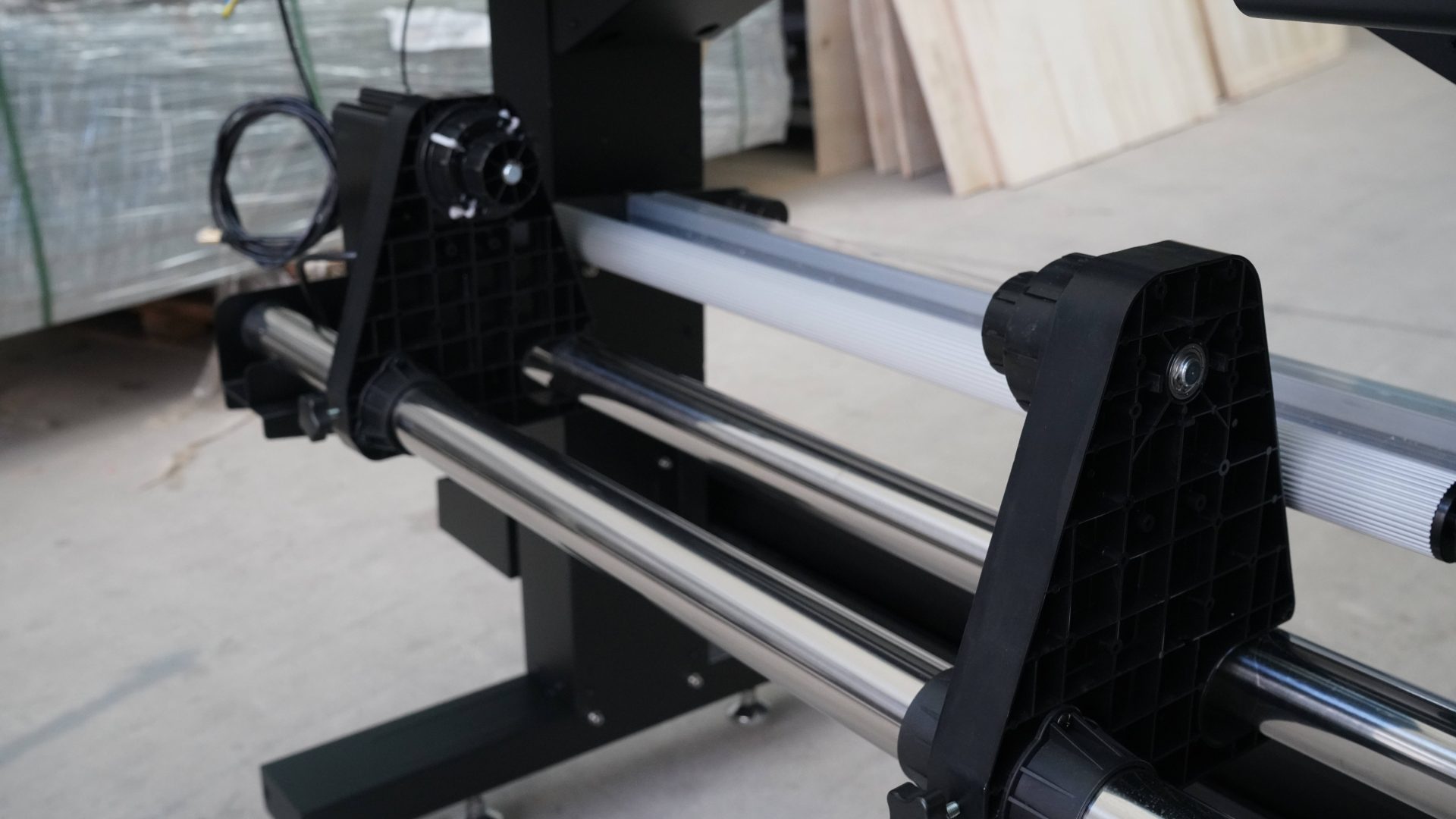

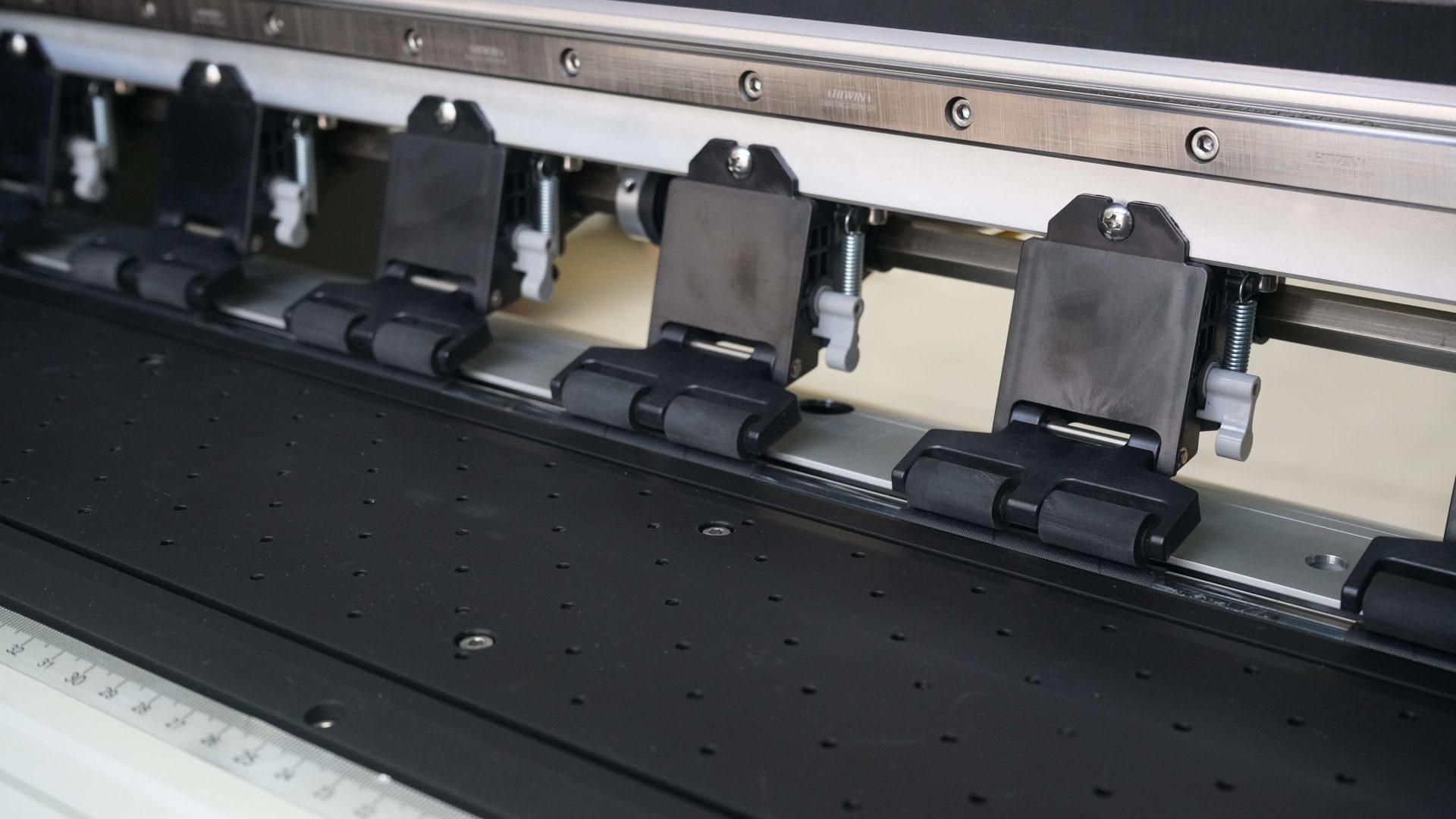

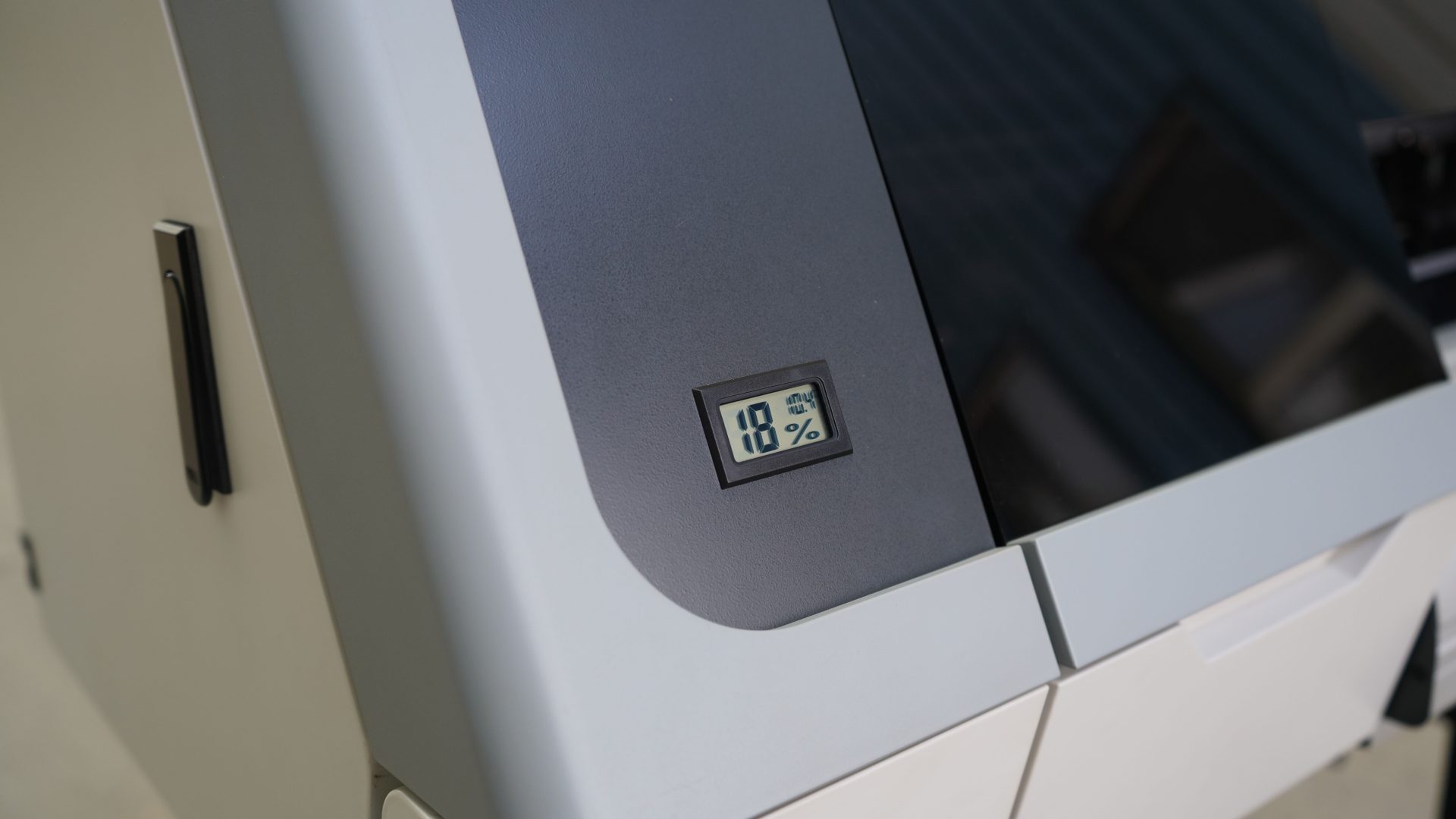

Equipment Details
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.

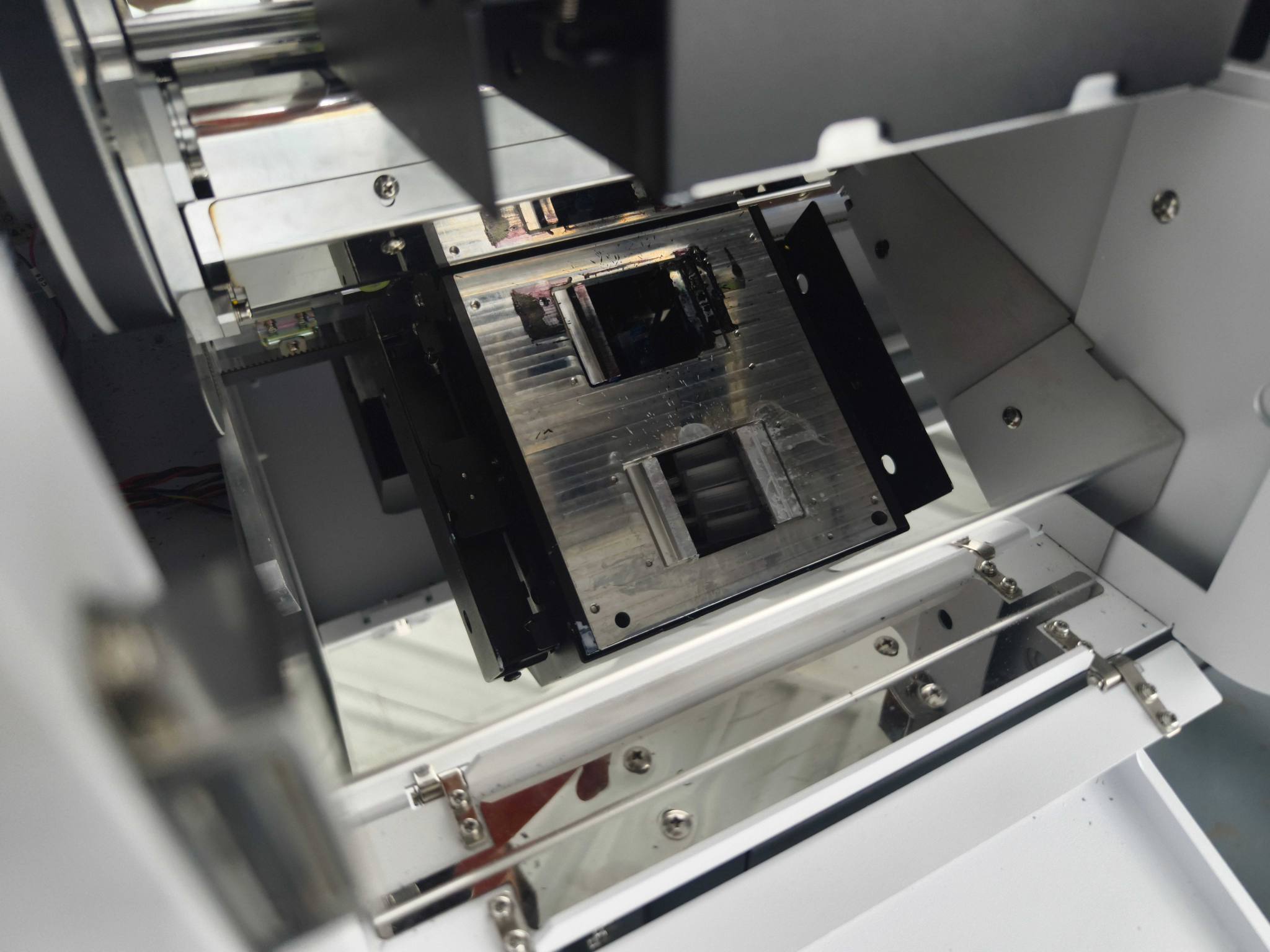

Print Head Configuration

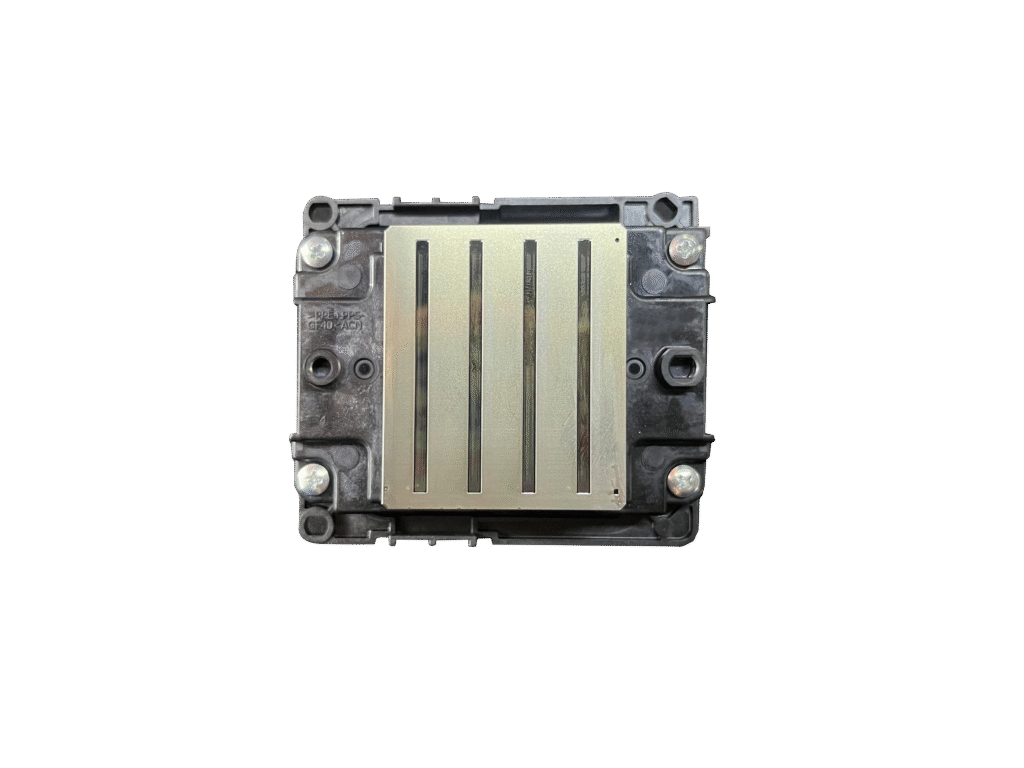

I3200 print head Parameter
DTF Printer I3200 print head Parameter
| Model | I3200-A1 |
| Ink Types | Water based ink |
| Size(width x depth x height)(mm) | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Nozzle Numbers | 3200 |
| Length Between Nozzles(inch) | 1/300(in one row) |
| Nozzle Row | 8 row |
| Max color/head | 4 colors |
| Resolution | 300 npi/1 row 600 npi/2 rows |
| Effective Printing Width(mm) | 33.8 |
| Jet Freqency(kHz) | 43.2 (single dot), 21.6 (multi dot) |
| Ink Drops(pl) | 3.8-6-12(9.4) |
| Ink Viscosity(mPa.s) | 3~4 |
Printing Process
The DTF printer has the characteristics of fast printing speed, high color restoration,and excellent printing precision. lt is mostly used for small-batch production.lts advantages such as simple operation and relatively low cost are very suitable for entrepreneurs.
Color Channel for Design Spot
Create spot color channels using a variety of design applications.
Drawing Software RIP
Utilize RIP software; spot color and color are RIP out.

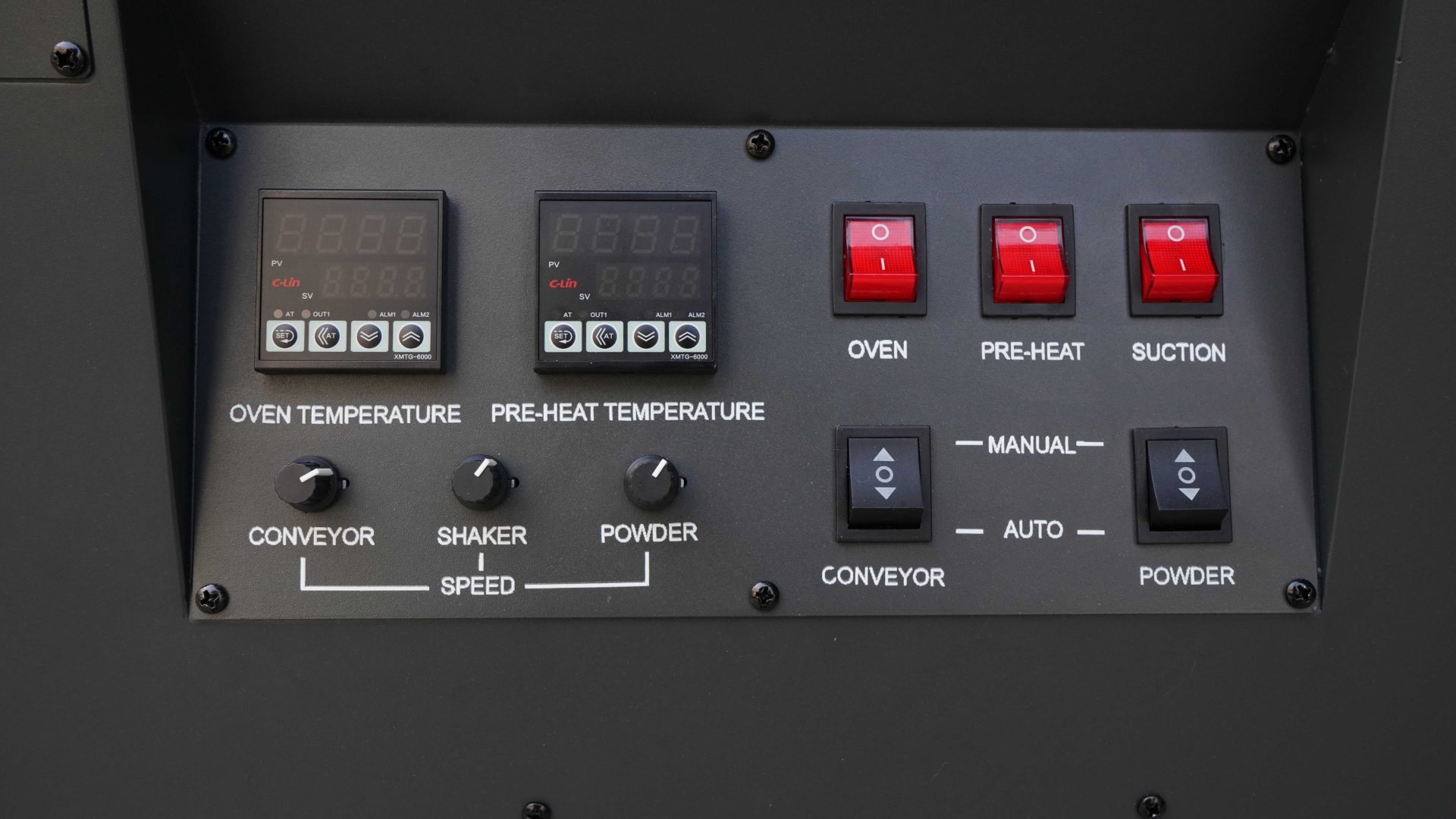

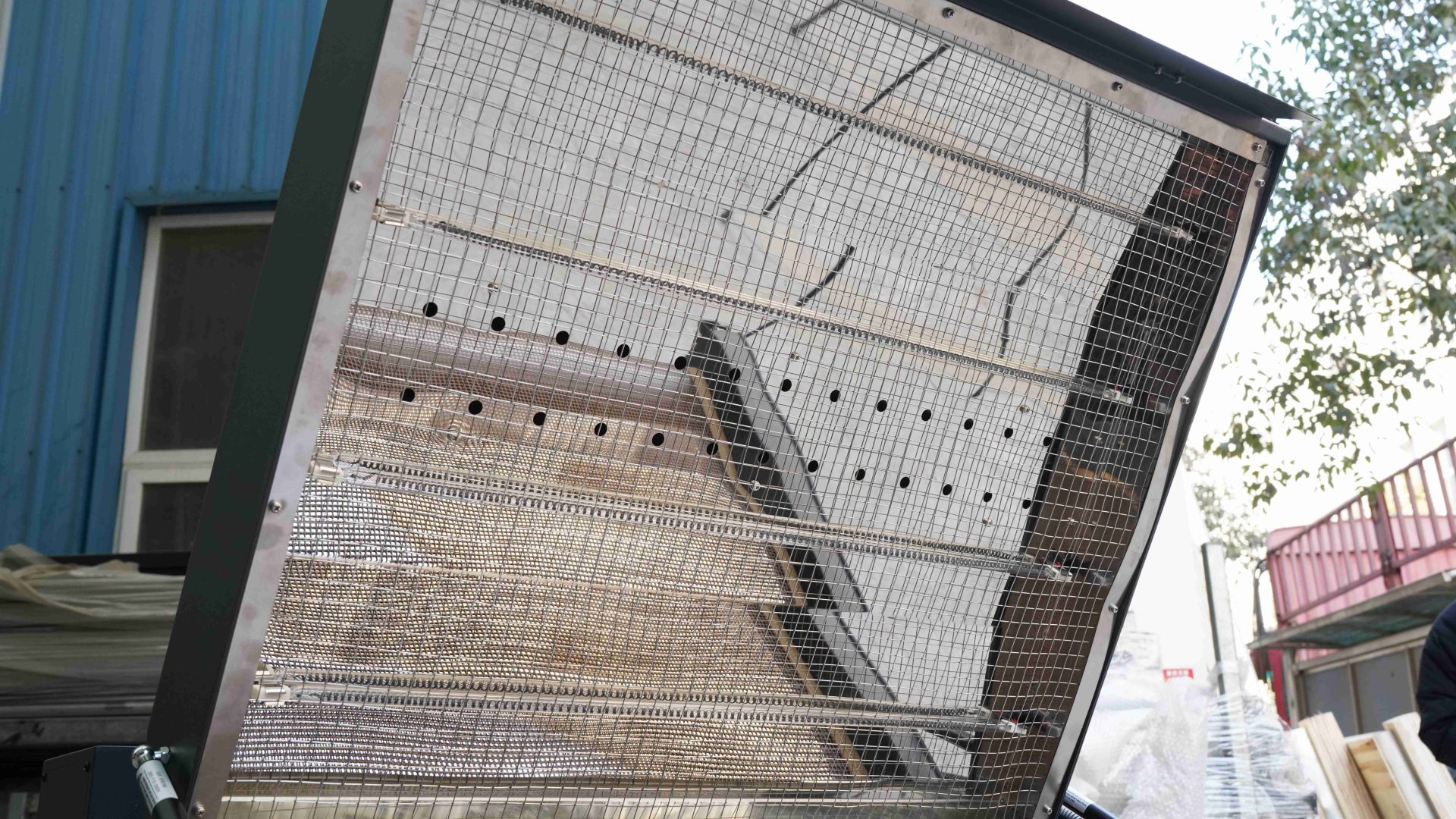

Drying While Printing And Powdering
DTF Fluorescent printing, dusting, drying, and automatic winding are all integrated processing steps.
Pressing of Garments
The printed PET film will either be manually or mechanically cut, hot pressed, and torn before being considered complete.
Applications
Widely used in any fabric, Tshirt, hoddies, Hats, sports dress, Leather,bag, shoes,Canvas,Mask,Socks,Glove,Acraf,Toys,Underwear, Swimsuit,Craft,Lable marking……
DTF Accessories
DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.
DTF PET Films
DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
DTF Textile Prinitng Ink
DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
DTF Hot Melt Powder
Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.
