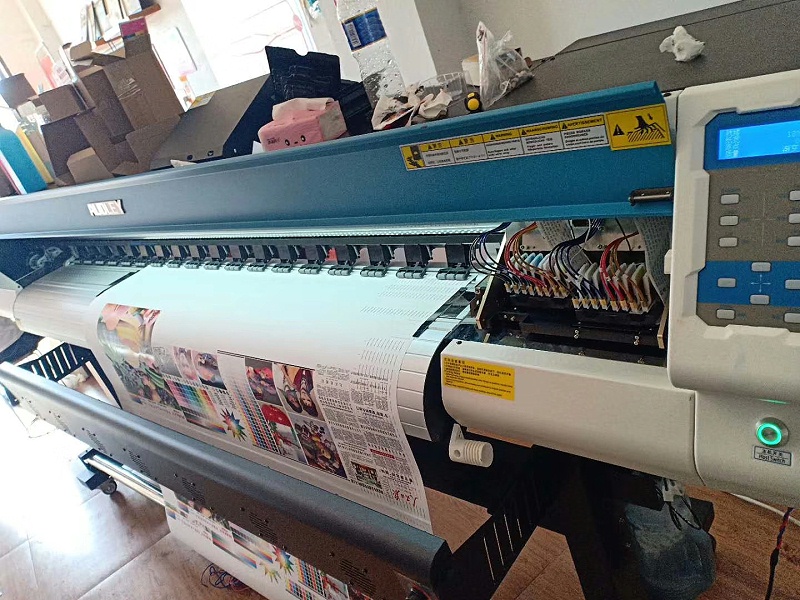

In the process of using the Audley photo machine, the cloth paper is the basic production link, if you do not walk the paper then the photo machine will print errors, so why the photo opportunity does not walk the paper?The following Audley Xiaobian will discuss the reasons and solutions of the photo machine paper jam.
1The stepper motor is faulty
The stepper motor is responsible for the entire paper walking process of the photo machine, when the stepper motor fails, please check the stepper motor and signal line or motherboard, the problems of these accessories will lead to the photo machine stepping does not walk paper, if found, please timely repair or replacement.
2Photo machine paper system is abnormal
Under normal circumstances, when the user prints thin consumables, if the suction of the air platform of the photo machine is too large, it is easy to lead to the problem that the paper of the photo machine is not smooth, please adjust the suction strength in time;
When the photo machine receiving and discharging device fails and does not work, it will also lead to abnormal paper running of the photo machine. Users need to check the paper receiving and discharging system, repair abnormal links or replace faulty parts.
3, paper wheel problem
The press wheel of the photo machine is to ensure that the paper of the photo machine is smooth and not skewed. However, when the paper wheel does not rotate or the pressure is too loose, it will also lead to the photo machine paper is not smooth, and even the situation of no paper. At this time, it is necessary to check whether there is a problem with the paper wheel, and adjust or replace it in time.
4Stepper motor belt problem
The stepper motor relies on the belt to transmit power, if the belt problem is bound to cause the photo machine does not walk paper, then the user needs to check whether the belt is damaged or loose, and adjust it in time.
The solution:
When the photo machine has a paper jam, the indicator light on the operation panel will light up and send an alarm signal to the host. There are many reasons for this failure, such as debris in the paper output path, the rotation failure of the paper roller and other parts, the paper box does not feed the paper, the sensor failure, etc. The method of eliminating this failure is very simple, just open the cover of the photo machine and remove the paper that is stuck.
If the photo machine often jammed paper, it is necessary to check the paper feed channel, remove the debris on the output path, and the front edge of the paper should be just above the metal plate. The paper roller wear, spring loose, insufficient pressure are the reasons why the paper can not be fed into the machine. When the paper roll is worn and cannot be replaced for a while, the emergency treatment can be carried out by wrapping a rubber band. After winding the rubber band, the friction of rolling paper is increased, and the paper feeding can be restored to normal. In addition, the loading tray is not installed properly, and the paper quality is not good(Too thin, too thick, damp)It will also cause paper jams or failure to take paper.
