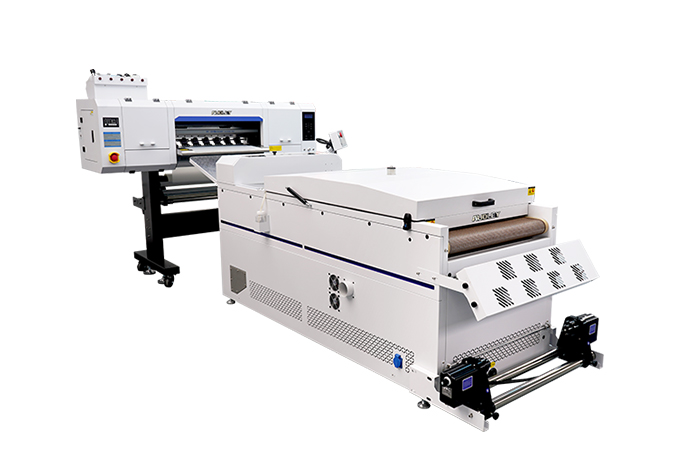

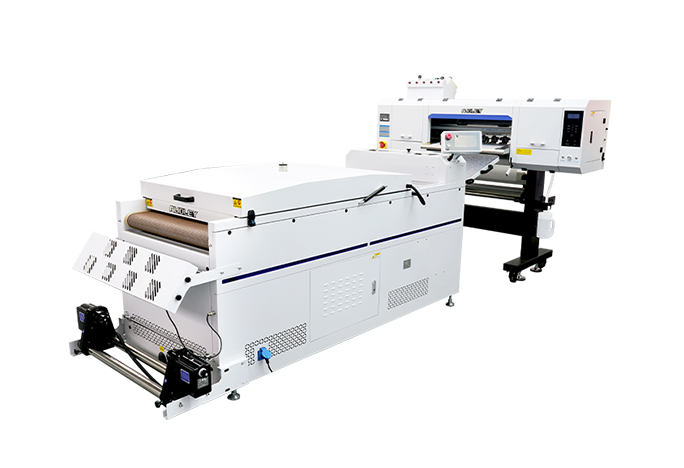

S8074-3 4 Head DTF Printer
This direct to film printer can apply to various garments, such as t-shirt, hoodies, shoes, spandex underwear, shoes, etc.. With Epson print head, it can print smoothly for your garments or DTF business.
- Package Size 210*88*75cm,
- Gross Weight 235KGS (Old Version)
- Gross Weight 235KGS (Old Version)
*Warranty: 1 year, print head and ink road have no warranty
Technical Parameters
1 year, print head and ink road have no warranty
| Printer Model | S8074-3 | ||
| Print head | 4 head Epson i3200-A1 | Powder shaker model | DF-800L(A) |
| Board | Hoson board | Working width | Less than 60cm |
| Speed | 4pass:26sqm/h | Heating tube | 10PCS*805MM(500W/pcs) |
| 6pass:18sqm/h | |||
| 8pass:12sqm/h | |||
| Working size | Less than 60cm | Power | 5800w |
| Ink | Pigment ink (CMYK+White) | Packing size | 230*76*87cm(Printer) |
| 231*115*128cm(Shaker) | |||
| Voltage | 220V 50HZ/60HZ(Standard) | ||
| Working environment | Temperature：15℃-30℃ | Weight | 275KG(Printer) |
| 381KG(Shaker) | |||
| Power | 1500W | ||
Equipment Details
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.
Teflon belt Moving system with suction

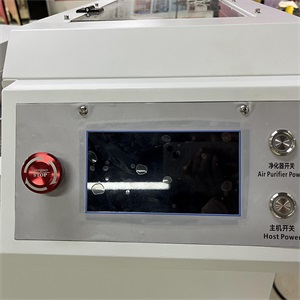

Touch-screen control
panel

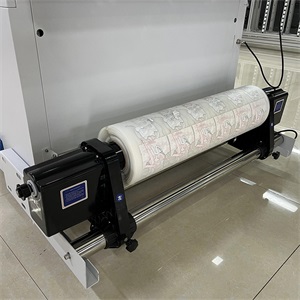

Automatic film receiver system

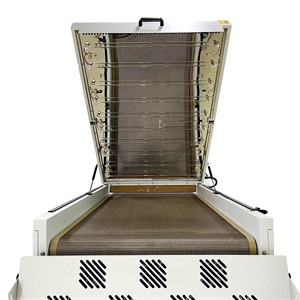

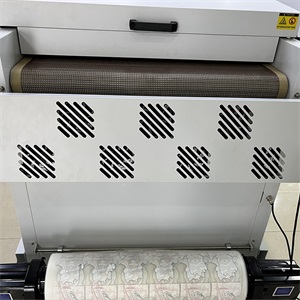

Intelligentdrying system

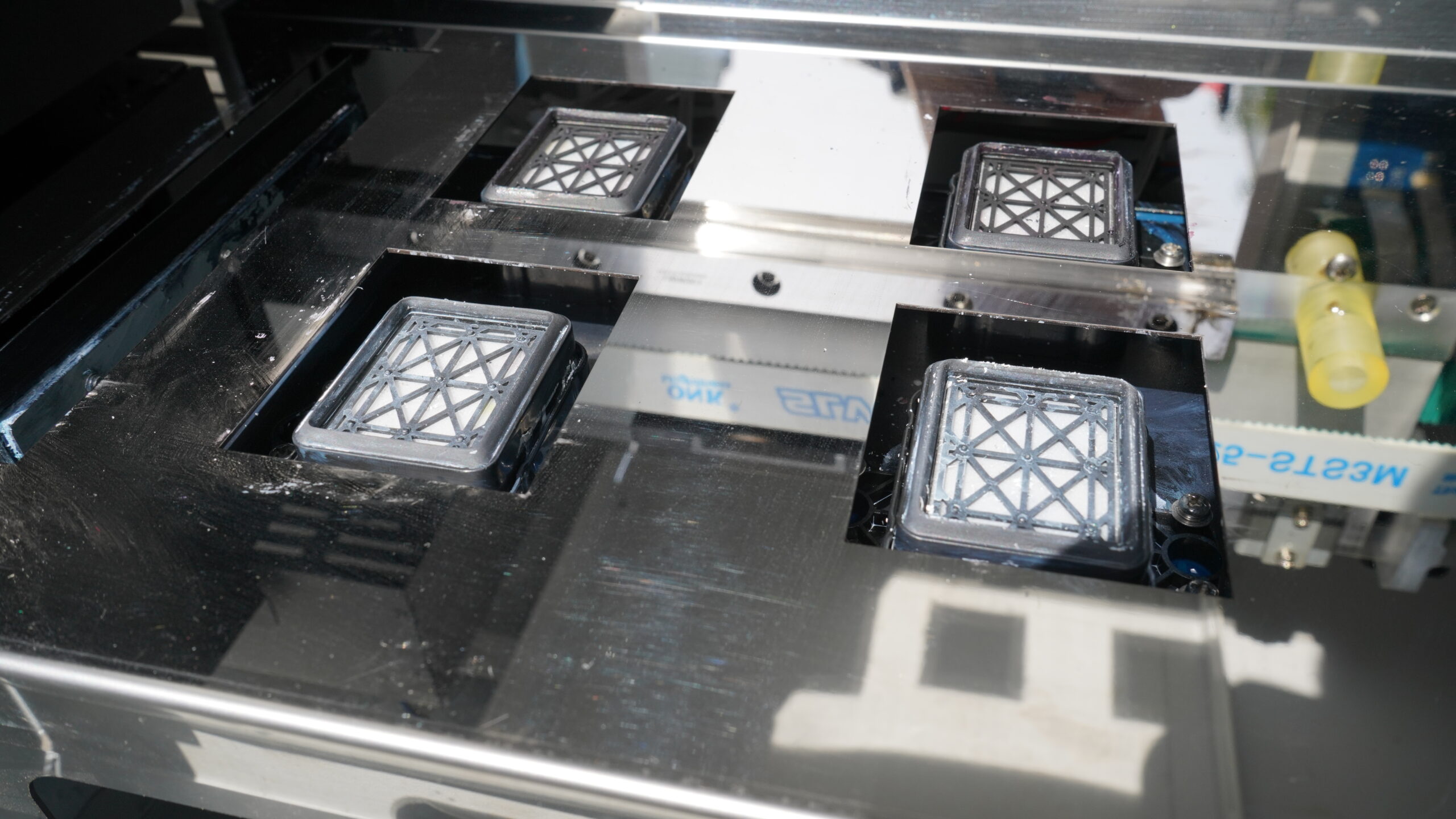

High precision
machinery ink
station

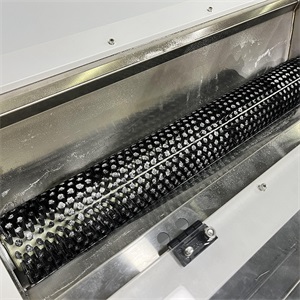

Automatic powder feeding system

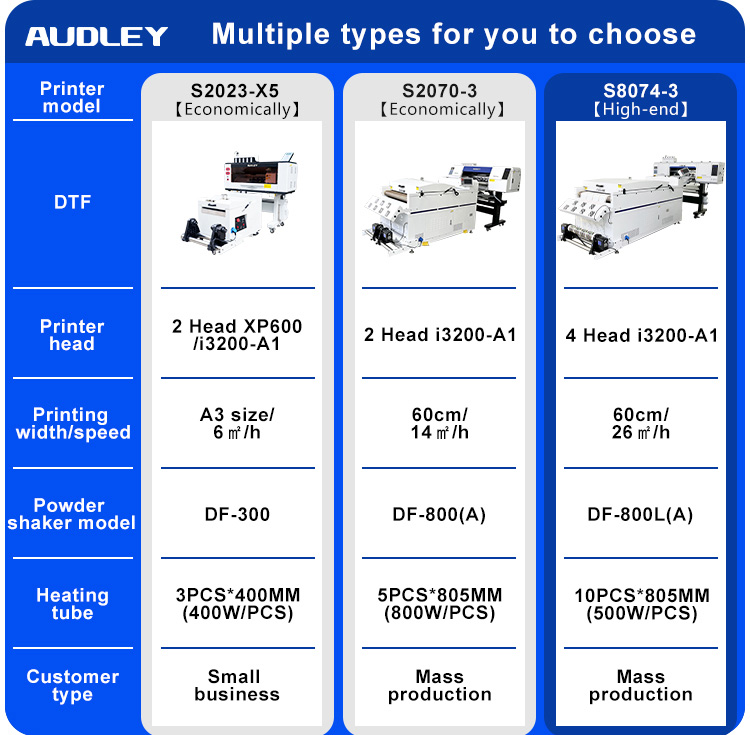

Multiple types for you to choose
Printing Process
The DTF printer has the characteristics of fast printing speed, high color restoration,and excellent printing precision. lt is mostly used for small-batch production.lts advantages such as simple operation and relatively low cost are very suitable for entrepreneurs.
Color Channel for Design Spot
Create spot color channels using a variety of design applications.
Drawing Software RIP
Utilize RIP software; spot color and color are RIP out.
Drying While Printing And Powdering
DTF Fluorescent printing, dusting, drying, and automatic winding are all integrated processing steps.
Pressing of Garments
The printed PET film will either be manually or mechanically cut, hot pressed, and torn before being considered complete.
Applications
Widely used in any fabric, Tshirt, hoddies, Hats, sports dress, Leather,bag, shoes,Canvas,Mask,Socks,Glove,Acraf,Toys,Underwear, Swimsuit,Craft,Lable marking……
DTF Accessories
DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.
DTF PET Films
DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.

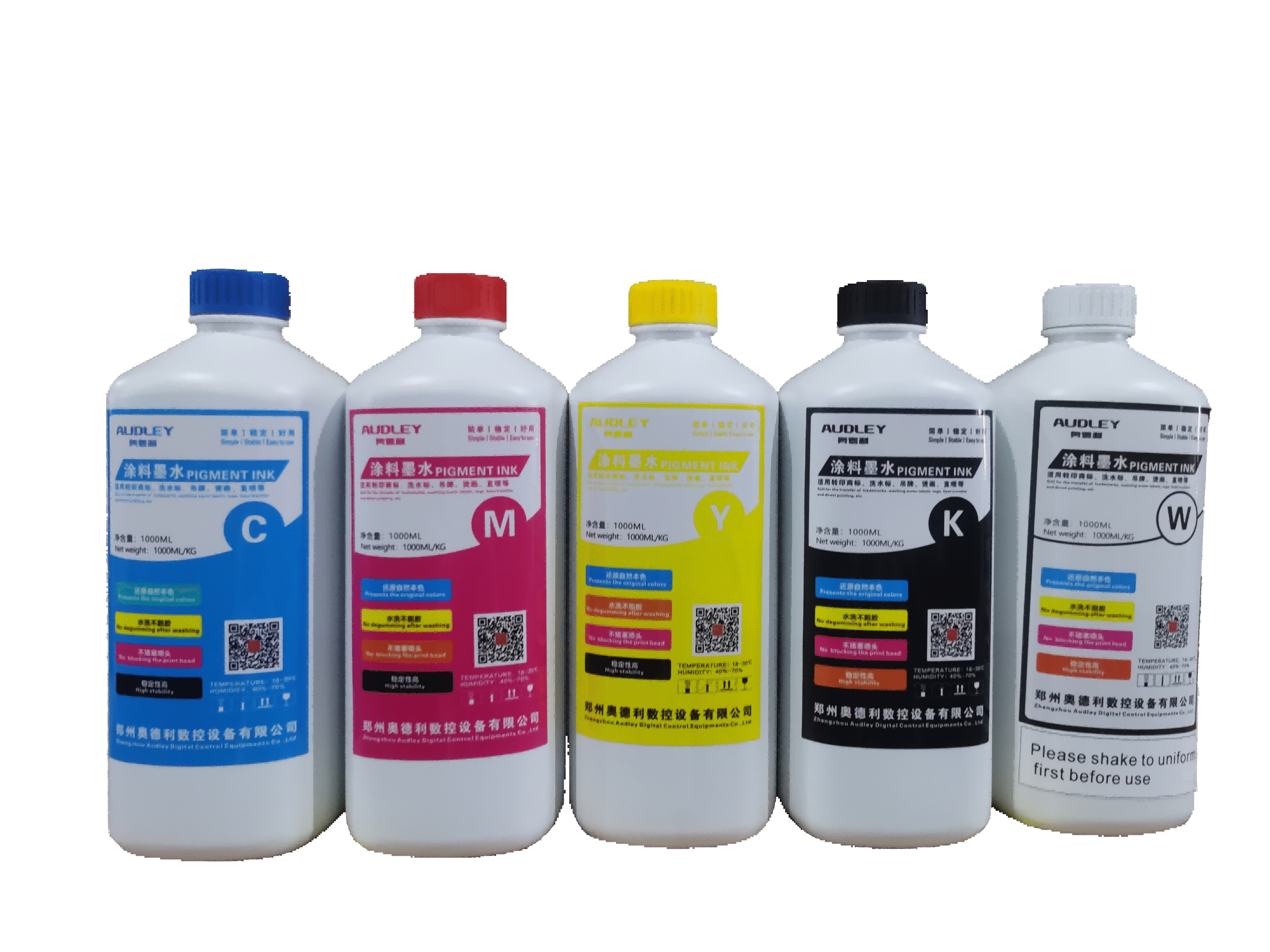

DTF Textile Printing Ink
DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
DTF Hot Melt Powder
Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.
