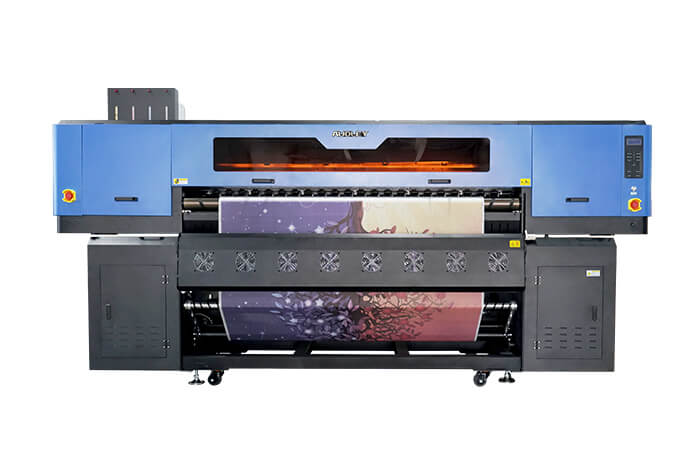

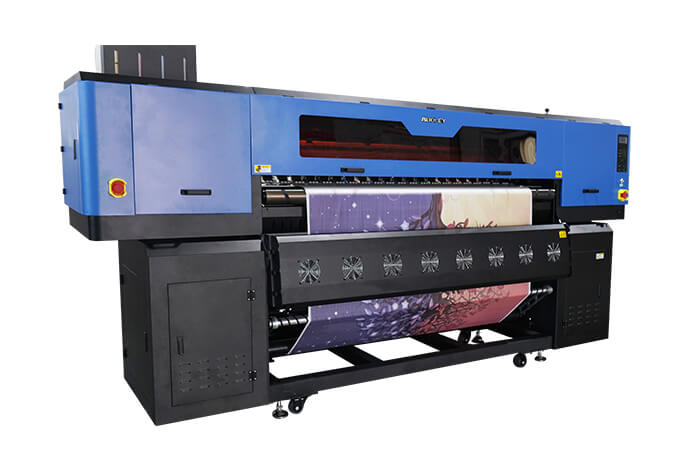

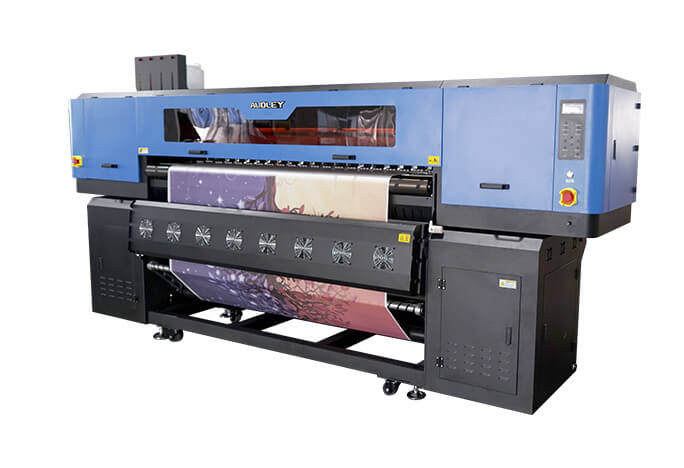

F1908 Sublimation Textile Printer
High-Quality Printing: This industrial sublimation paper printer is designed to deliver high-quality prints with a resolution of 3200dpi, ensuring vibrant colors and crisp details.
Multi-Color Capability: With CMYK ink color, this printer supports multi-color printing, allowing users to print various designs and patterns on fabrics, papers, and other materials.
- Package Size 389*190*135cm
- Weight 1100KG
- Power Machine 7.5kw+heating 5KW
*Warranty: 1 year, print head and ink road have no warranty
Technical Parameters
1 year, print head and ink road have no warranty
| Printer | F1908 |
| Print head | 8 head Eps i3200-A1 |
| Print width | 1900mm |
| Speed | 1Pass:320sqm/h |
| 2Pass:160sqm/h | |
| Package size | 389*190*135cm |
| Weight | 1100KG |
| Power | Machine 7.5kw+heating 5KW |
| Ink bottle | 4000ML*4 |
| Printing material | Sublimation paper(Diameter 250 mm weight about 180KG) |
| Voltage | 220V/110V 50HZ/60HZ (Standard) |
| Ink | C/M/Y/K |
| Damper heating | Equipped |
| Warranty | 1 Year （Except Print head and Ink System |

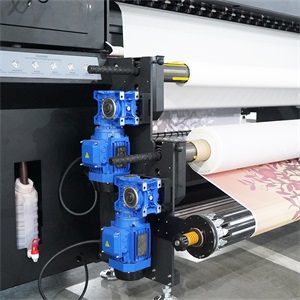

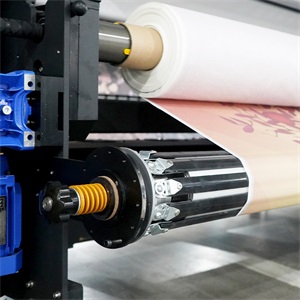

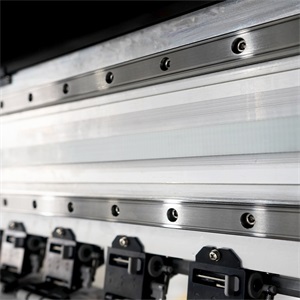

Equipment Details

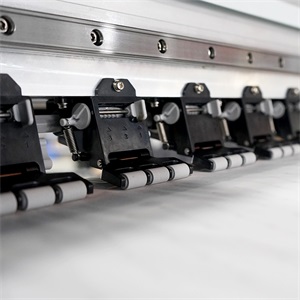

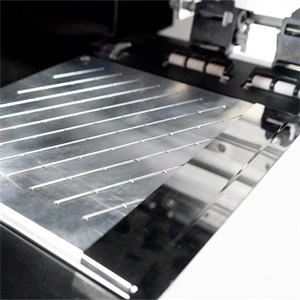

State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.

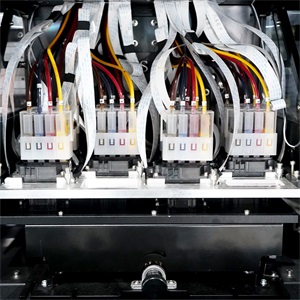

Print Head Configuration

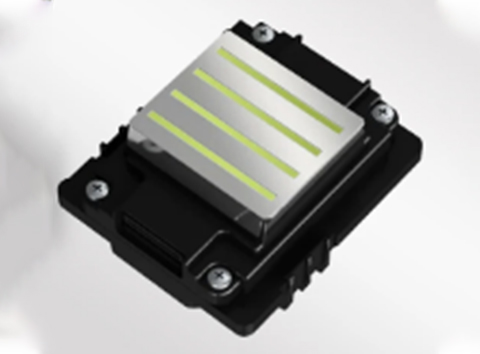

I3200 Print Head
Sublimation printer uses Epson I3200 print heads. Epson I3200 head has 3200 nozzles, the resolution is higher than DX5 and xp600, and the color saturation, printing speed, and printing accuracy are better ,very cost-effective.
I3200 head print head Parameter
| Model | I3200 E1/U1 |
| Ink Types | Eco solvent ink , UV ink |
| Size(width x depth x height)(mm) | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Nozzle Numbers | 3200 |
| Length Between Nozzles(inch) | 1/300(in one row) |
| Nozzle Row | 8 row |
| Max color/head | 4 colors |
| Resolution | 300 npi/1 row 600 npi/2 rows |
| Effective Printing Width(mm) | 33.8 |
| Jet Freqency(kHz) | 43.2 (single dot), 21.6 (multi dot) |
| Ink Drops(pl) | 3.8-6-12(9.4) |
| Ink Viscosity(mPa.s) | 3~4 |
Printing Process
DTF STAR IV Desktop A3 DTF printer using Epson I3200 print heads. Epson I3200 head has 3200 nozzles, a resolution of 600dpi, jetting frequency is higher than DX5 and xp600, and also color saturation, printing speed, and printing accuracy are better, and the price is cheap. Very cost-effective.
Design and type setting ofpatterns through software
Printer coordinates with ink,sublimation paper printer printing

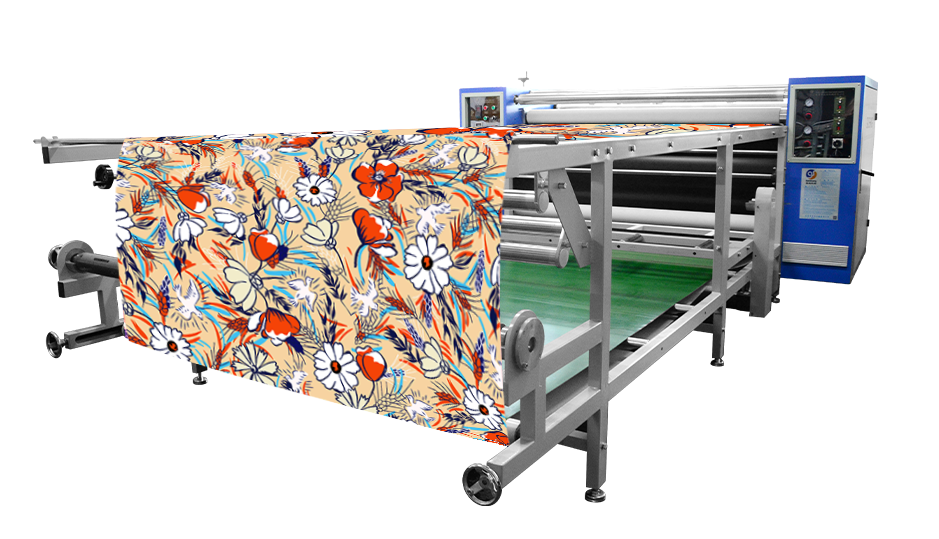

Heat transfer on the polyester fabric
Finished products
Applications
With help of heat transfer machine,pictures can be transferred to many materials, such as polyester,chiffon, silk, and flag banner.
DTF Accessories
DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.

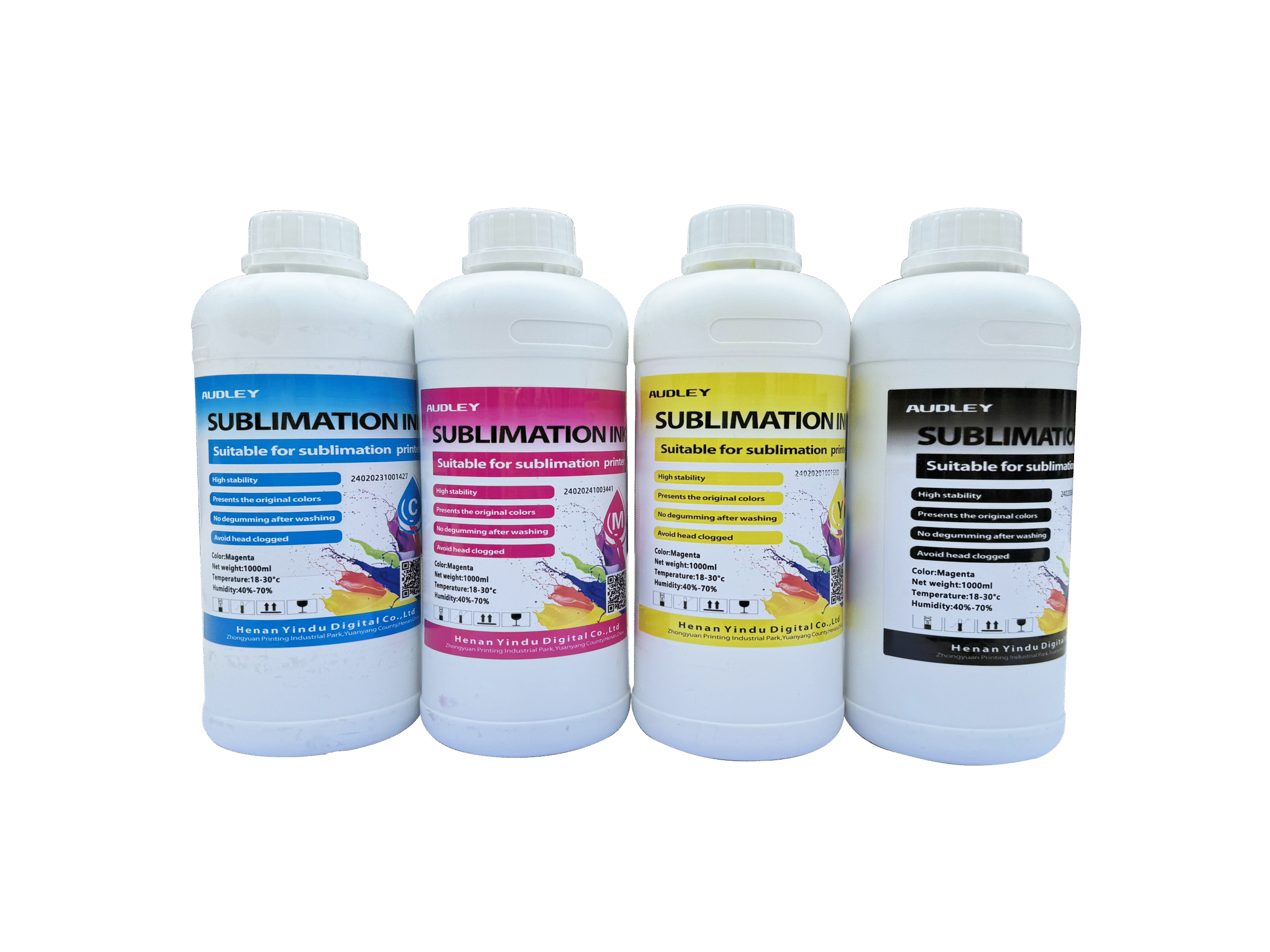

Sublimation Ink
i3200A1 ink is highly compatible with print Epson heads. You can directly print your designs on different materials , it has CMYK color

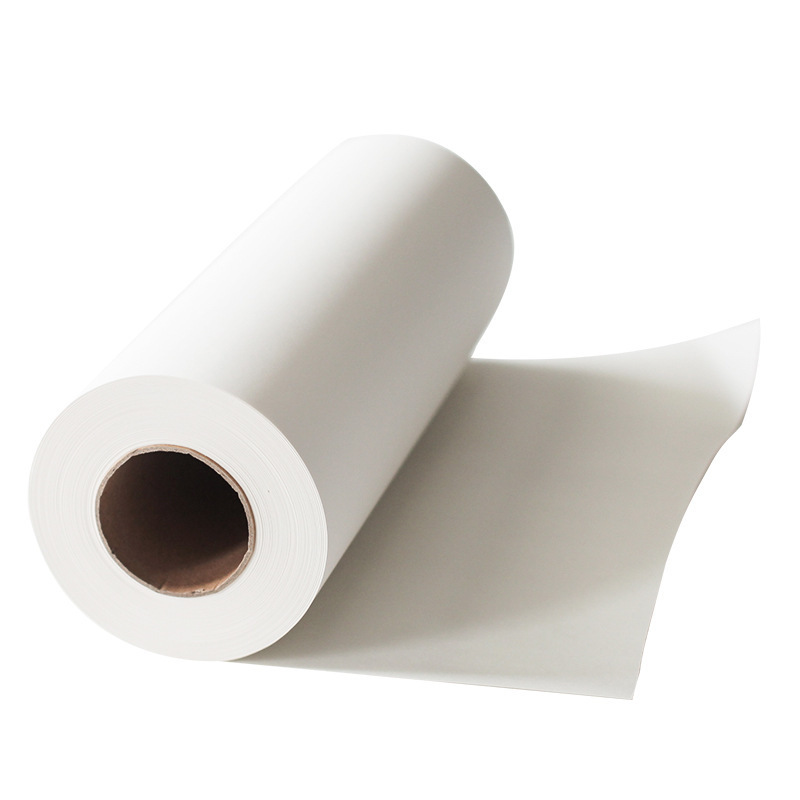

Sublimation Paper
Wrinkle and wave resistant, it can withstand high ink volumes at high printing speeds while maintaining high clarity and color fidelity
