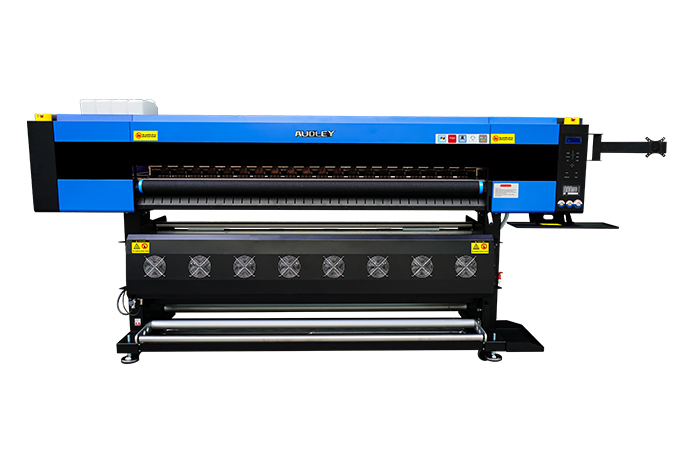

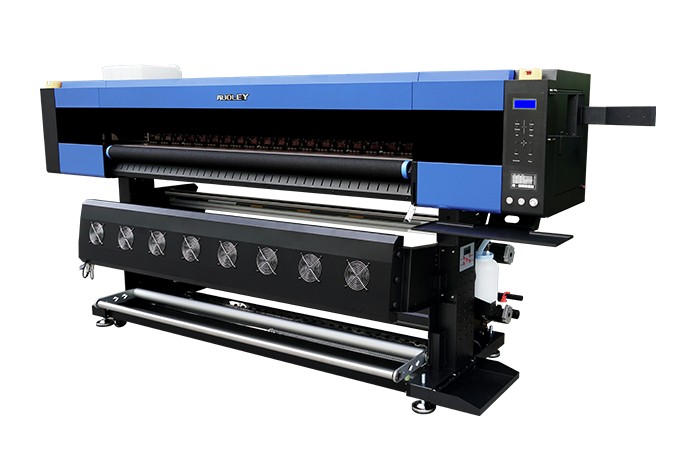

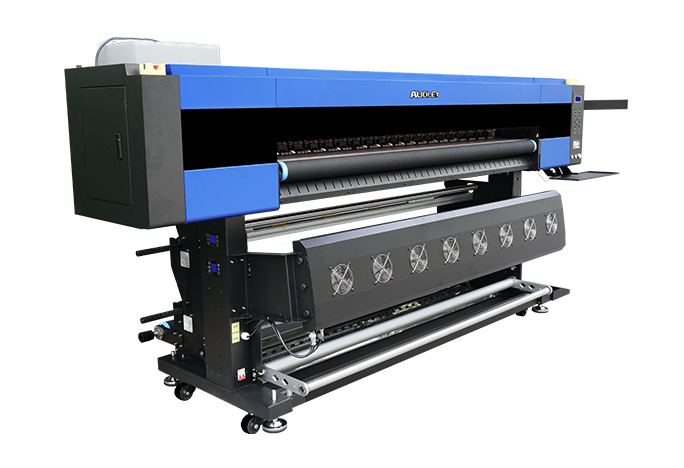

F1904B Sublimation Printer
If you want to print on transfer paper and transfer the image on manyitems such as t-shirts, bed sheets, carpets and so on. Then the Subli-mation Printer F1904B is the right choice for you. What’s more, it can beequipped with 4 most sophisticated industrial Epson i3200 printheads.the perfect color of the sublimation ink, outstanding speed and superbprint quality, which will make your work efficiency increase greatly.
- Package Size 323*113*93cm
- Weight 620 KG
- Rated Power 5000 W
*Warranty: 1 year, print head and ink road have no warranty
Technical Parameters
1 year, print head and ink road have no warranty
| Printer | F1904B/F1906B | ||
| Print head | 4/6 head Epson i3200-A1 | Board | Hoson board |
| Print width | 1900mm | Guide rail | Japan THK high speed silent linear guide |
| Rip software | Riin / Maintop / Photoprint | Weight | 550KG |
| Ink type | Dye sublimation ink | Package size | 323*110*95 cm |
| lnk | C/M/Y/K | Power | Machine 1.5KW+heating 3.4KW(Standard) +heating 3.4KW(Optional) |

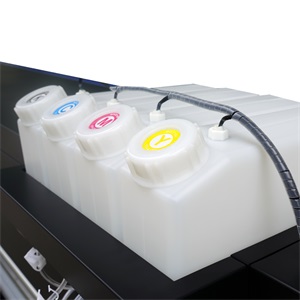

| Ink bottle | 2500ML*4+(220ml*4) | Voltage | 220V 50HZ/60HZ(Standard) |
| Printing material | Sublimation paper( Diameter 270mm and weight about 65KG) | Heating | Upper heating, Side heating, Bottom heating, three parts |

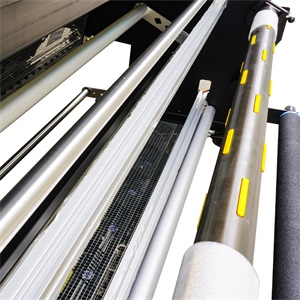

Equipment Details
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.

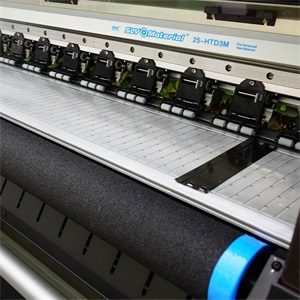

Print Head Configuration
I3200 Print Head
Sublimation printer uses Epson I3200 print heads. Epson I3200 head has 3200 nozzles, the resolution is higher than DX5 and xp600, and the color saturation, printing speed, and printing accuracy are better ,very cost-effective.
I3200 head print head Parameter
| Model | I3200 E1/U1 |
| Ink Types | Eco solvent ink , UV ink |
| Size(width x depth x height)(mm) | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Nozzle Numbers | 3200 |
| Length Between Nozzles(inch) | 1/300(in one row) |
| Nozzle Row | 8 row |
| Max color/head | 4 colors |
| Resolution | 300 npi/1 row 600 npi/2 rows |
| Effective Printing Width(mm) | 33.8 |
| Jet Freqency(kHz) | 43.2 (single dot), 21.6 (multi dot) |
| Ink Drops(pl) | 3.8-6-12(9.4) |
| Ink Viscosity(mPa.s) | 3~4 |
Printing Process
Four head sublimation printer high-definition printing, strongstability, simple operation, wide range of applications, to meet your printing needs.
Design and type setting ofpatterns through software
Printer coordinates with ink,sublimation paper printer printing
Heat transfer on the polyester fabric
Finished products
Applications
With help of heat transfer machine,pictures can be transferred to many materials, such as polyester,chiffon, silk, and flag banner.
Sublimation Printer Accessories
Sublimation printer Accessories including sublimation ink
Sublimation Ink
i3200A1 ink is highly compatible with print Epson heads. You can directly print your designs on different materials , it has CMYK color
Sublimation Paper
Wrinkle and wave resistant, it can withstand high ink volumes at high printing speeds while maintaining high clarity and color fidelity
