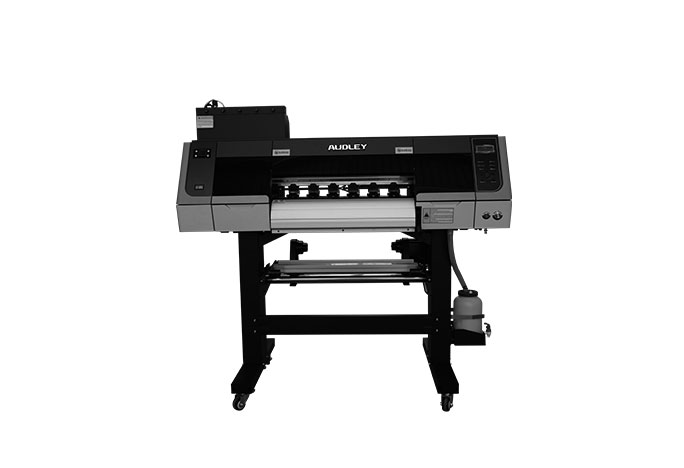

E2070-3 2 Head DTF Printer

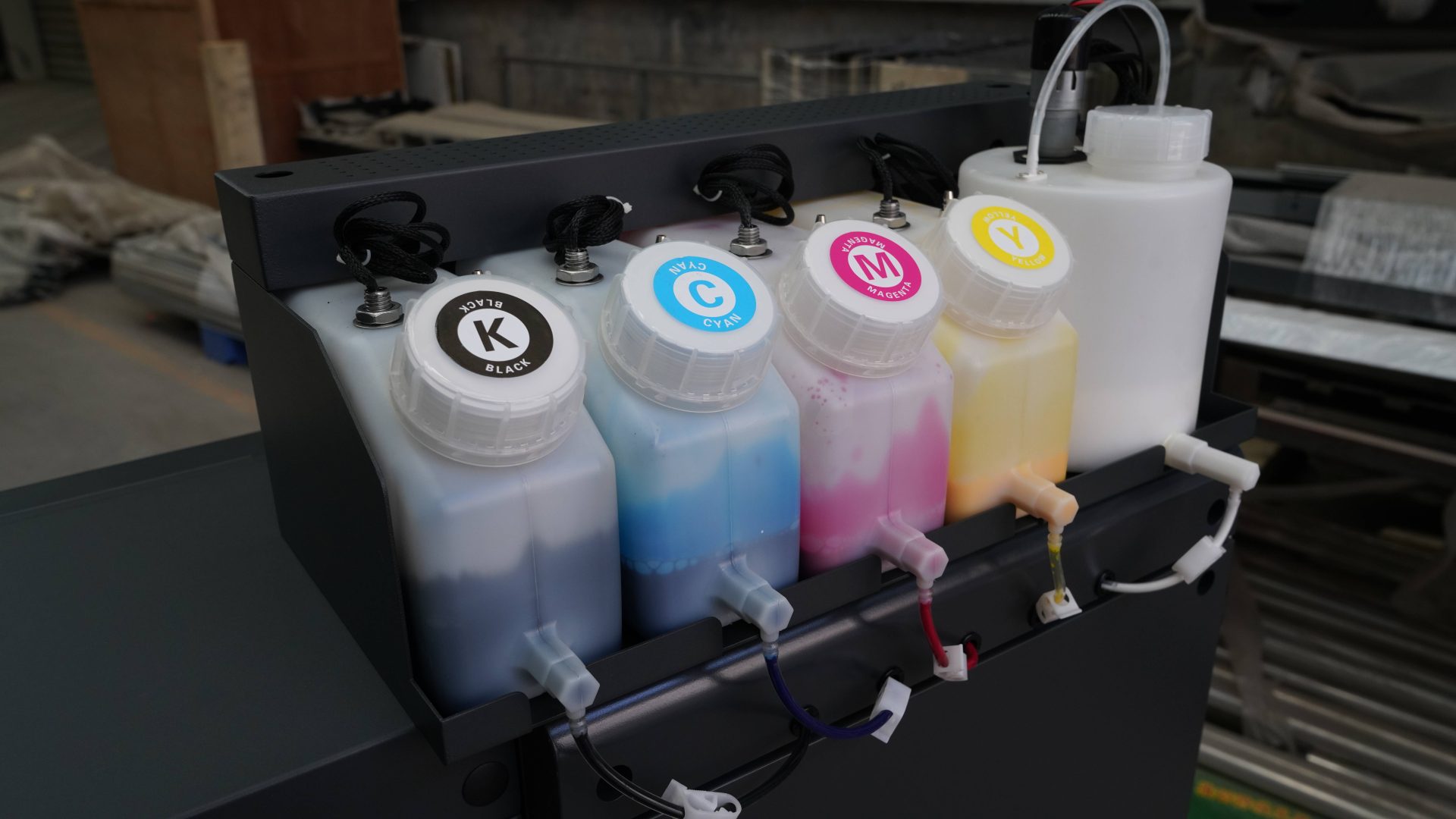

Efficient Ink Management: 2.5L large-capacity stirred ink bottles with ink shortage alarm (buzzer reminder) and 5L large-capacity waste ink bottle with overflow alarm, ensuring convenient and safe ink supply.
Enhanced Environmental Adaptability: Equipped with a newly added temperature and humidity meter for real-time monitoring of printing environment, optimizing print quality.
Simplified Operation & Maintenance: Integrated temperature control board (one board controls both air suction and temperature), exposed ink stack cover (easy cleaning/maintenance), tool-free guide rail terminal block (neat wiring), and upgraded paper out detection (no delay board required).

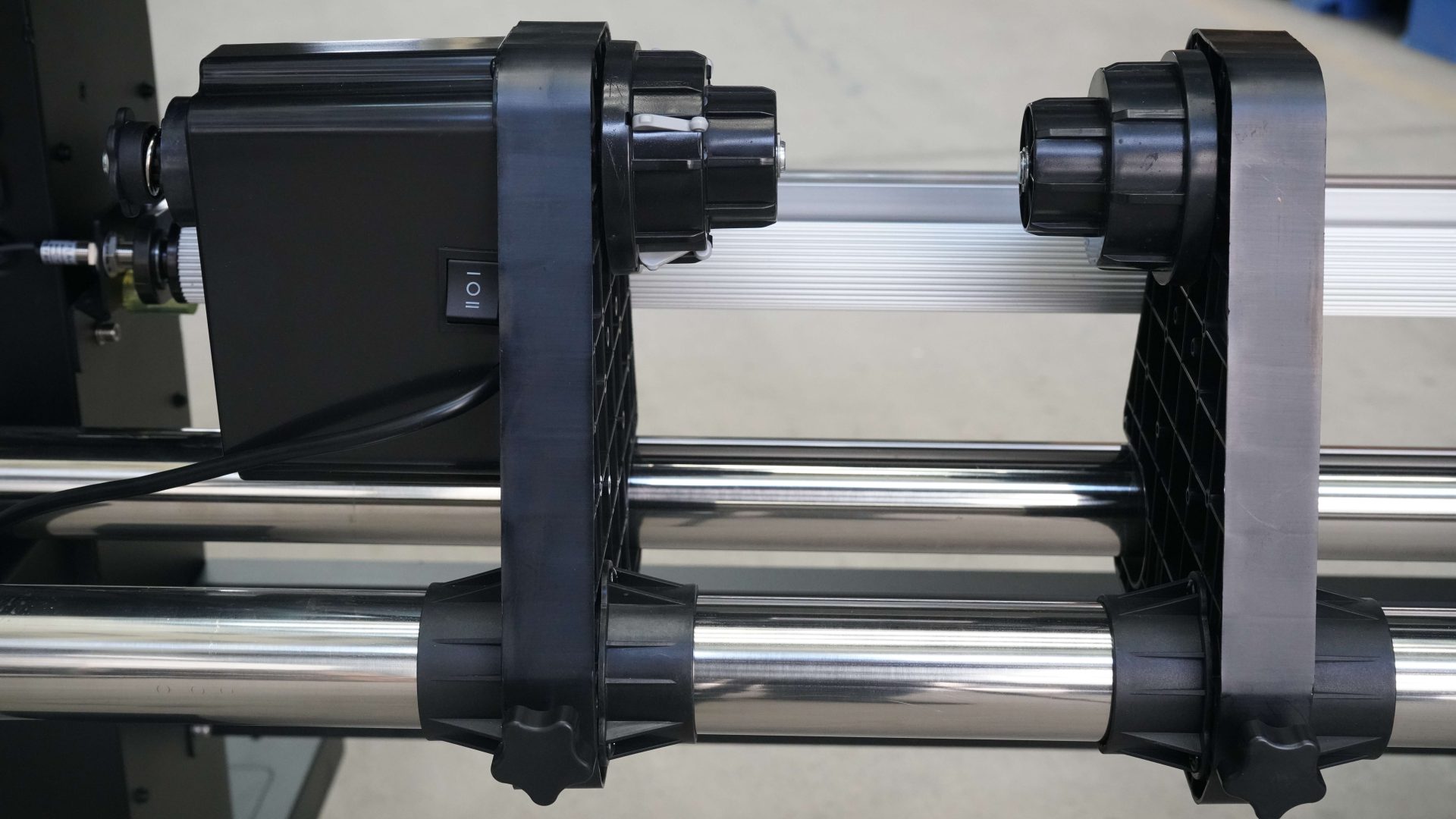

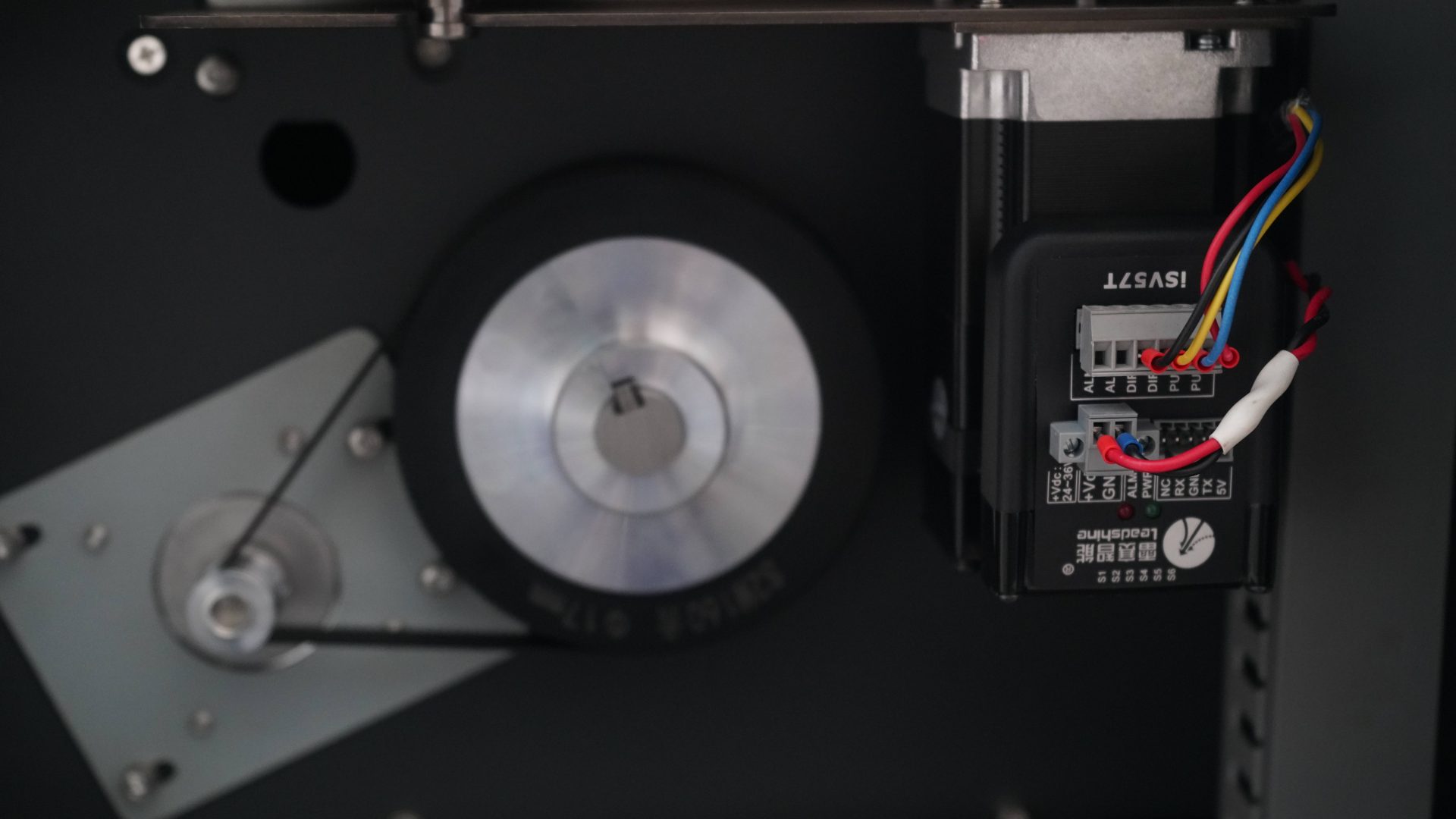

Superior Printing Stability: Improved platform adjustment structure (higher precision), swing rod paper feeding system (stable stepping, convenient wiring with aviation connector), new-structure paper pressing wheel (stable paper feeding), ensuring consistent print effect.
Space-Saving & Lightweight Design: Hidden ink circuit (neat appearance, space-saving) and lightweight molded machine shell + new-structure machine legs, reducing installation space and transportation burden.
- Package Size 210*87*75
*Warranty: 1 year, print head and ink road have no warranty
Technical Parameters
1 year, print head and ink road have no warranty
DTF Printer
| Print Head | E2060-3 |
| Print head | 2 head Epson13200-A1 |
| Board | Hoson board |
| Power | 1200W |
| Working size | Less than 60cm |
| Ink | Pigment ink (CMYK+White) |
| Print Speed | 4Pass 14 sqm/hour |
| 6Pass 8 sqm/hour | |
| 8Pass 6 sqm/hour | |
| Package Size | 210*87*75cm(Printer) |
Shaker
| Powder shaker model | DF-600 |
| Power | 4000W (Heating power: 3700W) |
| Heating tube | 4PCS*600MM(800W/pcs) |
| Working width | 60cm |
| Power Supply | AC Single Phase, 220V, 50HZ/60HZ |
| Package Size | 125*115*128cm |
| Gross Weight | 172KG(Printer)/211KG(Shaker) |
| Warranty | One year warranty but not including ink system and print heads |

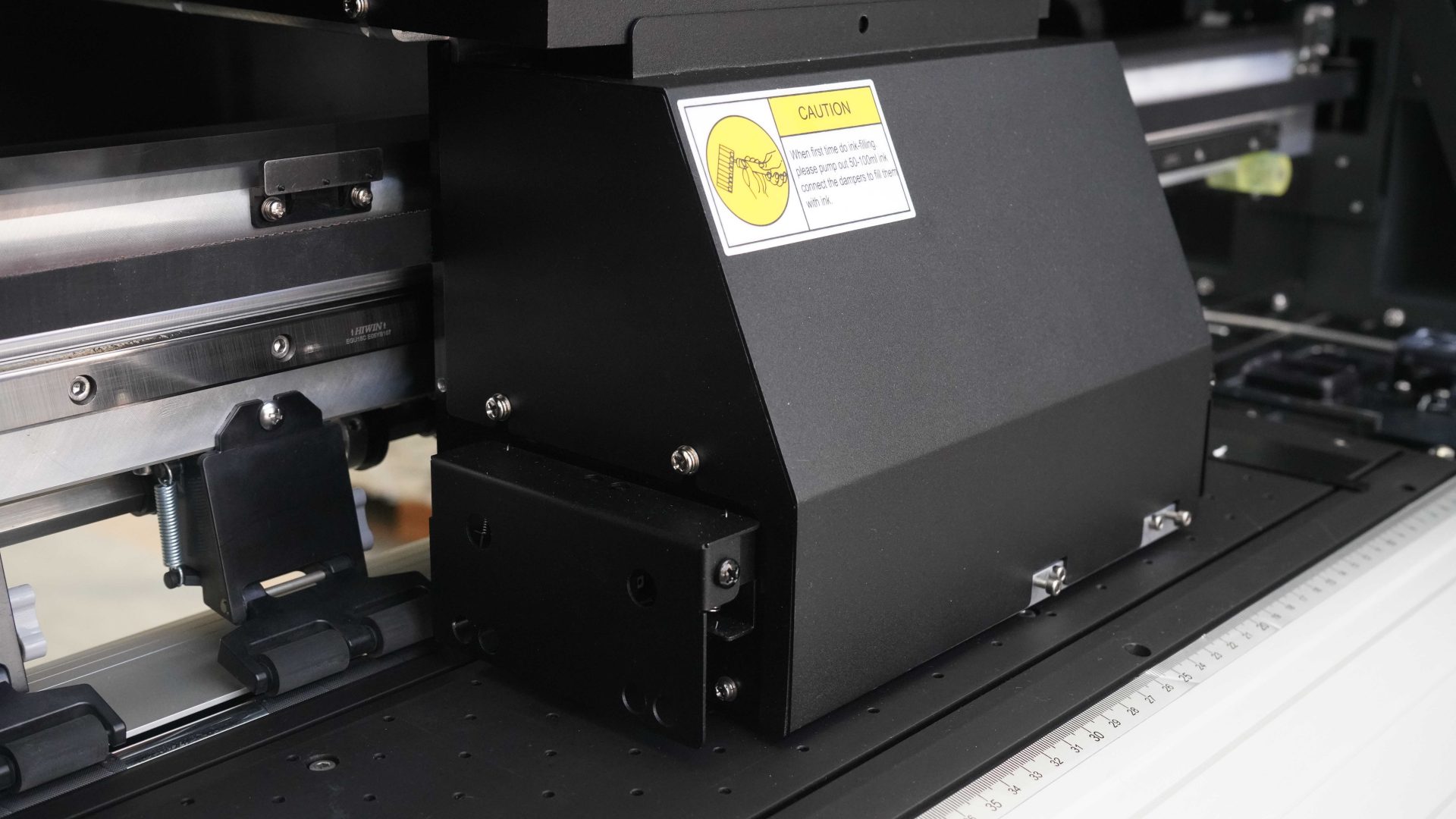

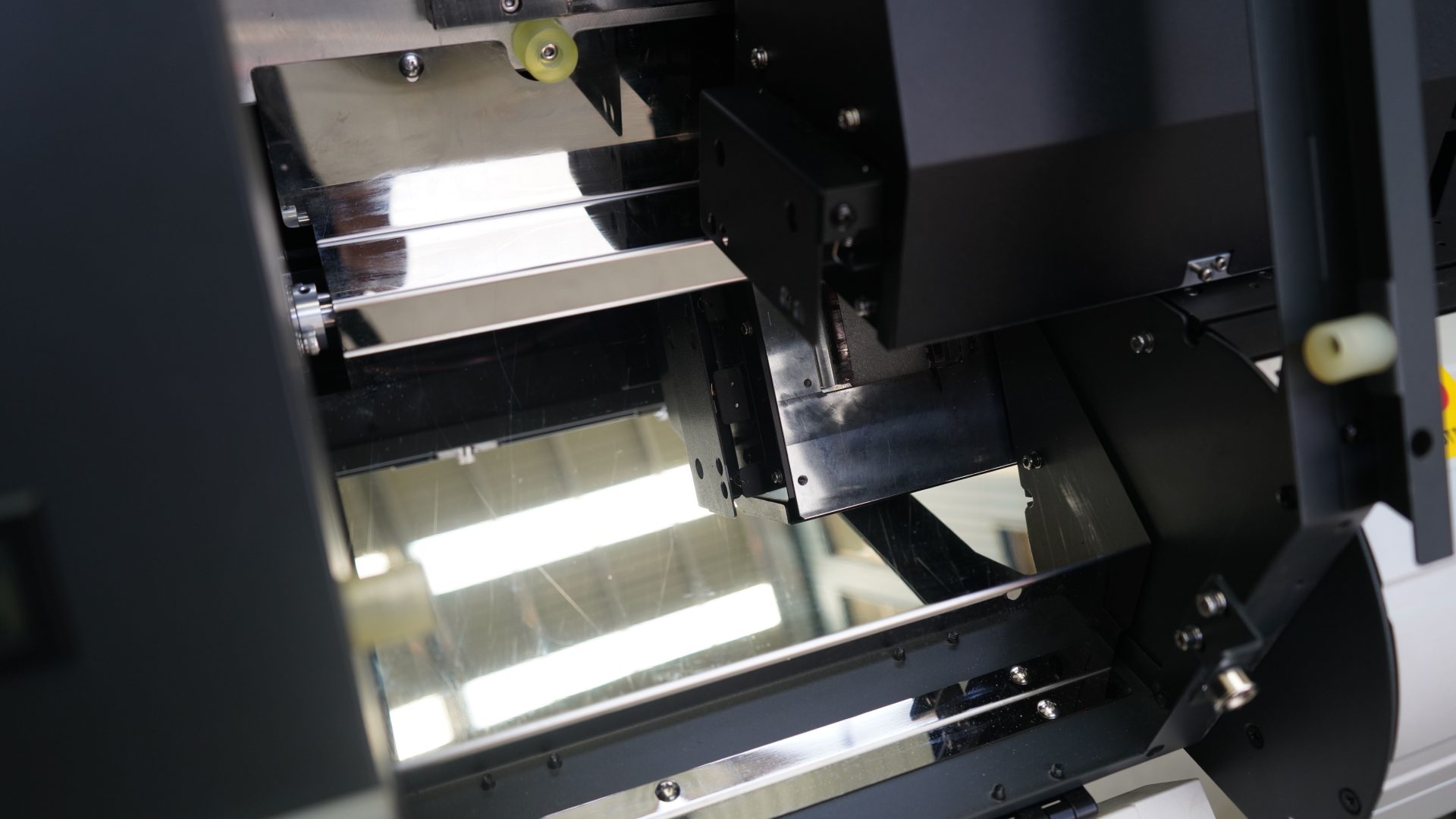

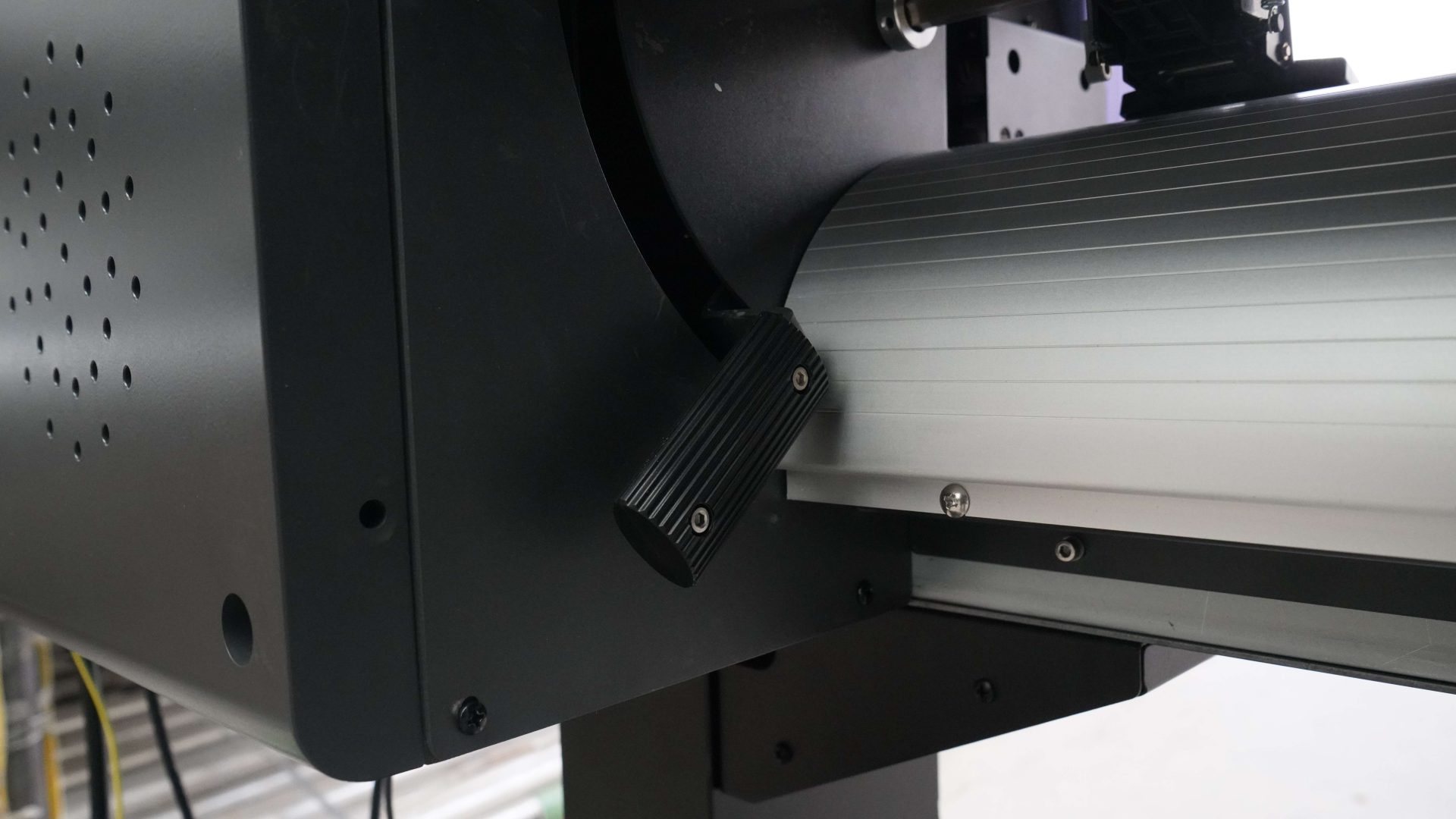

Equipment Details
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.

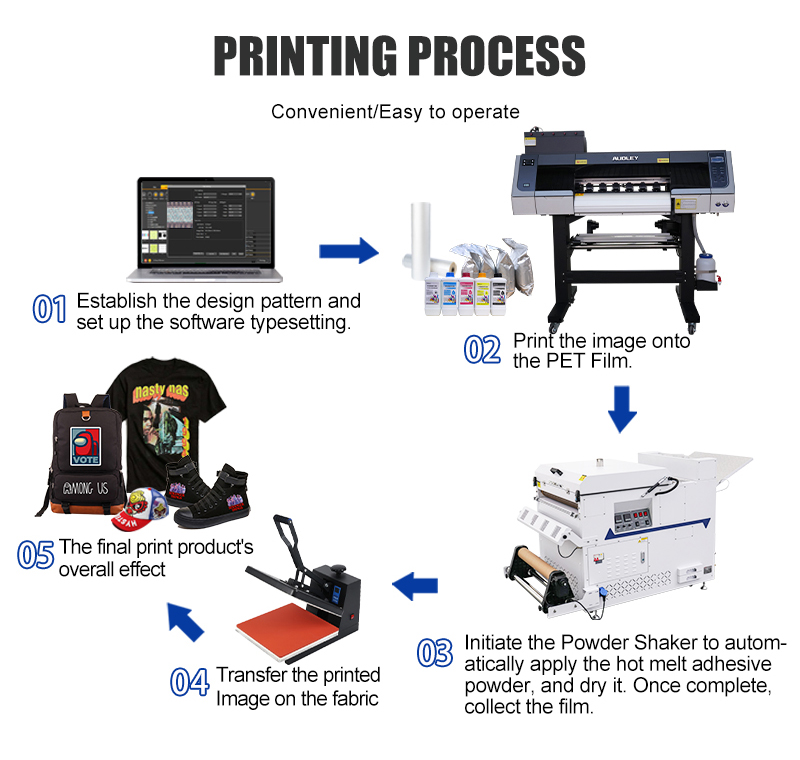

Printing process
Printing Process

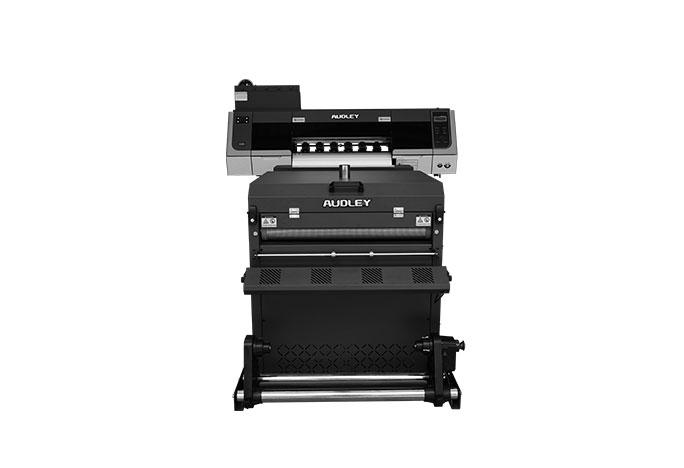

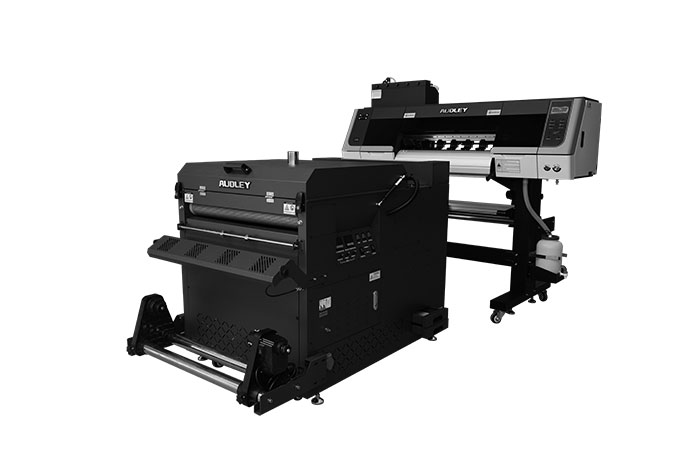

AUDLEY E2070-X5 Digital 60CM Inkjet Pet Film Printing Machine F1080A1 Print Head DTF Printer with Powder Shaking Machine
Color Channel for Design Spot
Create spot color channels using a variety of design applications.
Drawing Software RIP
Utilize RIP software; spot color and color are RIP out.
Drying While Printing And Powdering
DTF Fluorescent printing, dusting, drying, and automatic winding are all integrated processing steps.
Pressing of Garments
The printed PET film will either be manually or mechanically cut, hot pressed, and torn before being considered complete.
Applications
Widely used in any fabric, Tshirt, hoddies, Hats, sports dress, Leather,bag, shoes,Canvas,Mask,Socks,Glove,Acraf,Toys,Underwear, Swimsuit,Craft,Lable marking……
DTF Accessories
DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.
DTF PET Films
DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.
DTF Textile Printing Ink
DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
DTF Hot Melt Powder
Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.
