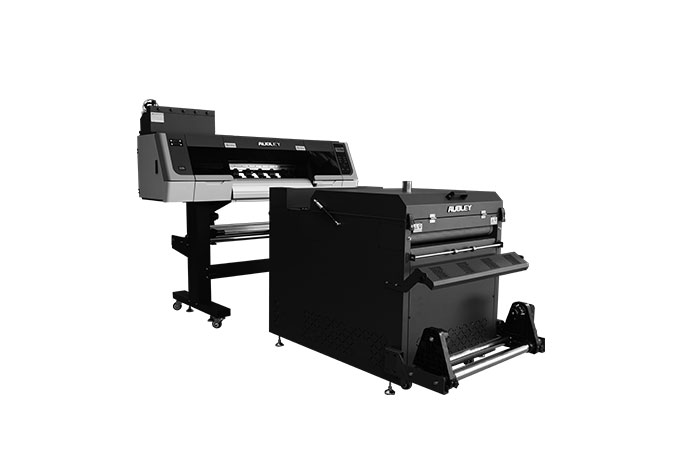

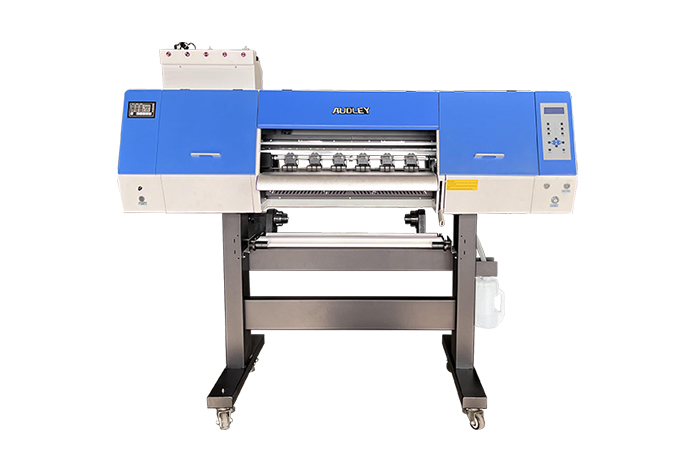

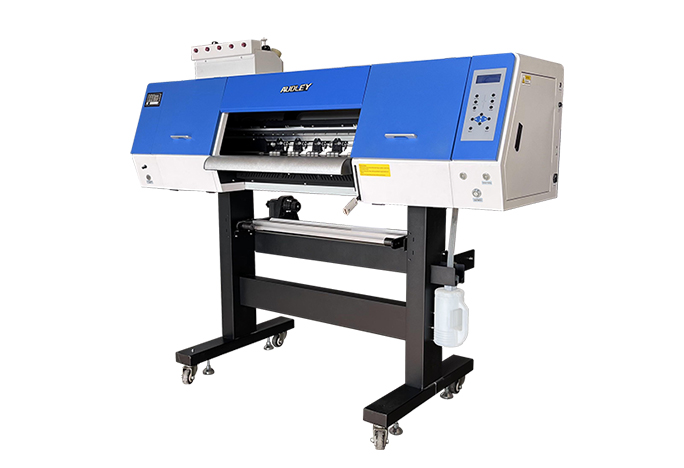

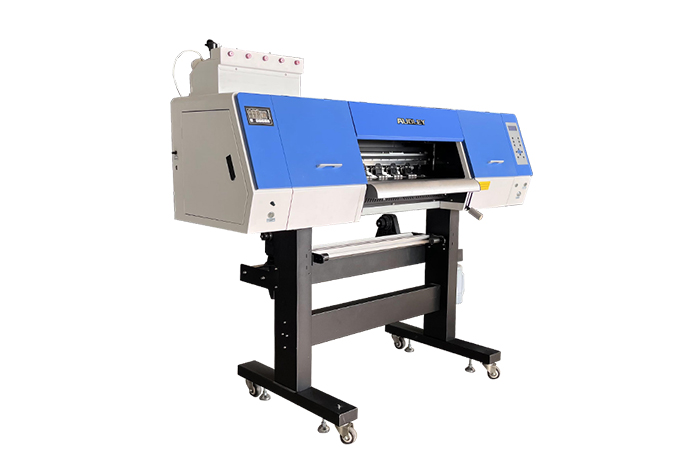

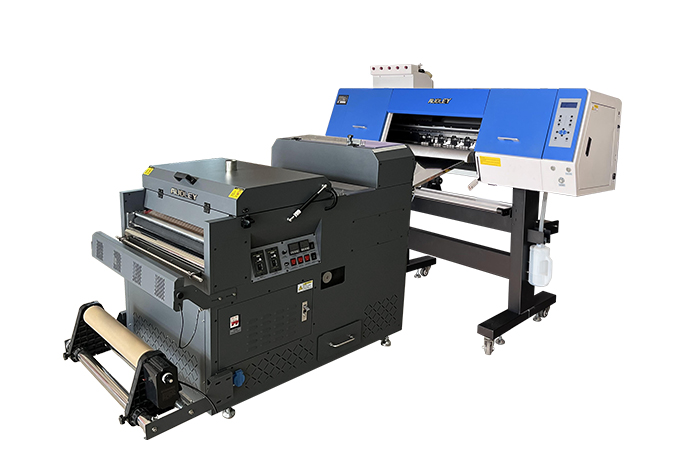

E2070 2 Head DTF Printer
The DTF printer has the characteristics of fast printing speed, high color restoration,and excellent printing precision. lt is mostly used for small-batch production.lts advantages such as simple operation and relatively low cost are very suitable for entrepreneurs.
- Package Size 198*76*71cm
- Gross Weight 170kg
*Warranty: 1 year, print head and ink road have no warranty
Technical Parameters
1 year, print head and ink road have no warranty
DTF Printer
| Print Head | Epson F1080-A1 Print Head |
| Head Nozzle | 2*Epson F1080-A1 Print Heads |
| Head Resolution | 1080 DPI |
| Power | 1200W |
| 5 Based Pigment Ink | Cyan, Magenta, Yellow, blacK+White Pigment Ink |
| White Pigment Ink | White Ink Circulation System, White Ink Stirring System |
| Print Speed | 4Pass 14 sqm/hour |
| 6Pass 8 sqm/hour | |
| 8Pass 6 sqm/hour | |
| Package Size | 198*76*71cm |
Shaker
| Powder shaker model | DF-700 |
| Power | 4000W (Heating power: 3700W) |
| Heating tube | 2PCS*1000W+2PCS*600W |
| Working width | 60cm |
| Power Supply | AC Single Phase, 220V, 50HZ/60HZ |
| Package Size | 125*115*128cm |
| Gross Weight | 170kg |
| Warranty | One year warranty but not including ink system and print heads |
Equipment Details
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.
Print Head Configuration
F1080-A1 Print Head
A2 DTF printer is equipped with two Epson F1080-A1 print heads. Epson F1080-A1 head has 1080 nozzles, and jetting frequency is higher than DX5. The color saturation, printing speed, and printing accuracy are better, and the price is more cost-effective.
F1080-A1 Print Head Parameter
| Model | F1080-A1 |
| Ink Types | AQ ink |
| Dimension (width x depth x height)(mm) | 84.9×57.2×42.6 |
| Weight (g) | 60 |
| Nozzle Quantity | 1080 |
| Maximum Ink Colors/Head | 6 colors (180dpi/color) |
| Nozzle Row | 6 rows |
| Resolution | 180 npi/1 row; 360 npi/2 rows |
| Effective Printing Width(mm) | 25.4 |
| Jet Frequency(kHz) | 46 (single dot), 11.52 (multi dot) |
| Ink Drops(pl) | 4.5-9-20-40 |
| Ink Viscosity(mPa.s) | 3~5 |
Printing Process
AUDLEY E2070-X5 Digital 60CM Inkjet Pet Film Printing Machine F1080A1 Print Head DTF Printer with Powder Shaking Machine
Color Channel for Design Spot
Create spot color channels using a variety of design applications.
Drawing Software RIP
Utilize RIP software; spot color and color are RIP out.
Drying While Printing And Powdering
DTF Fluorescent printing, dusting, drying, and automatic winding are all integrated processing steps.
Pressing of Garments
The printed PET film will either be manually or mechanically cut, hot pressed, and torn before being considered complete.
Applications
Widely used in any fabric, Tshirt, hoddies, Hats, sports dress, Leather,bag, shoes,Canvas,Mask,Socks,Glove,Acraf,Toys,Underwear, Swimsuit,Craft,Lable marking……
DTF Accessories
DTF Accessories inculding DTF textile inks, DTF shaking powder and PET Film with high quality accessories for DTF printing with affortable price.
DTF PET Films
DTF film can be transferred on a wide range of fabrics. Capable of printing to shirts, sweaters, hoodies, pullovers, canvas, denim, and more! Our DTF films have excellent ink absorption for high-precision printing. Use our film you will achieve high-quality, breathable, and smooth prints.

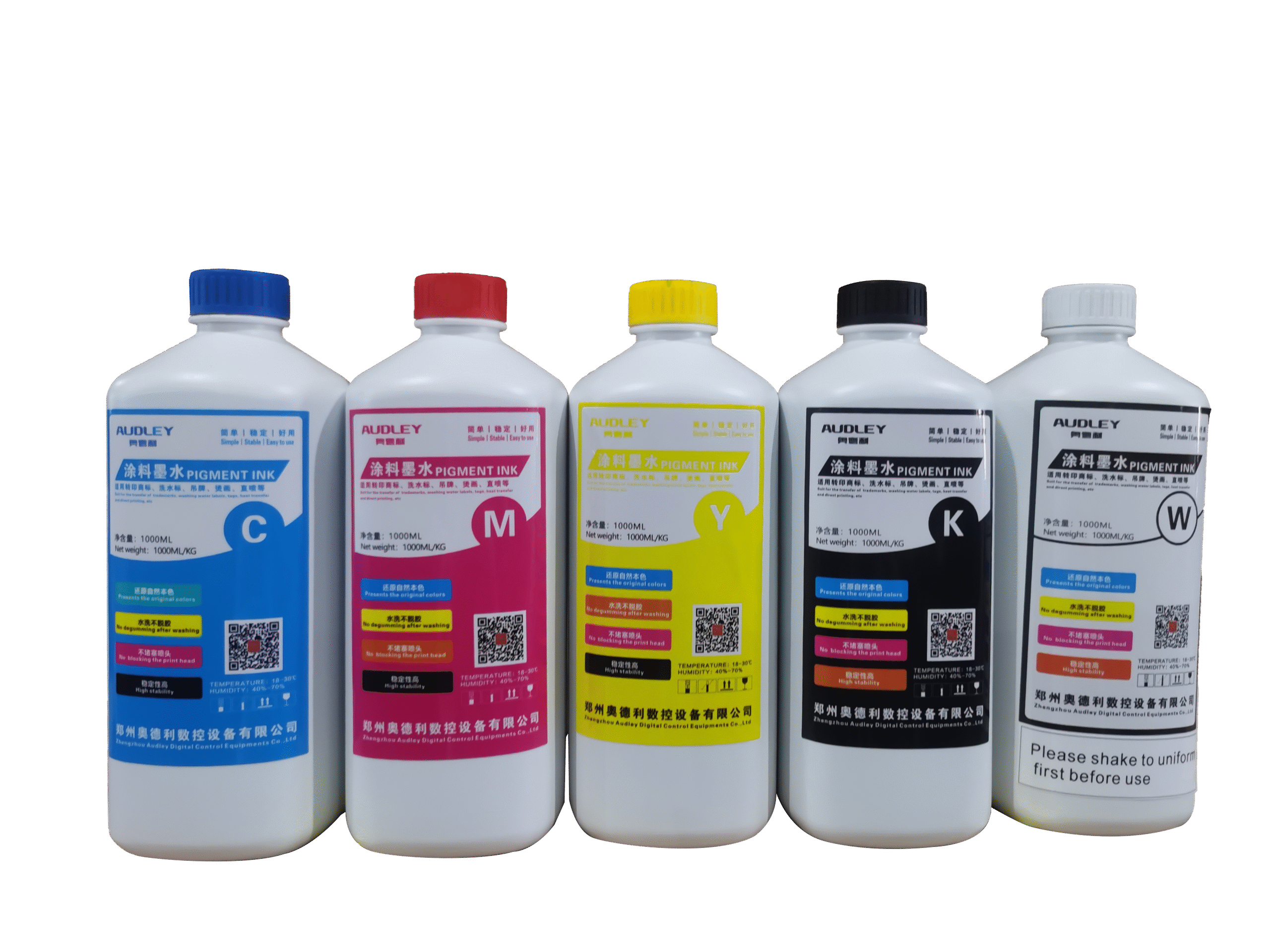

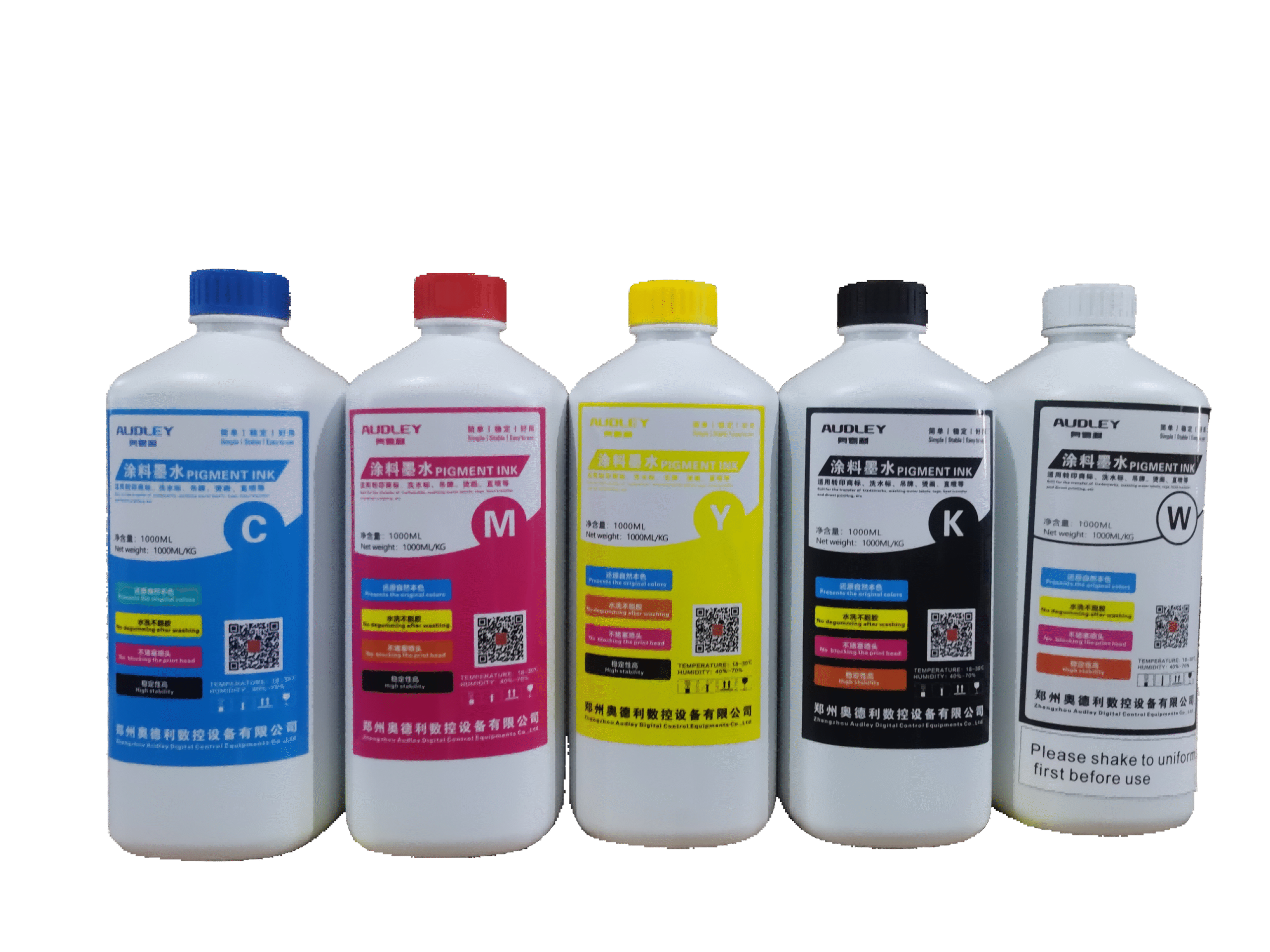

DTF Textile Printing Ink
DTF textile printing ink is highly compatible with print Epson heads. You can directly print your designs on different textiles and fabrics using Direct to Film Ink technology.ORIC offers different colors of DTF inks such as W, Y, K, M, C, Or, Gr, and also fluorescence pink & fluorescence yellow.
DTF Hot Melt Powder
Unlike DTG technology, DTF requires no pre-treatment.The most important factor is DTF Powder. DTF powders are specially designed to use with DTF printing process. Our DTF powders are slow drying and easy to cold tear. Which will help you get excellent transfer printing results.
