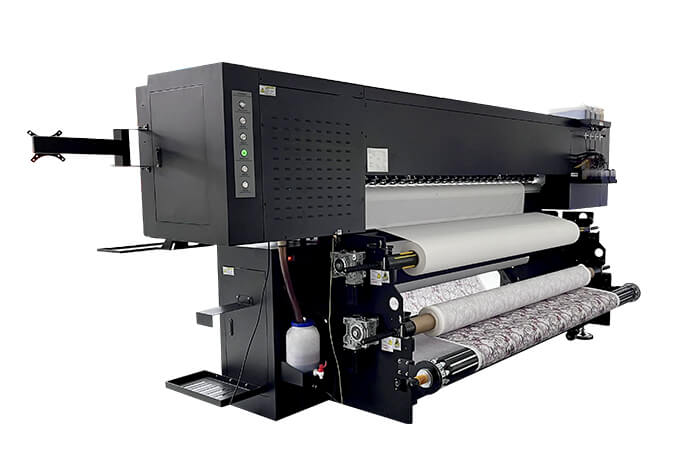

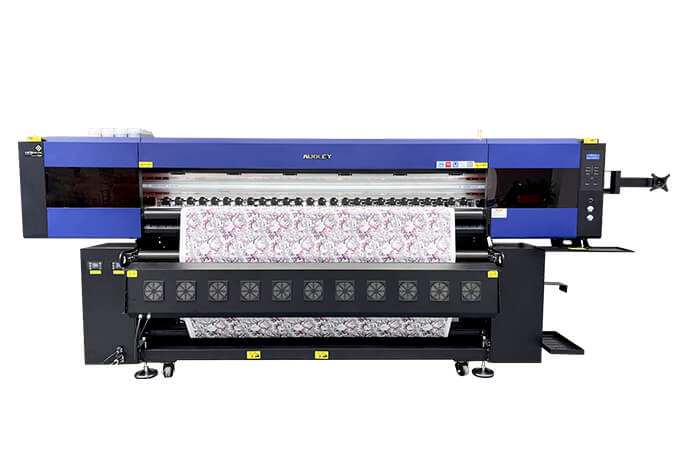

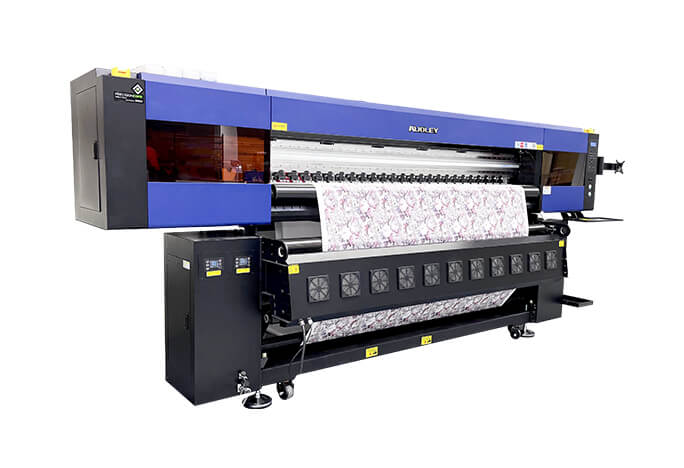

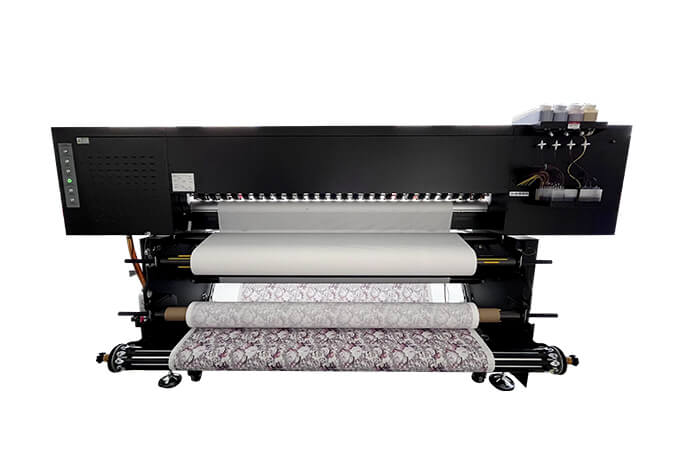

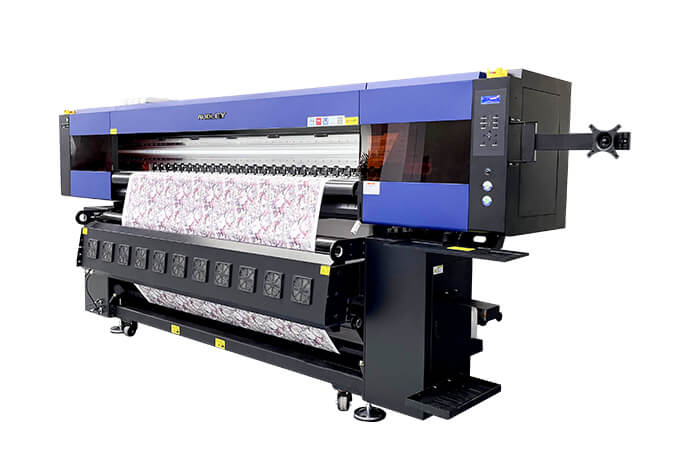

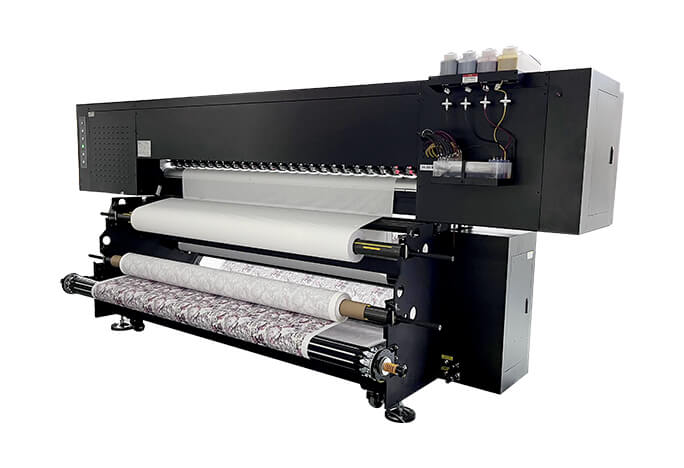

Audley 2208 Sublimation Printing Machine
High-Quality Printing: The AUDLEY wide format 8 heads digital printer i3200 heads sublimation textile printer offers high-quality prints with a resolution of 3200dpi, ensuring vibrant and precise images on various materials such as paper, cloths, and advertising materials.
Automatic Grade and Roll-to-Roll Printer: This printer is an automatic roll-to-roll printer, allowing for efficient and continuous printing without manual intervention, ideal for high-volume printing needs in garment shops, manufacturing plants, and printing shops.
- Package Size 400*152*197cm
- Weight 1200KG
- Power Machine 1.5kw+heating 8KW
*Warranty: 1 year, print head and ink road have no warranty
Technical Parameters
1 year, print head and ink road have no warranty
| Printer | 2208 |
| Print head | 8 head Eps i3200-A1 |
| Print width | 2200mm |
| Speed | 1Pass:350sqm/h 2Pass:190sqm/h |
| Package size | 400*152*197cm |
| Weight | 1200KG |
| Power | Machine 1.5kw+heating 8KW |
| Ink bottle | 4000ML*4 |
| Printing material | Sublimation paper(Diameter 250 mm weight about 110KG) |
| Voltage | 220V/110V 50HZ/60HZ (Standard) |
| Ink | C/M/Y/K |
| Damper heating | Equipped |
| Warranty | 1 Year （Except Print head and Ink System |
Equipment Details
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.

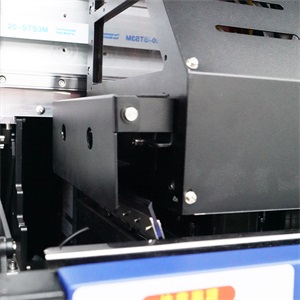

Anti – collision device for the carriage

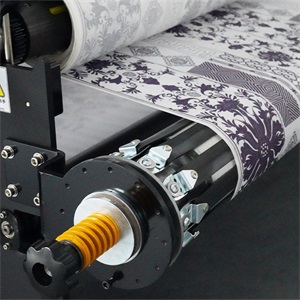

Anti-deviation Rubber Roller

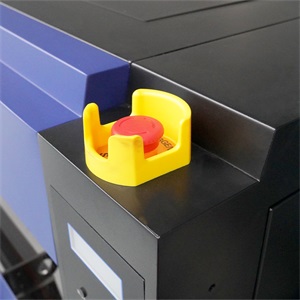

Emergency stop device

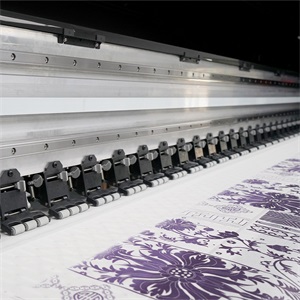

Imported silent linear guide rail

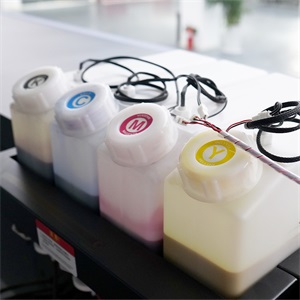

Large capacity ink supply system

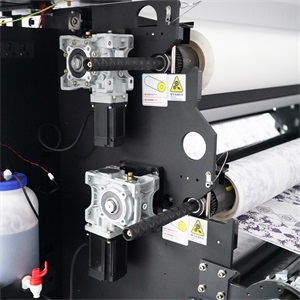

Y direction paper feeding 400W Leadshine servo motor
Print Head Configuration
I3200 Print Head
Sublimation printer uses Epson I3200 print heads. Epson I3200 head has 3200 nozzles, the resolution is higher than DX5 and xp600, and the color saturation, printing speed, and printing accuracy are better ,very cost-effective.
I3200 head print head Parameter
| Model | I3200 E1/U1 |
| Ink Types | Eco solvent ink , UV ink |
| Size(width x depth x height)(mm) | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Nozzle Numbers | 3200 |
| Length Between Nozzles(inch) | 1/300(in one row) |
| Nozzle Row | 8 row |
| Max color/head | 4 colors |
| Resolution | 300 npi/1 row 600 npi/2 rows |
| Effective Printing Width(mm) | 33.8 |
| Jet Freqency(kHz) | 43.2 (single dot), 21.6 (multi dot) |
| Ink Drops(pl) | 3.8-6-12(9.4) |
| Ink Viscosity(mPa.s) | 3~4 |
Printing Process
Four head sublimation printer high-definition printing, strongstability, simple operation, wide range of applications, to meet your printing needs.
Design and type setting ofpatterns through software
Printer coordinates with ink,sublimation paper printer printing
Heat transfer on the polyester fabric
Finished products
Applications
With help of heat transfer machine,pictures can be transferred to many materials, such as polyester,chiffon, silk, and flag banner.
DTF Accessories
Sublimation printer Accessories including sublimation ink
Sublimation Ink
i3200A1 ink is highly compatible with print Epson heads. You can directly print your designs on different materials , it has CMYK color
Sublimation Paper
Wrinkle and wave resistant, it can withstand high ink volumes at high printing speeds while maintaining high clarity and color fidelity
