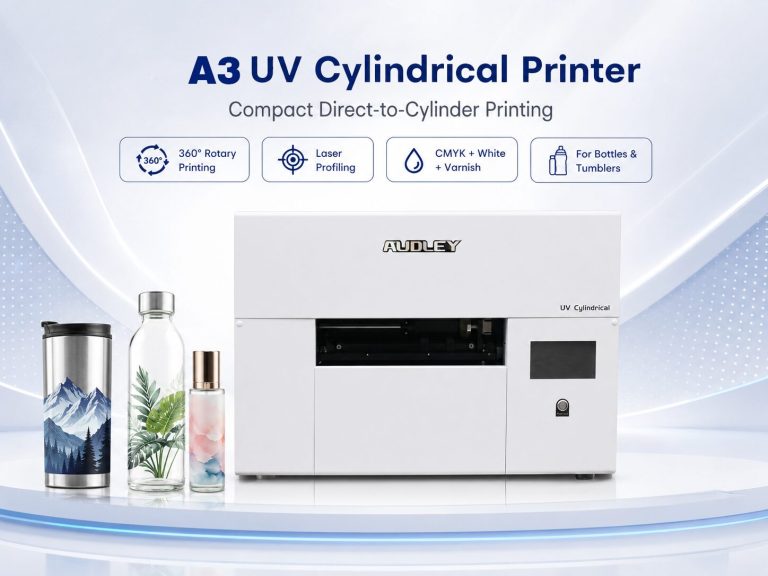

AUDLEY A3 cylinder UV printer for bottles
1. Purpose-built for cylindrical customization
Unlike a standard flatbed printer with a basic rotary accessory, the A3 UV is designed around direct printing on bottles, cups and cylindrical containers.
2. More product flexibility with laser-assisted setup
Laser profiling and adjustable tilt help operators handle different diameters and selected tapered shapes with less repeated manual adjustment.
3. Higher-value visual effects
White ink and varnish expand the range of printable materials and enable premium gloss, spot-varnish and layered visual effects.
4. Compact production footprint
The benchtop body is suitable for sample rooms, customization shops, promotional product businesses and flexible production areas.
5. Safer, cleaner daily operation

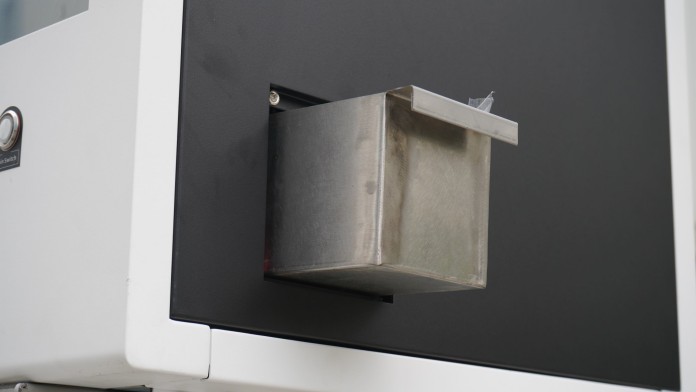

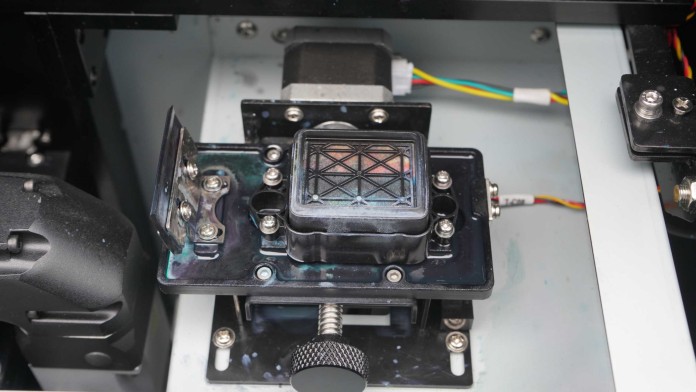

Anti-collision protection, printhead shielding, mist filtration and solidified waste-ink handling help support dependable production.
- Package Size 101*80*79cm
- Weight 125KG
*Warranty: 1 year, print head and ink road have no warranty
Technical Parameters
1 year, print head and ink road have no warranty
| Parameter | Specification | Parameter | Specification |
| Model | A3 | Printer type | Benchtop cylinder UV printer |
| Control board | Hansen | Printhead | 1 × Epson I3200-U1HD |
| Ink configuration | CMYK + White + Varnish | Ink type | Cylinder UV ink |
| Print resolution | 720 × 1200 DPI / 720 × 1800 DPI | Print distance | 2–8 mm |

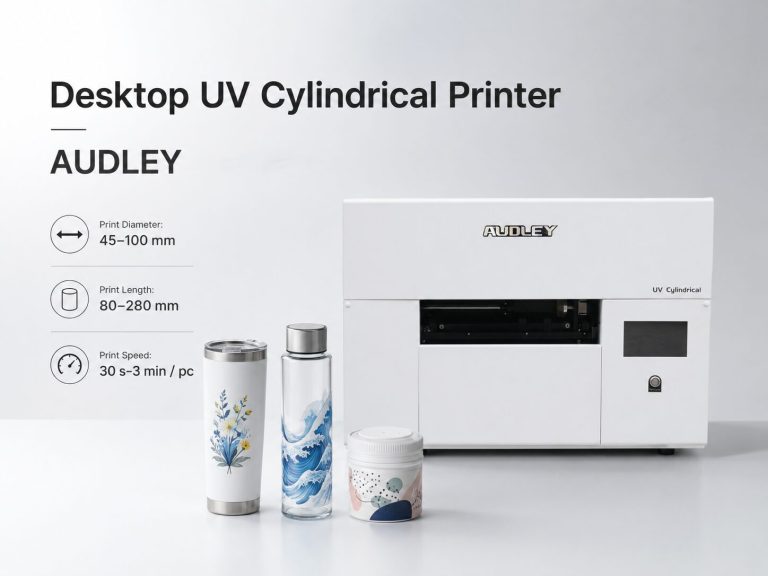

| Printable diameter | 45–100 mm | Printable length | 80–280 mm |
| Maximum taper | ≤5° | Production time | Approx. 30 sec–3 min/item* |
| Printable materials | Metal, ceramic, plastic, wood, glass and other tested materials | Printable shapes | Cylinders, truncated cones; spheres require a custom fixture |
| Fixture compatibility | Multiple fixtures; bottle-opening range 27–100 mm | RIP software | Riin / Ruiyin |
| Color management | ICC color control; adjustable curves and density | File formats | TIFF, JPEG, PostScript, EPS, PDF |

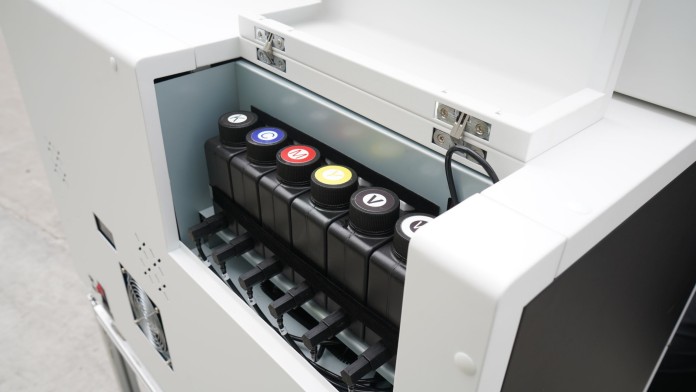

| Data transmission | Gigabit Ethernet | Ink supply | 500 ml bottles, low-ink alarm, white ink stirring |
| Machine dimensions | 900 × 587 × 630 mm | Net weight | 95 kg |
| Package dimensions | 1010 × 800 × 790 mm | Gross weight | 125 kg |
| Operating environment | 18–30°C / 40%–60% RH | UV curing | Water-cooled UV lamp with segmented lighting |

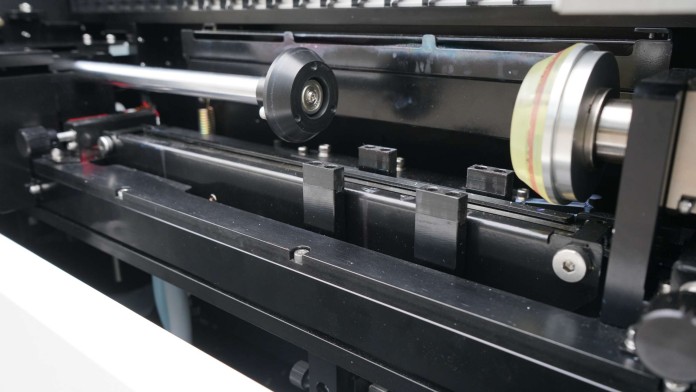

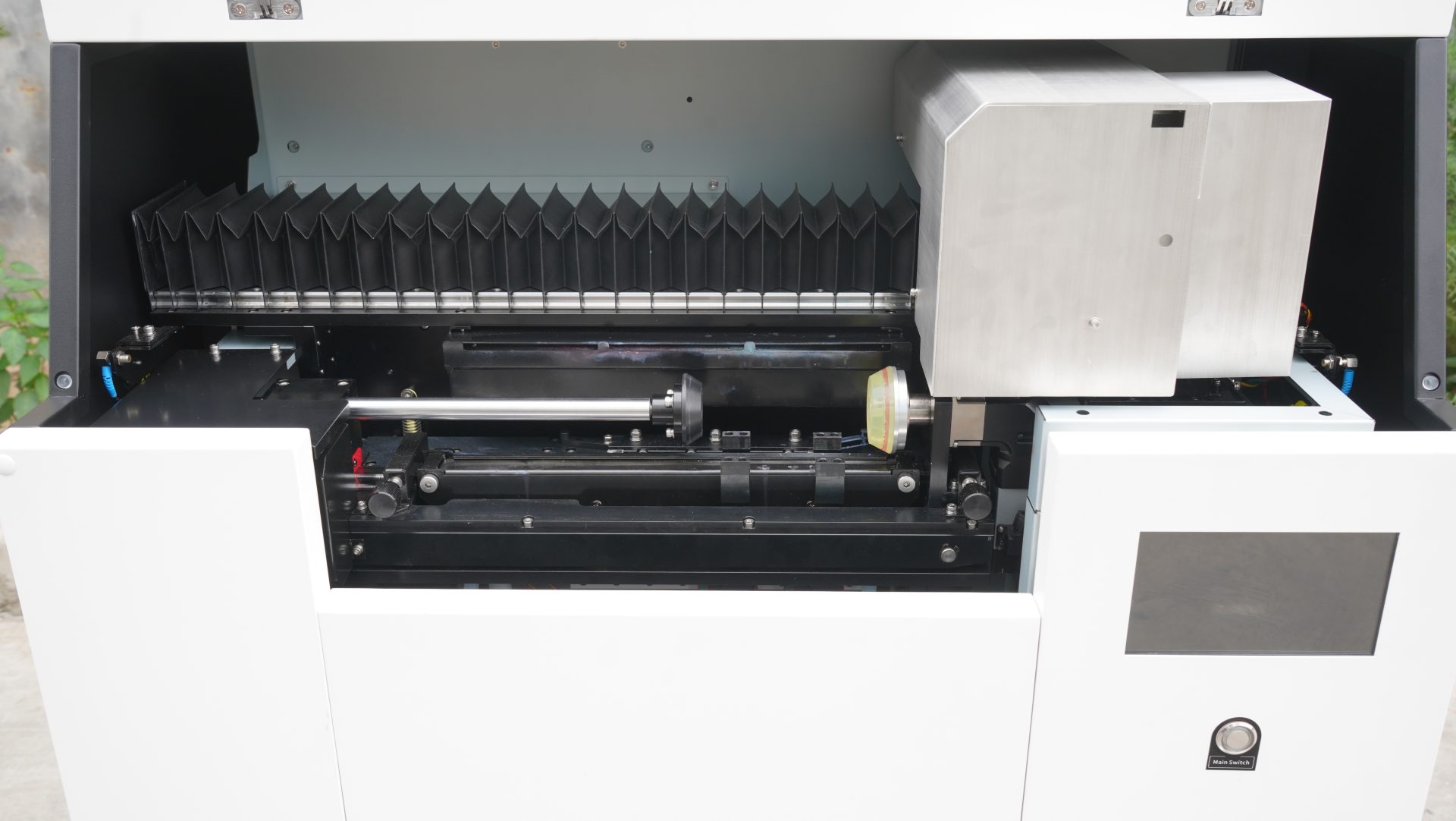

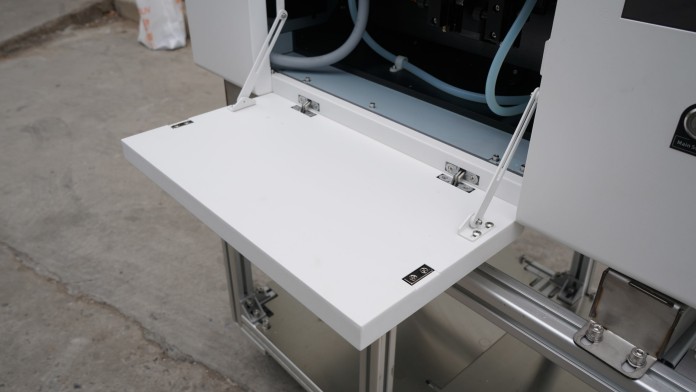

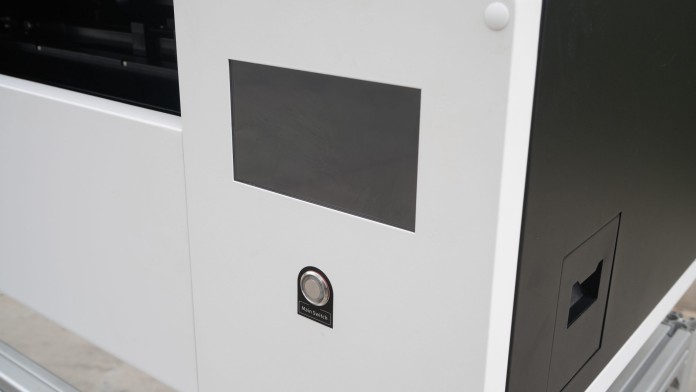

Equipment Details
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.
Top Features:
•Laser profiling: An OPTEX sensor scans and models the product shape to simplify setup for cylindrical and lightly tapered objects.

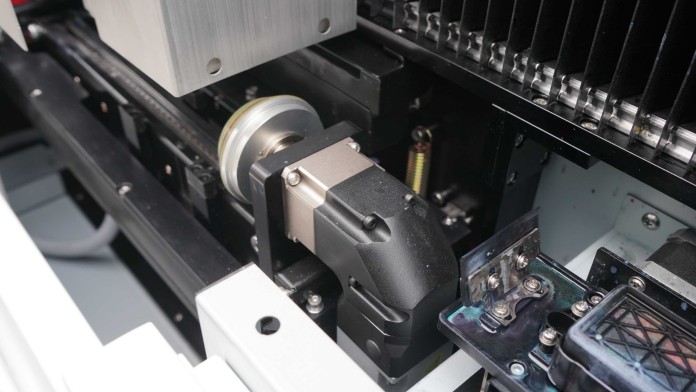

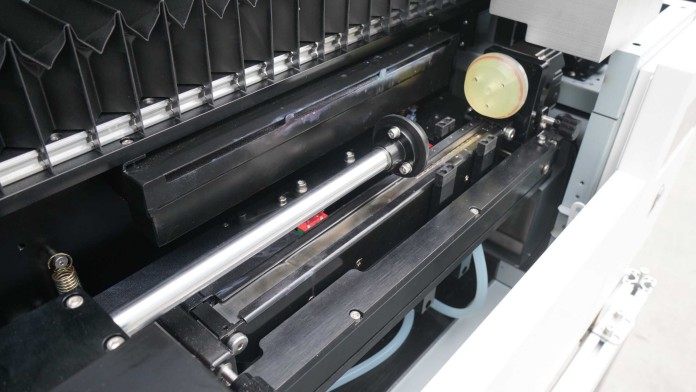

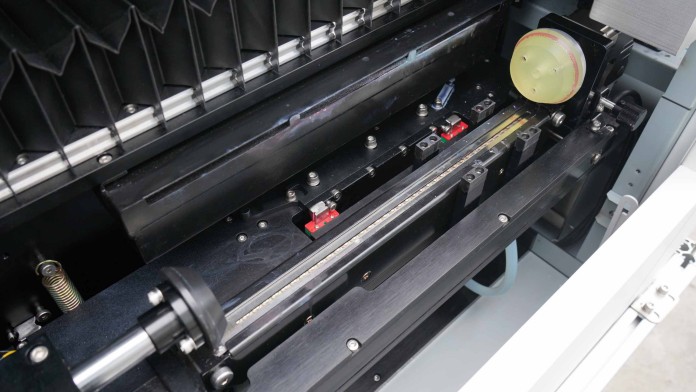

• 360° rotary printing: The adjustable rotation mechanism supports continuous wraparound graphics and flexible tilt adjustment.
• CMYK + White + Varnish: Produce vivid color, white underbase and gloss or textured varnish effects within one digital workflow.

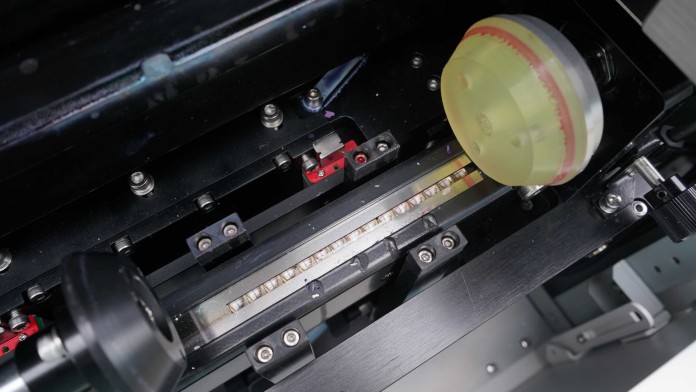

• Precision motion system: Leadshine intelligent servo control, a Taiwan HIWIN ball screw and high-speed silent linear guide support stable positioning.
• Epson I3200-U1HD printhead: Thin-film piezoelectric drop-on-demand technology provides controlled ink placement for detailed output.
• Smart touchscreen control: A 7-inch Hansen LCD touchscreen provides convenient human–machine interaction and straightforward operation.
• Flexible fixture system: Multiple fixtures adapt to different products, with a bottle-opening compatibility range of 27–100 mm.
FAQ 1
What is an A3 UV cylindrical printer?
An A3 UV cylindrical printer is a digital UV printing system designed to print graphics directly onto bottles, tumblers, containers and other cylindrical products. UV ink is cured during printing, allowing color, white ink and varnish effects to be produced in one workflow.
FAQ 2
What products can the A3 UV cylindrical printer print?
It can print selected bottles, tumblers, cosmetic containers, glass bottles, ceramic cups, metal cans, plastic containers and lightly tapered products. The product must remain within the supported diameter, length and taper ranges.
FAQ 3
What is the supported printing diameter?
The supported product-body diameter is 45
–
100 mm. Multiple fixtures are available, with bottle-opening compatibility ranging from approximately 27 to 100 mm.

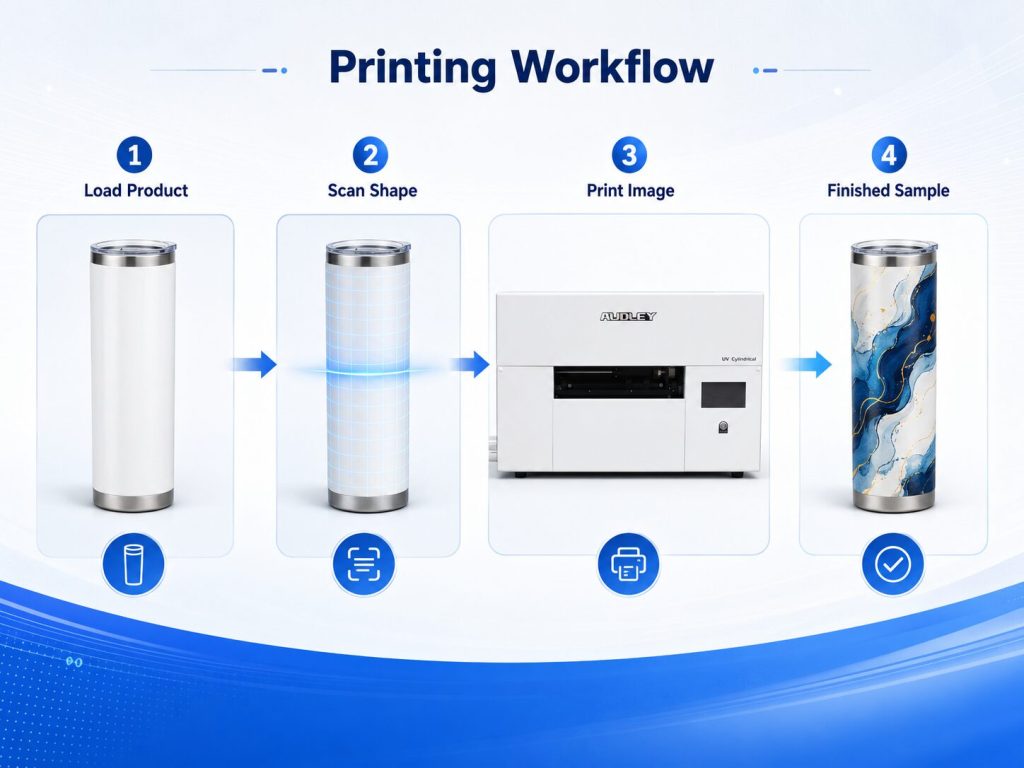

Printing Process
UV Printer Simple operation and convenient printing
Design and type setting of patterns through software
Printing+laminating in one
UV ink

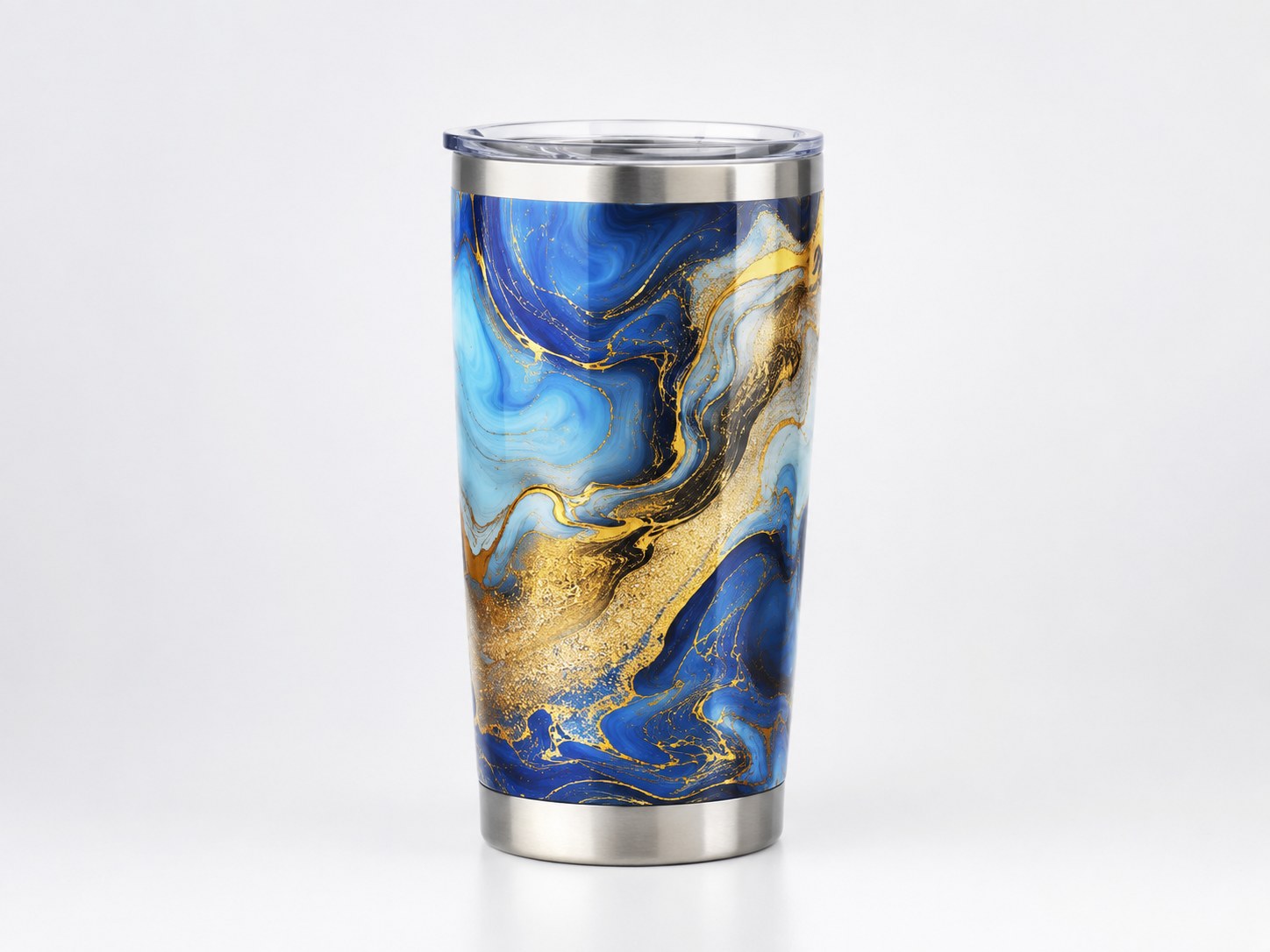

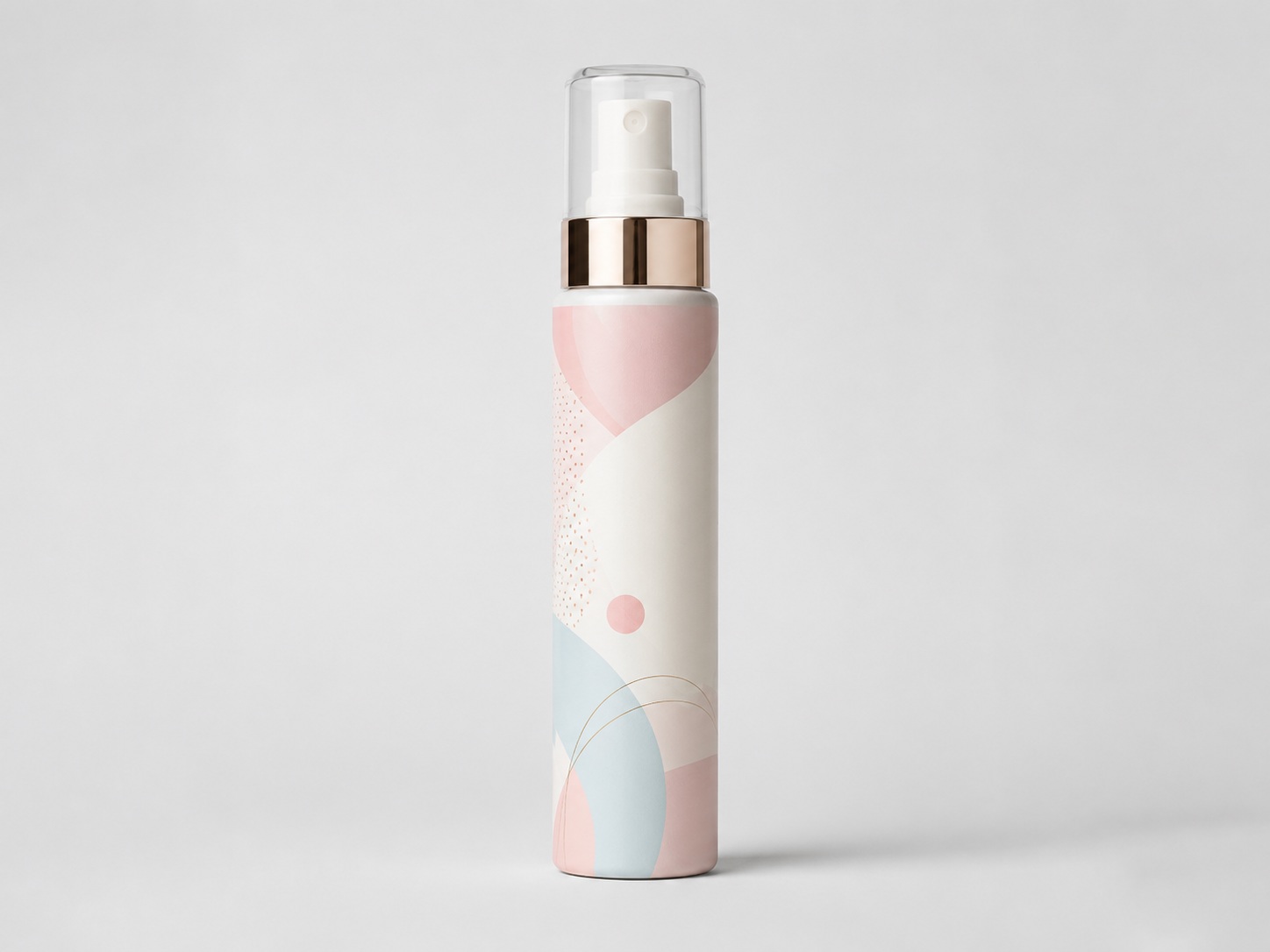

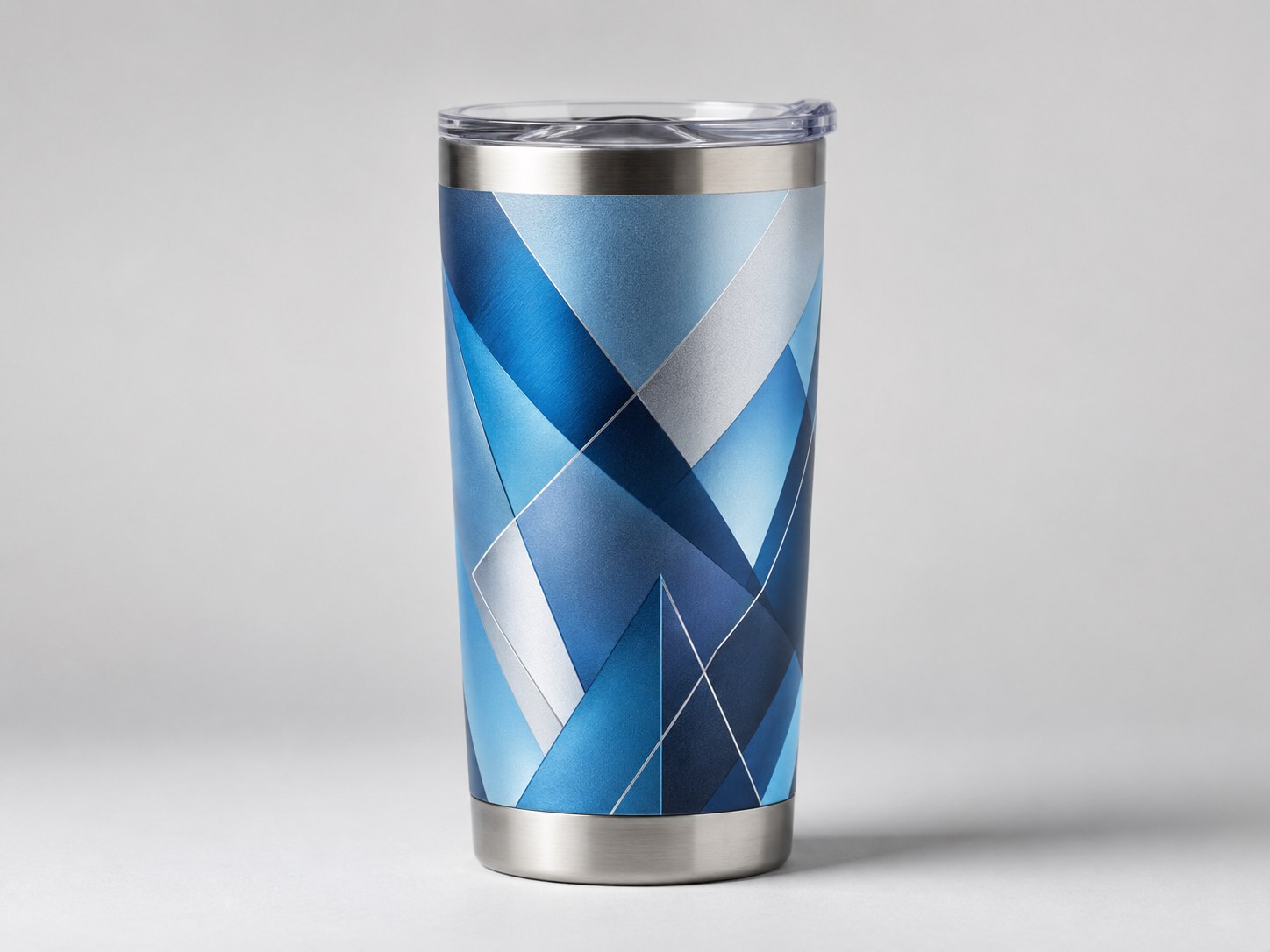

Printing effect of finished products
Applications
Can be used for various material :leather,Acrylic ,paper,KT board ,foam board,glass, metal, wood, ceramic etc
