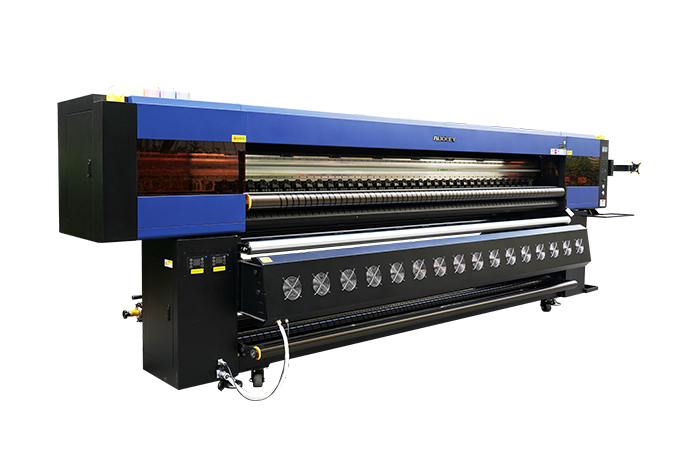

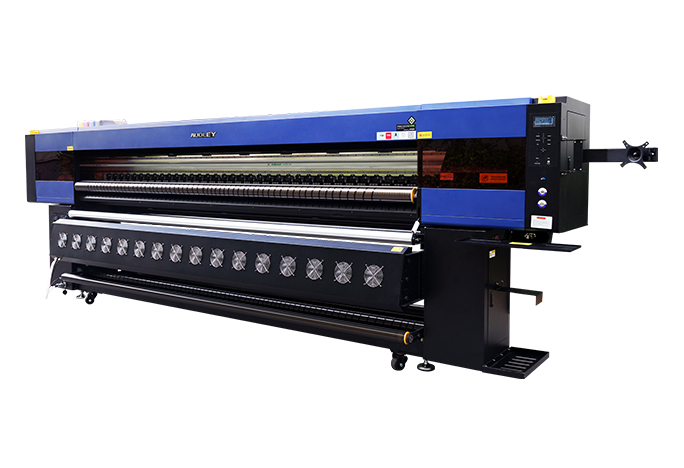

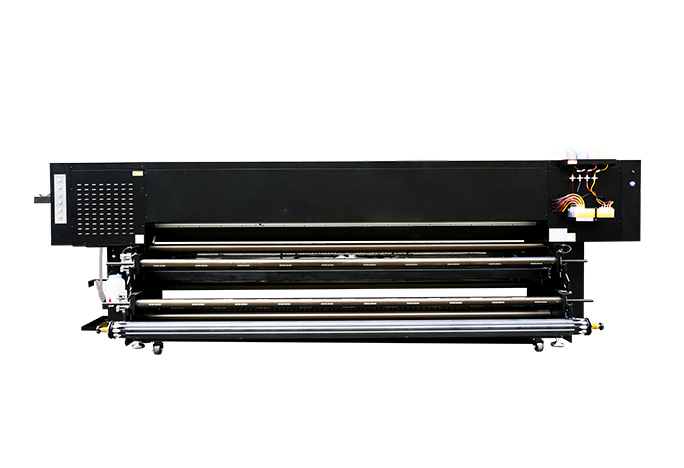

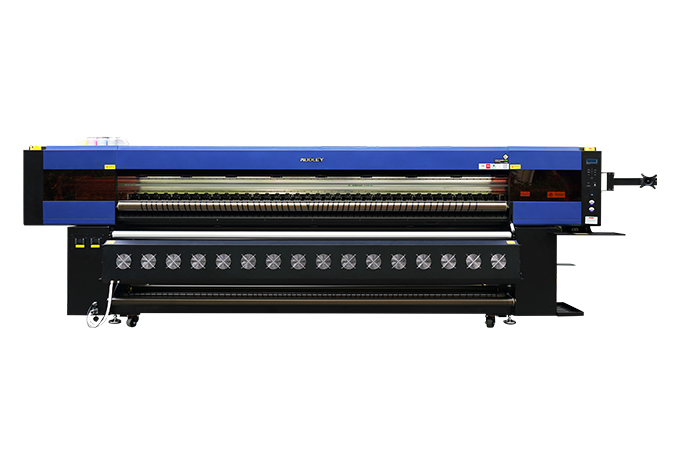

3208 Sublimation Printer
This direct to film printer can apply to various garments, such as t-shirt, hoodies, shoes, spandex underwear, shoes, etc.. With Epson print head, it can print smoothly for your garments or DTF business.
- Package Size 500*152*197cm
- Weight 1300KG
- Power Machine 1.5kw+heating 12KW
*Warranty: 1 year, print head and ink road have no warranty
Technical Parameters
1 year, print head and ink road have no warranty
| Printer | 3208 |
| Print head | 8 head Eps i3200-A1 |
| Print width | 3200mm |
| Speed | 1Pass:370sqm/h 2Pass:200sqm/h |
| Package size | 500*152*197cm |
| Weight | 1300KG |
| Power | Machine 1.5kw+heating 12KW |
| Ink bottle | 4000ML*4 |
| Printing material | Sublimation paper(Diameter 250 mm weight about 180KG) |
| Voltage | 220V/110V 50HZ/60HZ (Standard) |
| Ink | C/M/Y/K |
| Damper heating | Equipped |
| Warranty | 1 Year （Except Print head and Ink System |
Equipment Details
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.

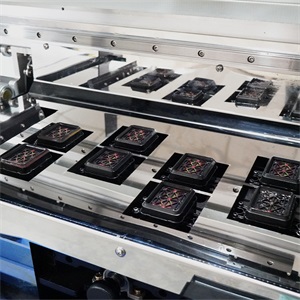

Aluminium ink station

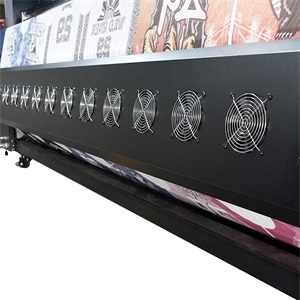

Double drying, more stable drying effect

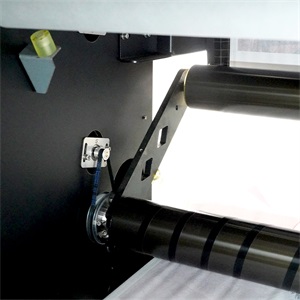

Fully Automatic Constant Tension Unwinding and Rewinding System

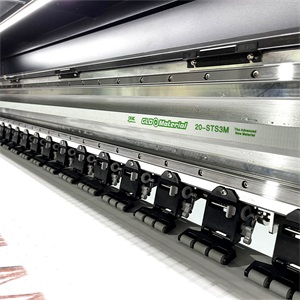

Imported silent linear guide rail

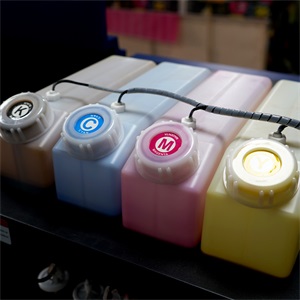

Large capacity ink supply system

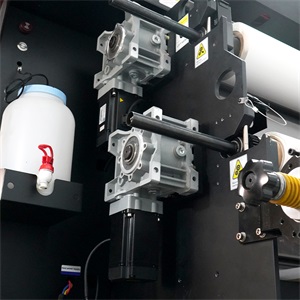

Y-direction stepping motor for higher precision
Print Head Configuration
I3200 Print Head
Sublimation printer uses Epson I3200 print heads. Epson I3200 head has 3200 nozzles, the resolution is higher than DX5 and xp600, and the color saturation, printing speed, and printing accuracy are better ,very cost-effective.
I3200 head print head Parameter
| Model | I3200 E1/U1 |
| Ink Types | Eco solvent ink , UV ink |
| Size(width x depth x height)(mm) | 69.1×59.4×35.6 |
| Weight(g) | 82 |
| Nozzle Numbers | 3200 |
| Length Between Nozzles(inch) | 1/300(in one row) |
| Nozzle Row | 8 row |
| Max color/head | 4 colors |
| Resolution | 300 npi/1 row 600 npi/2 rows |
| Effective Printing Width(mm) | 33.8 |
| Jet Freqency(kHz) | 43.2 (single dot), 21.6 (multi dot) |
| Ink Drops(pl) | 3.8-6-12(9.4) |
| Ink Viscosity(mPa.s) | 3~4 |
Printing Process
Four head sublimation printer high-definition printing, strongstability, simple operation, wide range of applications, to meet your printing needs.
Design and type setting ofpatterns through software
Printer coordinates with ink,sublimation paper printer printing
Heat transfer on the polyester fabric
Finished products
Applications
With help of heat transfer machine,pictures can be transferred to many materials, such as polyester,chiffon, silk, and flag banner.
DTF Accessories
Sublimation printer Accessories including sublimation ink
Sublimation Ink
i3200A1 ink is highly compatible with print Epson heads. You can directly print your designs on different materials , it has CMYK color
Sublimation Paper
Wrinkle and wave resistant, it can withstand high ink volumes at high printing speeds while maintaining high clarity and color fidelity
