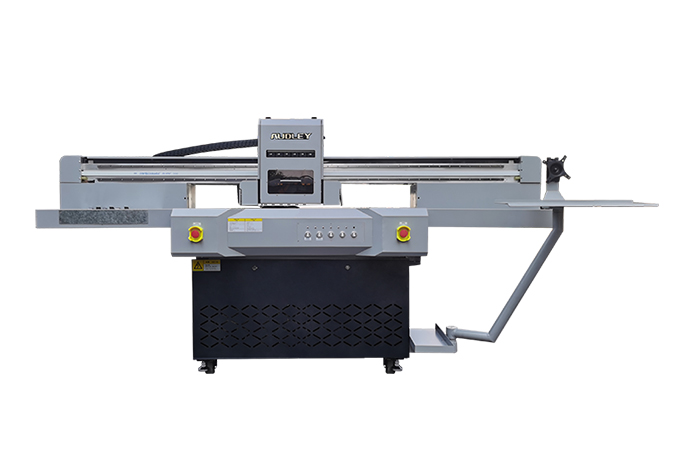

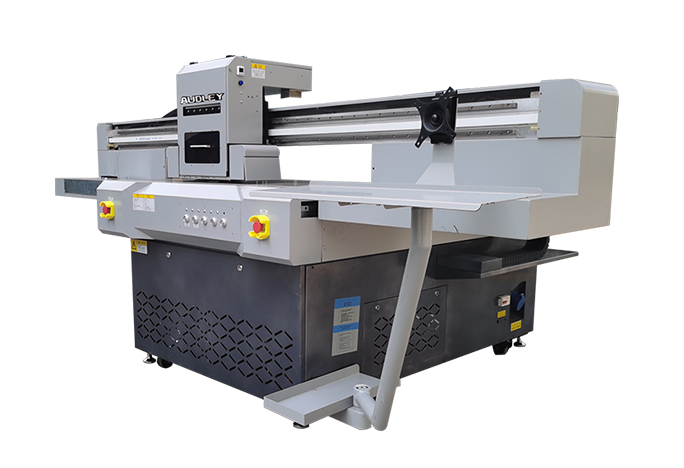

1313 UV Printer
The trolley automatically lifts and measures the height.
Double screw synchronous paper feeding.
Smart Control Panel.
Inkjet Technology: Piezo Inkjet.
Ink type: use environmentally friendly UV ink with beautiful colors and high outdoor durability.
Color configuration: 4 colors; C+M+Y+K+(W)+(V).
- Package Size 291*218*164cm
- Weight 860KG
- Power 3800W
*Warranty: 1 year, print head and ink road have no warranty
Technical Parameters
1 year, print head and ink road have no warranty
| Model | UV1313 | ||||
| Print head | 3 head Epson i3200-U1 | Board | Sunyung board | ||
| Printing material | Width | ≤1300(mm) | Rip software | Photoprint | |
| Thickness | ≤100(mm) | Power | 3800W | ||
| Metal, leather, wood, plastic, glass, ceramic, etc | Weight | 860KG | |||
| Printing resolution | Max 3200 dpi | Packing size | 291X218X164cm | ||
| Ink | UV ink | ||||
| UV curing system | 3 LED lamp water chiller | ||||
Equipment Details
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.
Printing Process
UV Printer Simple operation and convenient printing
Design and type setting of patterns through software
Printing+laminating in one
UV ink
Printing effect of finished products
Applications
Rigid medium: glass, ceramic tile, aluminum plate, door panel, signage, acrylic plate, KT plate, Chevron plate, corrugated cardboard, etc
