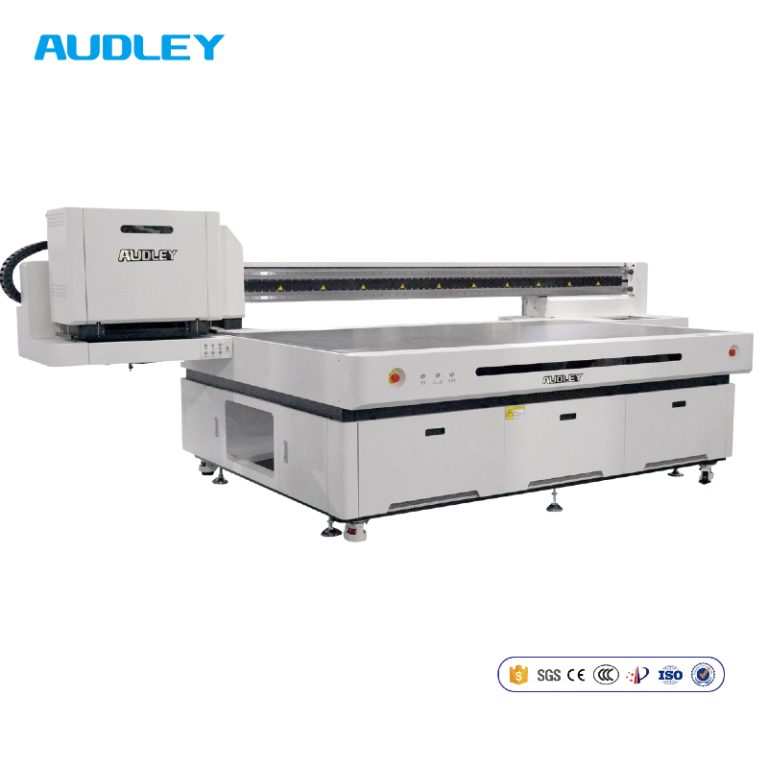

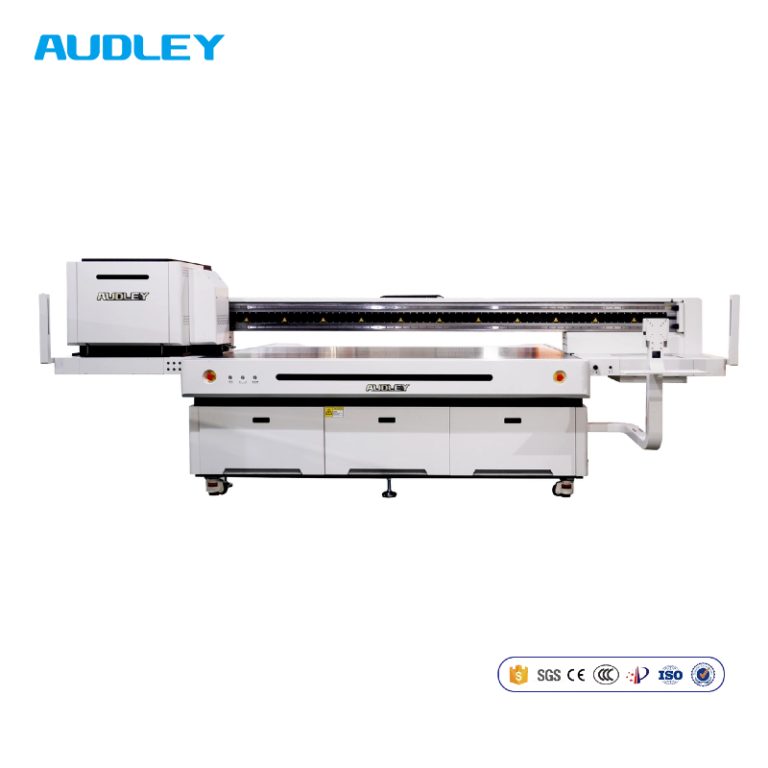

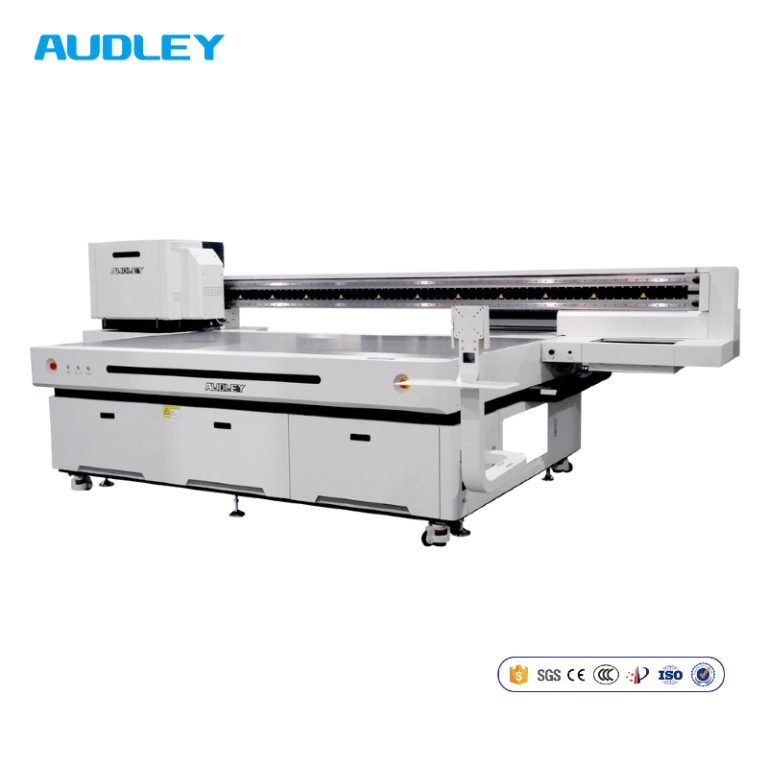

2513 UV flatbed printer for acrylic glass wood and signage
Large-format 2513 printing platform：With a maximum print size of 2500 × 1300 mm, this UV flatbed printer is suitable for large-format boards, panels, signage, decoration materials, and customized products.
Ricoh G6 UV printheads：Equipped with 4 Ricoh G6 UV printheads and supporting up to 8 printheads, the machine is designed for stable industrial printing performance and future production upgrades.
1200 dpi vision positioning system：The 1200 dpi carriage vision line scanning system helps improve printing accuracy, especially for irregular materials, multi-piece products, and precise positioning applications.
- Package Size 499*230*185cm
- Weight 2050KG
- Power 6800W
*Warranty: 1 year, print head and ink road have no warranty
Technical Parameters
1 year, print head and ink road have no warranty
| Specification | Detail |
| Model | 2513 UV printer |
| Voltage | AC220V 50Hz |
| Print head | 4-8 pcs of Ricoh G6 head |
| RIP software | Flexi / RIIN / Maintop |
| Printing size | 2450*1300mm |
| Cooling system | UV curing water chiller |
| Printing height | 150mm |
| Maximum camera scanning size | 2400*1300mm |
| Camera | 1200dpi |
| Image format | TIFF/BMP/PDF/EPS/JPEG, etc |

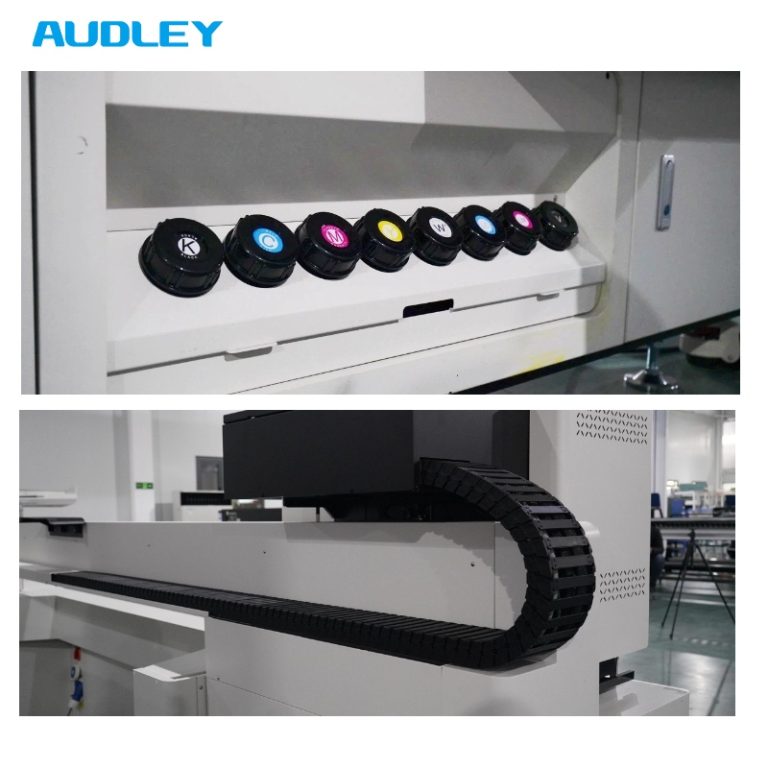

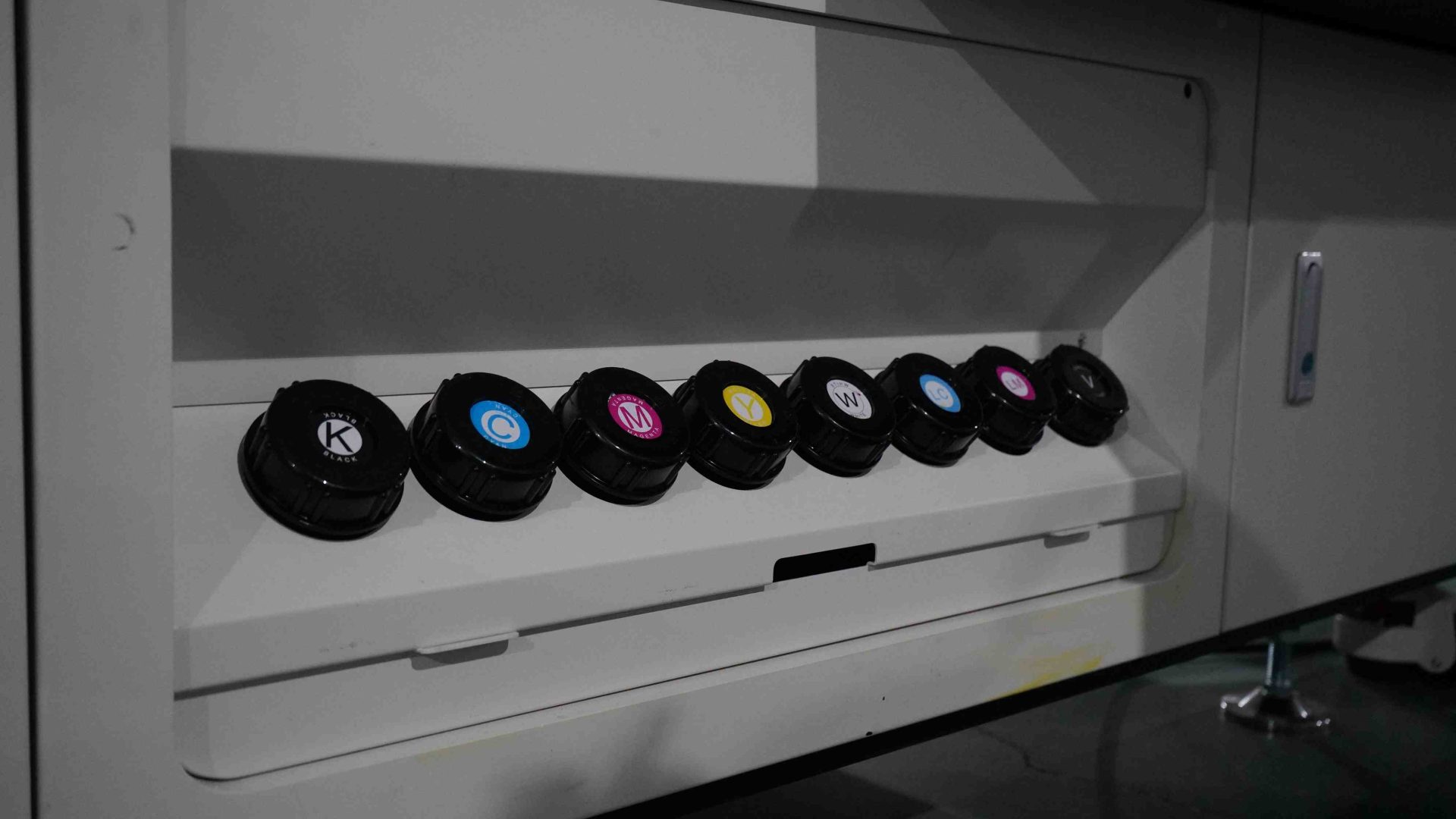

| Ink supply | Big tank, white ink with stirring motor, damper heater system in carriage station |
| Packing size | 499X230X185cm |
| Printing material | Phone case, Leather, Acrylic, Glass, METAL, PVC, PE, Wood etc. |
Equipment Details
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.

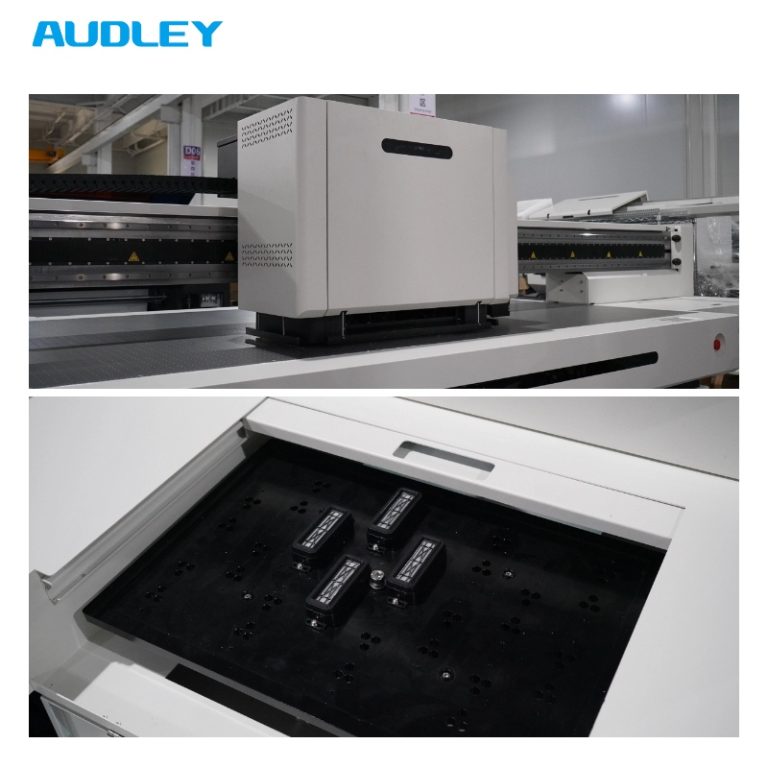

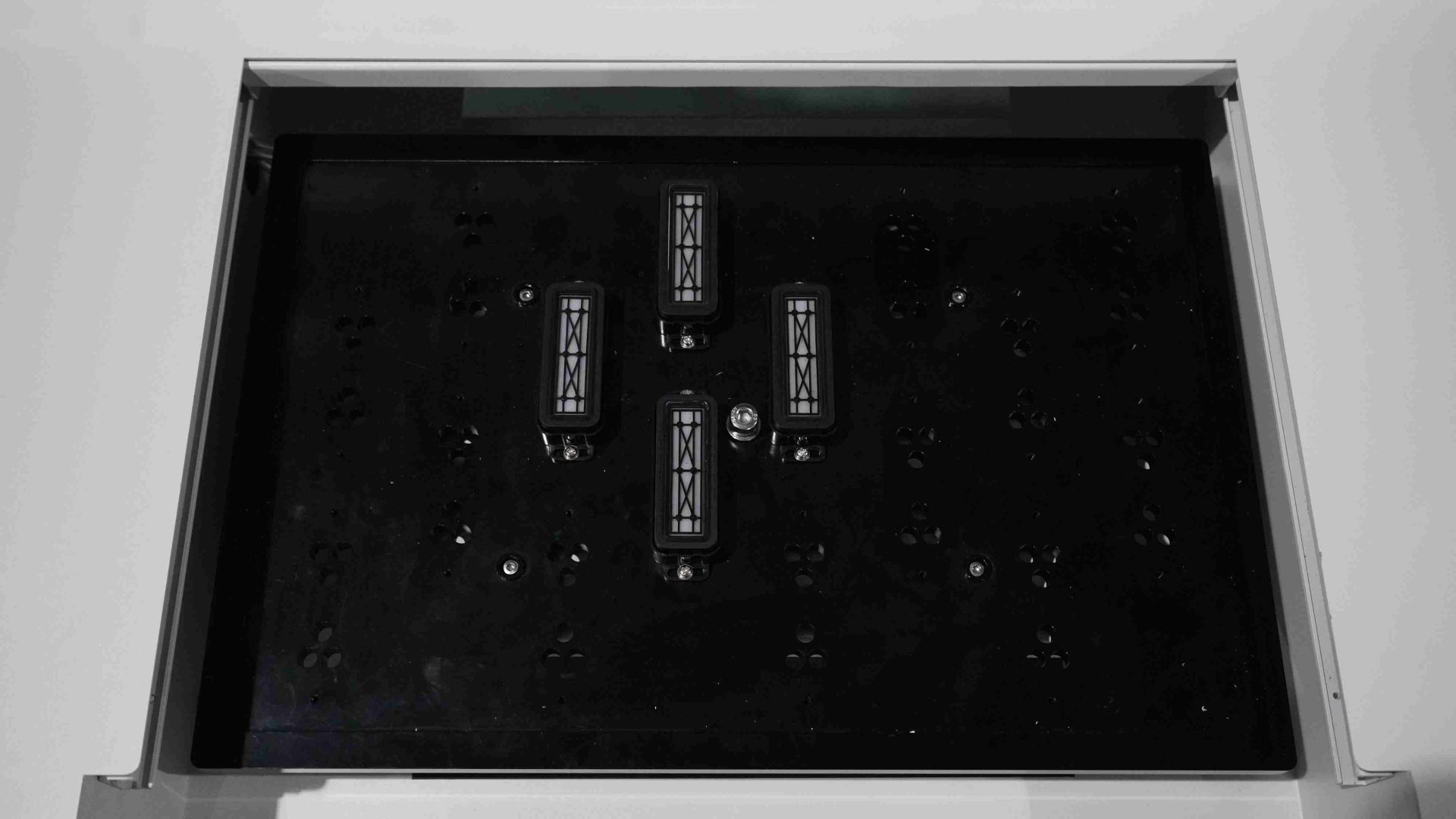

Print Head Configuration
- Industrial large-format UV printing solution
The 2513 UV flatbed printer features a 2500 × 1300 mm printing platform, making it ideal for large-format advertising boards, decorative panels, acrylic sheets, glass panels, wooden boards, and customized industrial products. - Ricoh G6 printhead configuration for stable output
The machine uses Ricoh G6 UV printheads, providing reliable printing performance, fine image details, and stable ink output. With support for up to 8 printheads, it can meet higher production requirements. - 1200 dpi vision scanning for accurate positioning
The built-in 1200 dpi vision positioning system helps improve printing accuracy on irregular products and batch items, reducing manual alignment difficulty and improving production efficiency. - Premium printing effects with white ink and varnish
With CMYK, white ink, and varnish printing, the printer can create rich visual effects such as glossy surfaces, layered texture, high color saturation, and enhanced product value. - Suitable for both rigid and flexible materials
The printer supports a wide range of materials, including glass, tiles, aluminum, wood, acrylic, PVC, corrugated board, wallpaper, reflective film, canvas, carpet, leather, and paper, helping customers expand more printing applications. - Heavy-duty structure for professional production

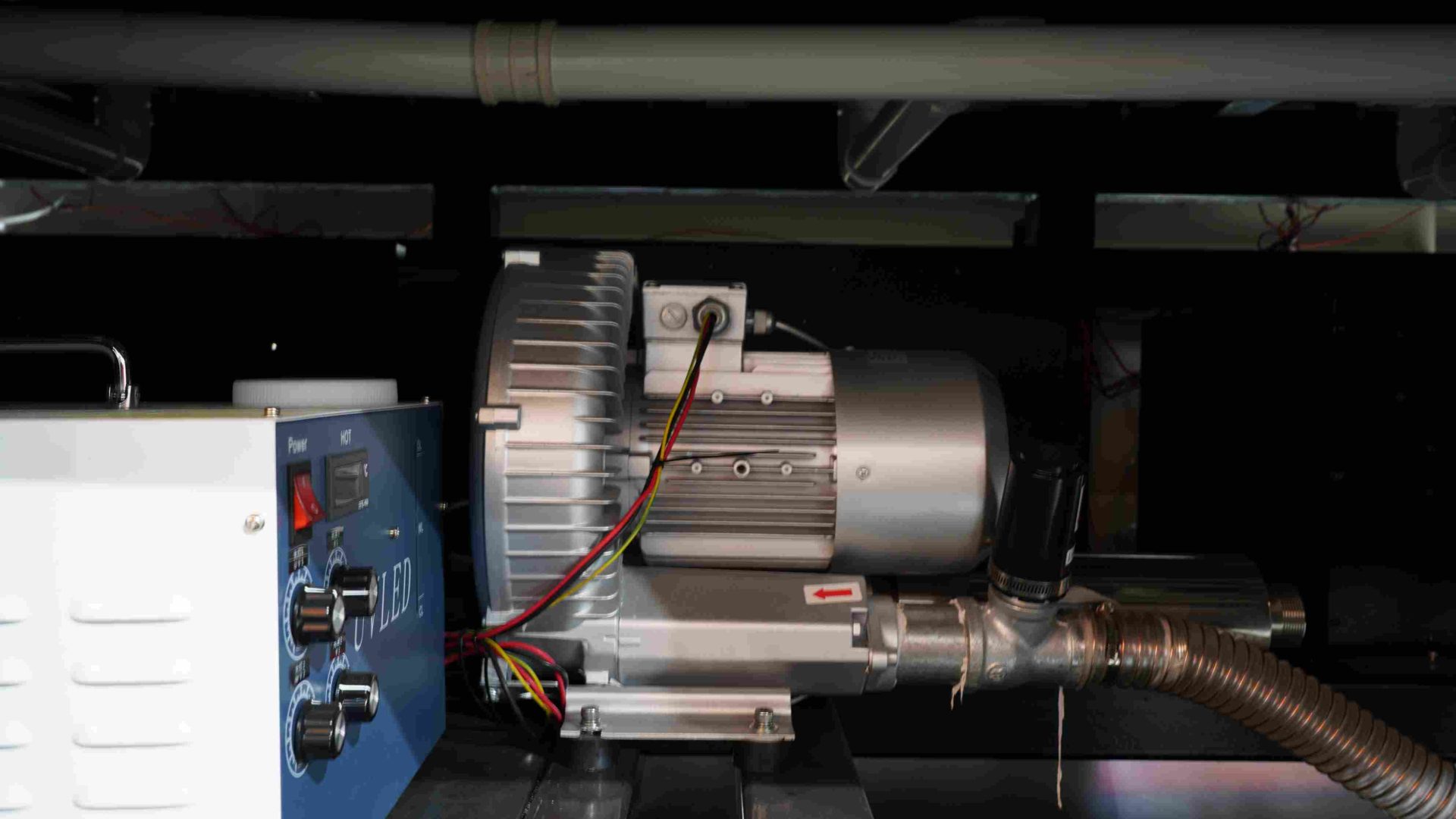

With a 1560 kg machine body, negative pressure ink supply system, water-cooled UV curing system, and industrial-grade printing platform, this machine is built for stable long-term production.
Printing Process
UV Printer Simple operation and convenient printing
Design and type setting of patterns through software
Printing+laminating in one
UV ink
Printing effect of finished products
Applications
Can be used for various material :leather,Acrylic ,paper,KT board ,foam board,glass, metal, wood, ceramic etc
1.Signage and advertising production
Suitable for signs, display boards, KT boards, PVC boards, aluminum plates, posters, exhibition panels, and advertising materials.
2.Acrylic and glass printing
Ideal for acrylic signs, glass panels, decorative glass, display products, nameplates, and premium customized products.
3.Home decoration and building materials
Can be used for ceramic tiles, ceiling panels, wooden boards, door panels, wall panels, decorative boards, and customized interior materials.
4.Gift and promotional product customization
Suitable for medals, plaques, souvenirs, brand gifts, packaging boxes, customized panels, and personalized products.
