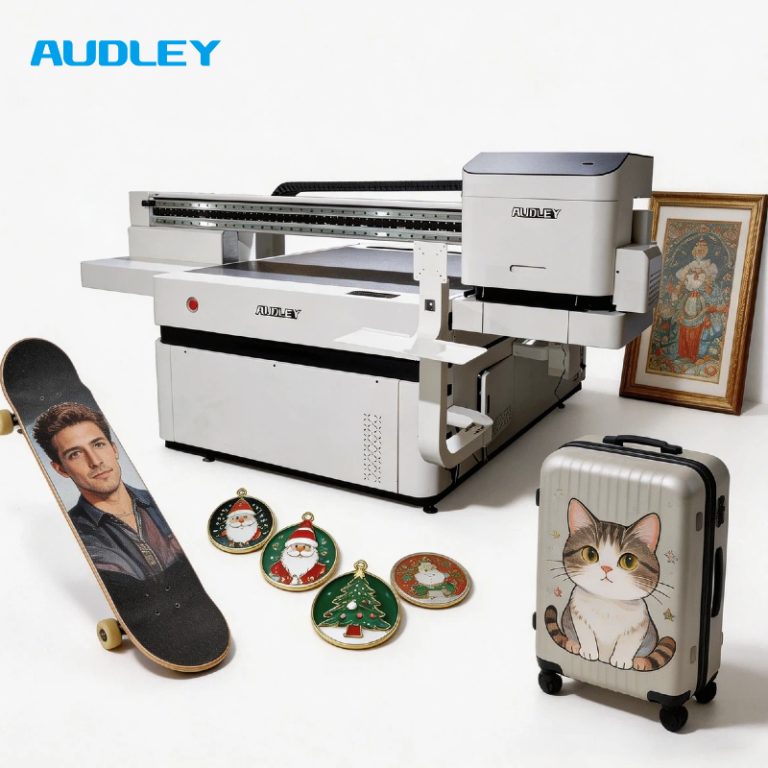

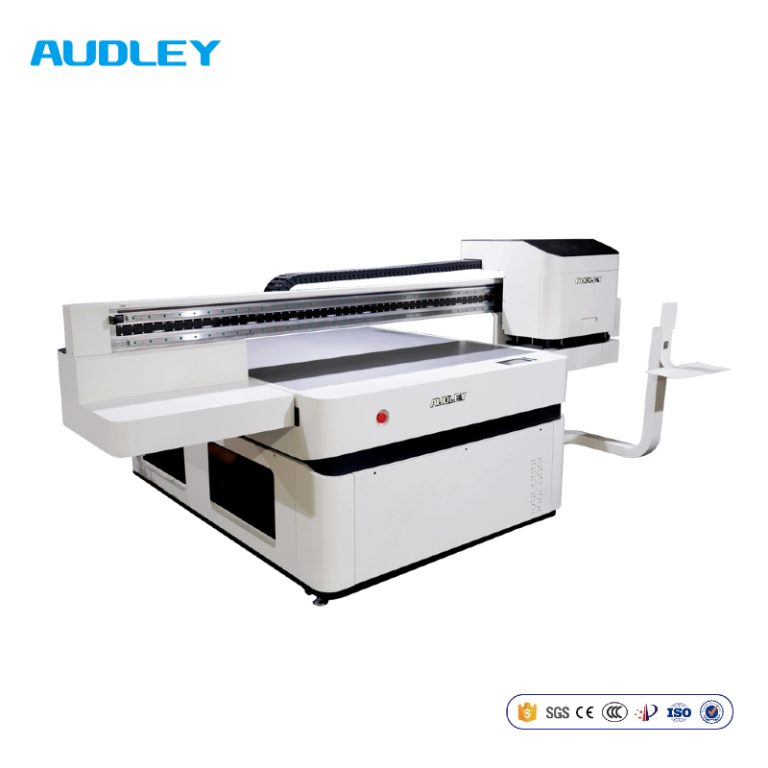

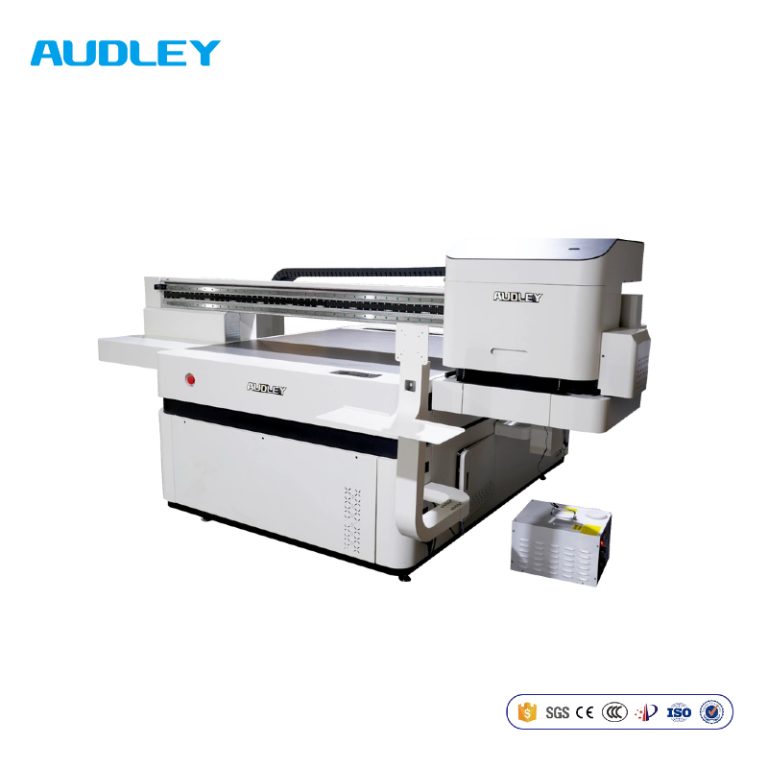

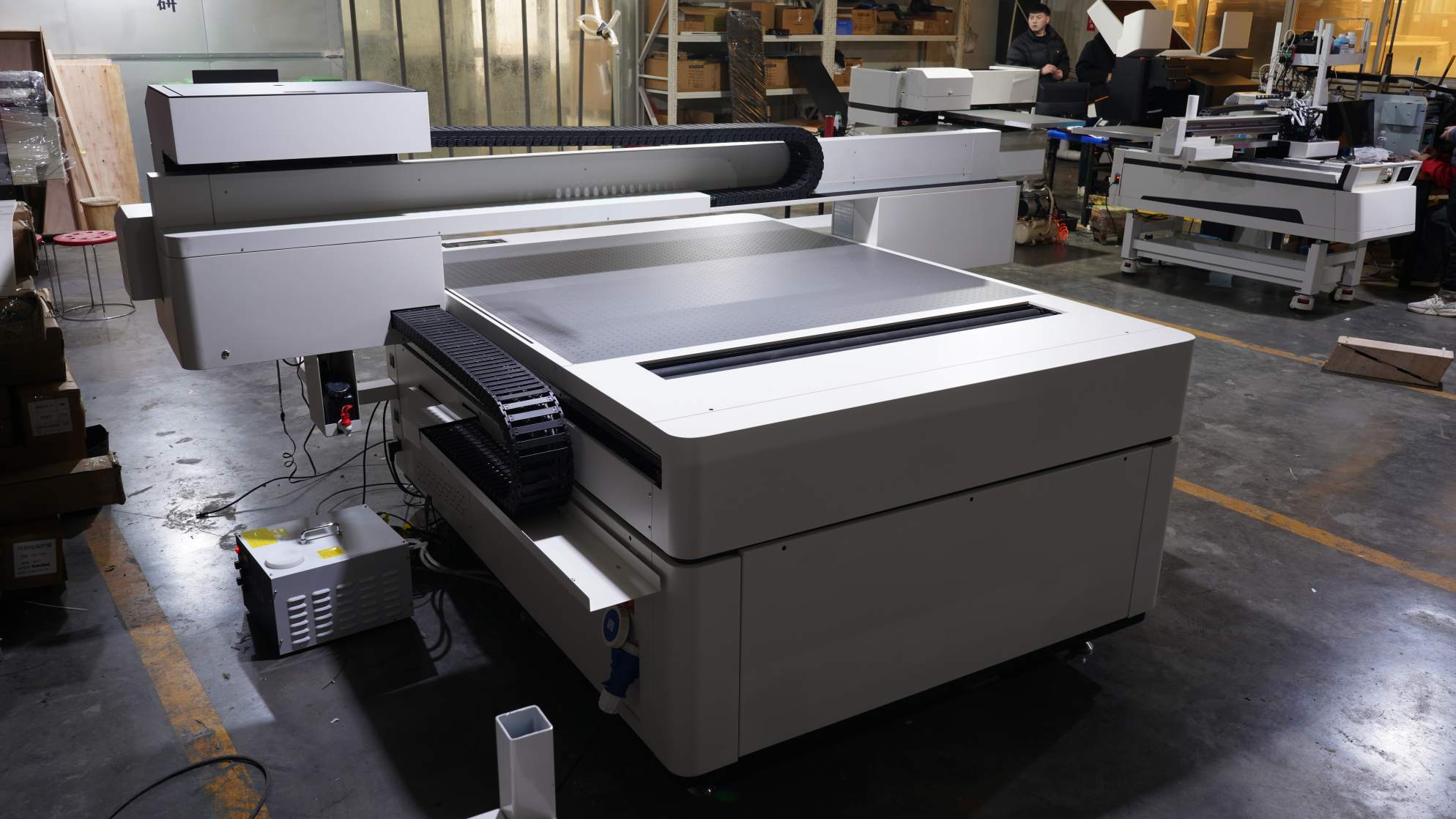

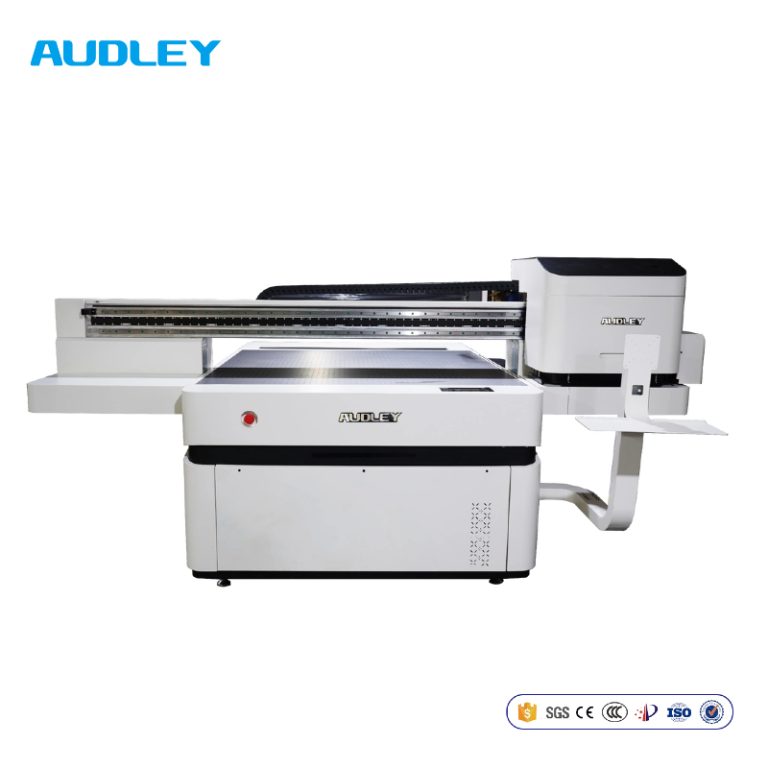

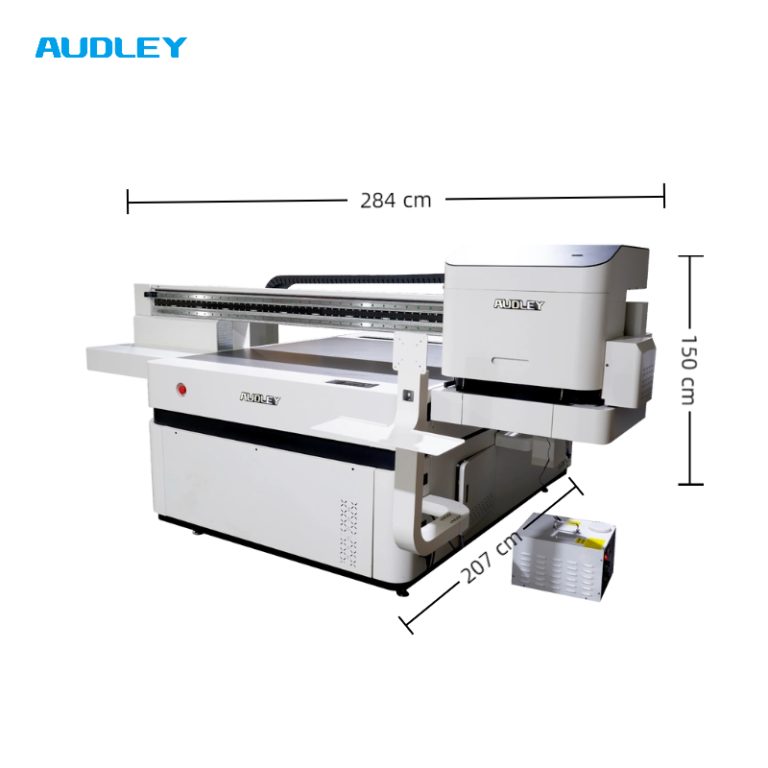

1413UV printer with 4 i3200U1 heads and 1200dpi vision positioning
High-precision vision positioning：The 1413 UV printer is equipped with a 1200 dpi vision scanning system, designed for accurate positioning on different product surfaces. It is especially suitable for irregular items, acrylic pieces, badges, signs, customized gifts, and batch printing applications.
Large printing area for more applications：With a 1400 × 1300 mm printing platform, the 1413 UV printer can handle larger materials such as acrylic boards, glass panels, wood boards, aluminum plates, KT boards, signs, leather, canvas, and packaging materials.
Rich visual effects with white ink and varnish：The C/M/Y/K/W/V ink configuration supports color printing, white ink underbase, varnish coating, glossy effects, and layered texture effects. It helps customers produce higher-value customized products.
- Package Size 296*226*171cm
- Weight 1000KG
- Power 1350W
*Warranty: 1 year, print head and ink road have no warranty
Technical Parameters
1 year, print head and ink road have no warranty
| Model | 6090-3(PRO) | ||
| Print head | Color head:i3200-U1(HD)W/ varnish :i3200-U1 | Suction platform | Equipped |
| Printing material | Width≤600X900(mm) Thickness≤180(mm) Metal, leather, wood, plastic, glass, ceramic, etc | Machine size | 171X164X81cm |
| Power | 1200W | ||
| Weight | 210KG | ||
| Camera resolution | 300dpi | Rip software | Flexiprint uv/ Riin/Maintop RIP 6.1 |
| Ink | (C+M+Y+K+LC+LM+LK+LLK)+(W)+(V) | ||
| UV curing system | 13-stage adjustable control air-cooled UV lamp | ||
Equipment Details
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.

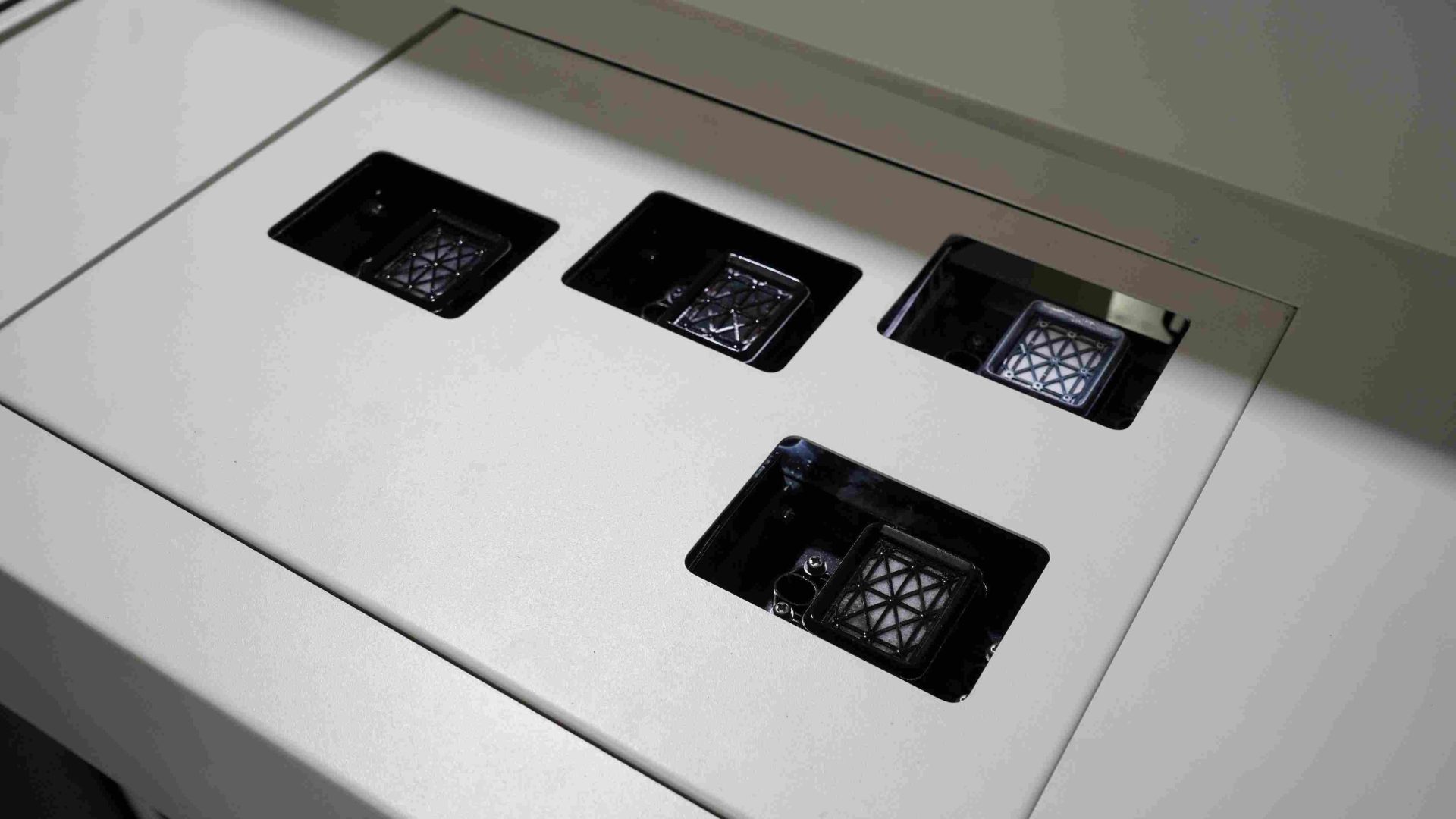

Print Head Configuration

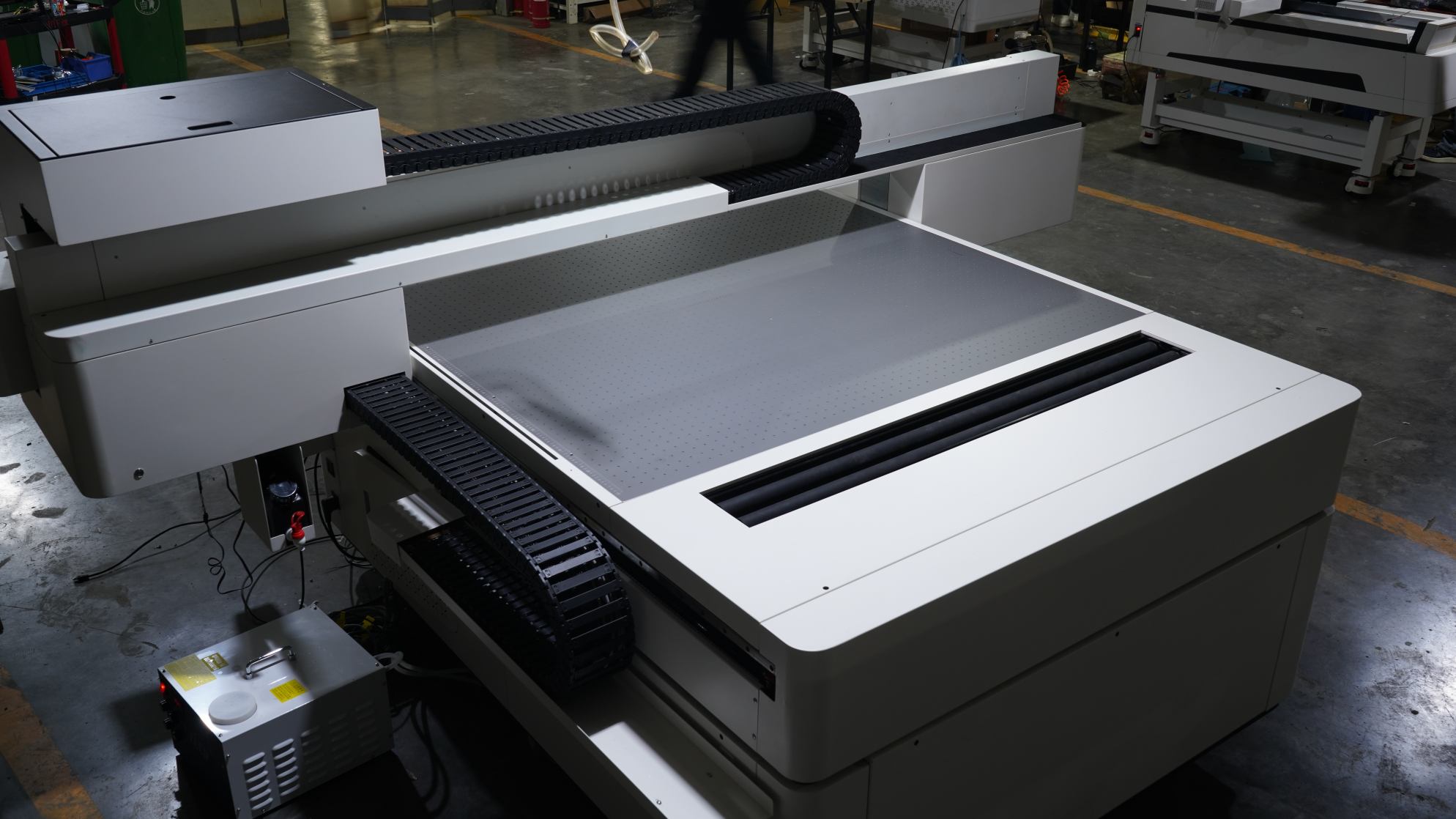

- Large-format 1413 printing platform：With a maximum print size of 1400 × 1300 mm, this 1413 UV printer is suitable for medium and large-format customized printing applications.
- Four I3200U1 printheads：Equipped with 4 I3200U1 printheads and a staggered printhead arrangement, the machine delivers stable output, high efficiency, and fine image details.

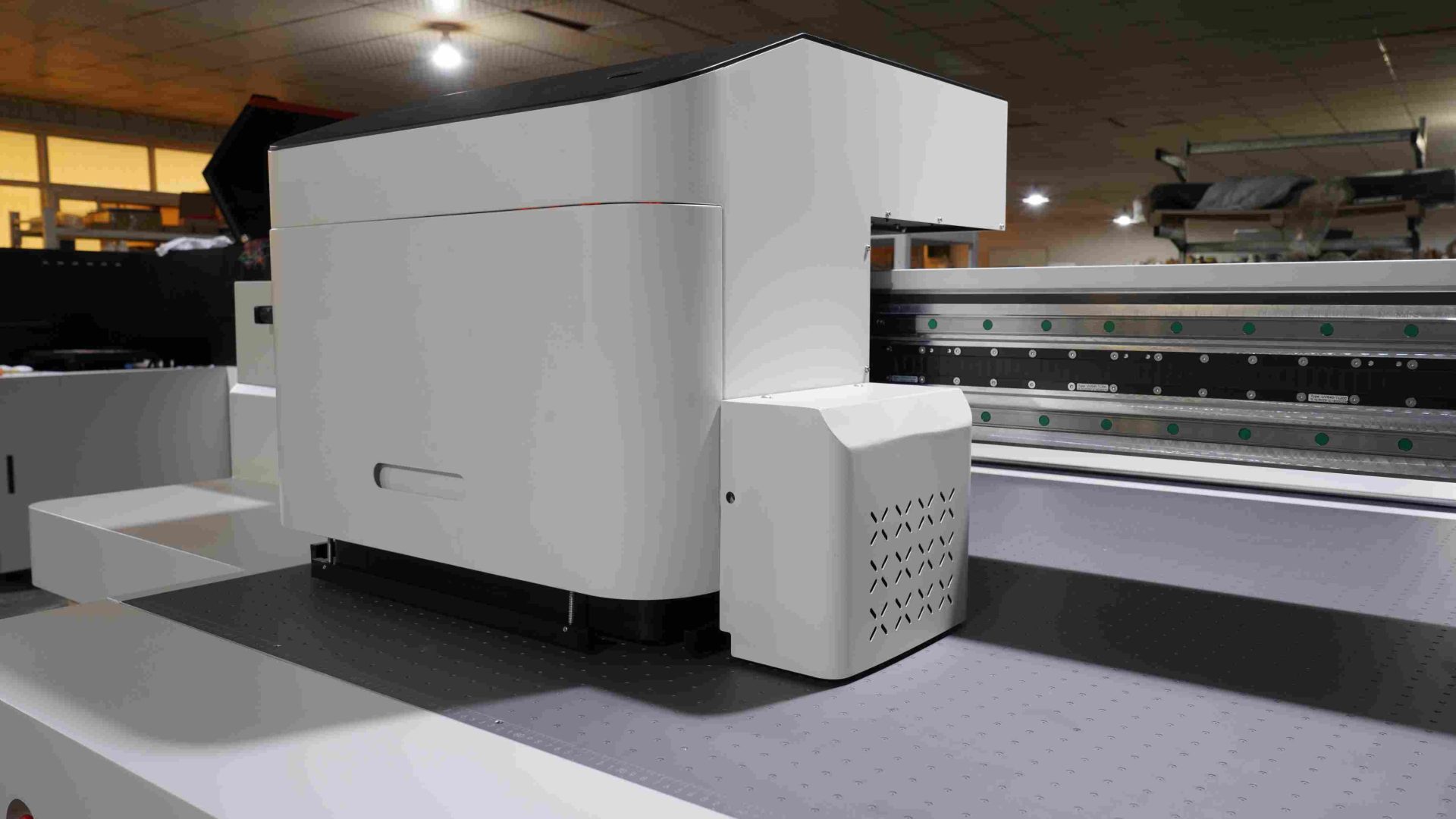

- 1200 dpi vision positioning system：The 1200 dpi carriage vision line scanning system helps improve positioning accuracy, especially for irregular products and multi-piece printing.
- White, color and varnish printing：Supports W+CMYK+V+V and W+W+CMYK+V printing modes, allowing users to create vivid colors, white ink base layers, glossy effects, and textured finishes.
- Supports flatbed and cylindrical printing：In addition to flat materials, the 1413 UV printer also supports cylindrical printing, expanding the range of printable products and business applications.
- High-power water-cooled UV curing：The water-cooled UV lamp provides efficient curing performance, helping ensure stable printing quality on different materials.
Printing Process
UV Printer Simple operation and convenient printing
Design and type setting of patterns through software
Printing+laminating in one
UV ink
Printing effect of finished products
Applications
Can be used for various material :leather,Acrylic ,paper,KT board ,foam board,glass, metal, wood, ceramic etc
