2513 UV Flatbed Printer-1

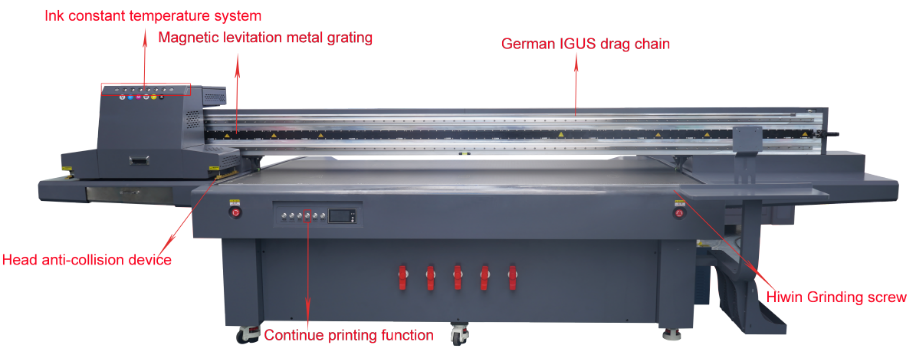

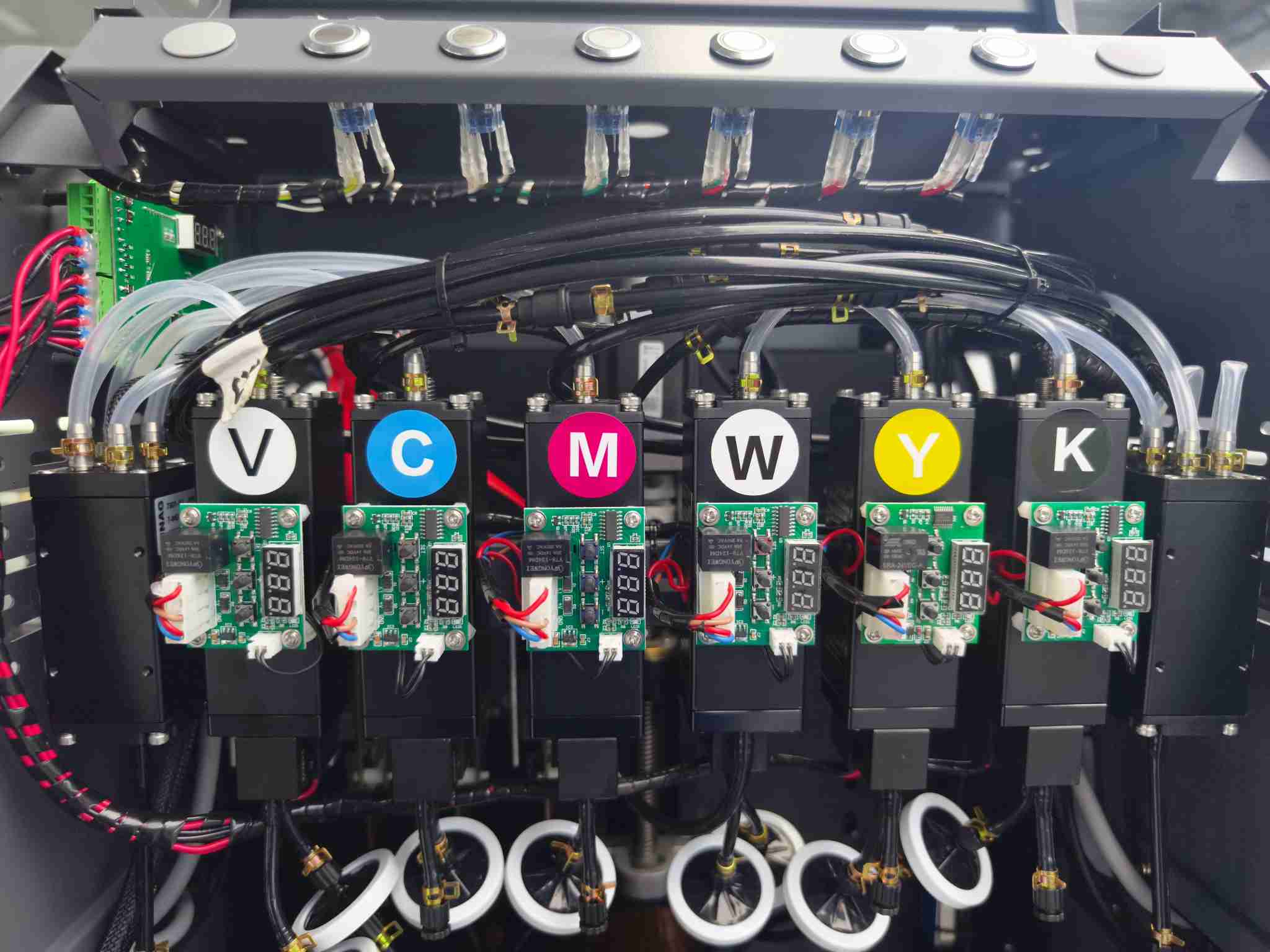

Ink constant temperature system
Internal heating of the printhead + automatic heating of the secondary ink cartridge to improve ink activity

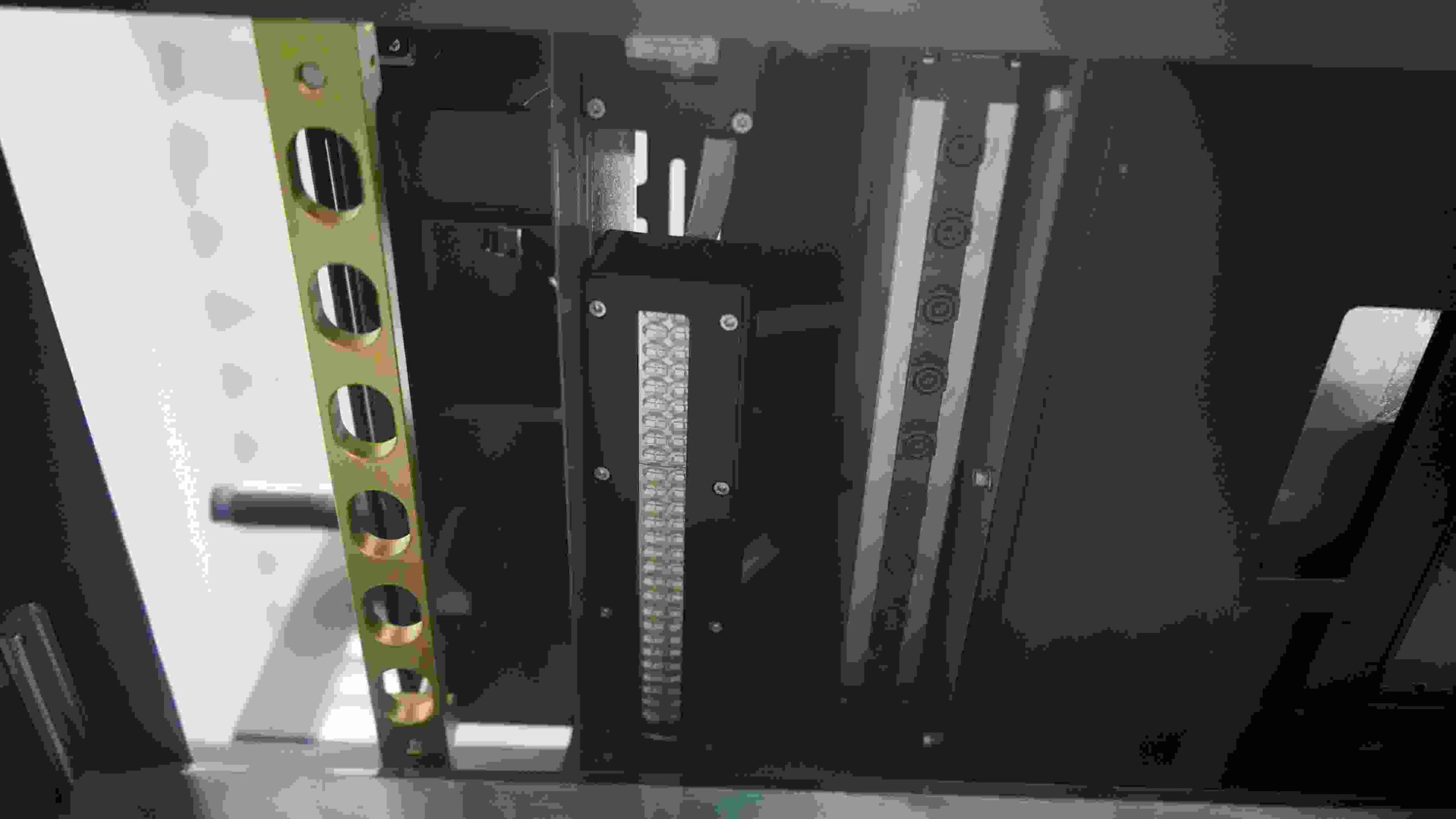

2.UV Curing Lamps
Imported Korean Seoul lamp beads, good curing effect and long life (Jingruiming/Yongcheng)
3.Anti-static system
Releases plasma pulses to eliminate static electricity

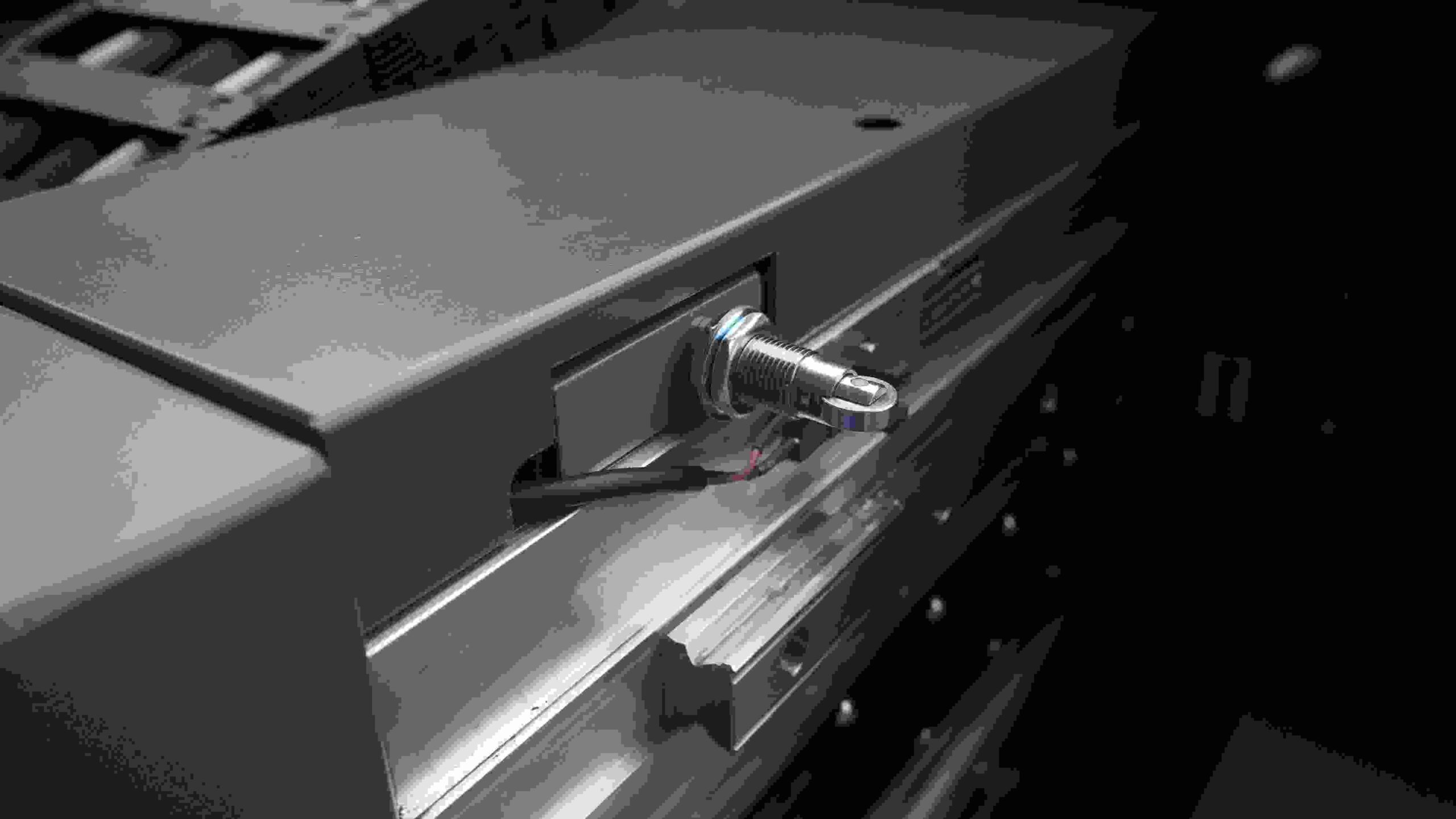

4.Automatic height measurement
Automatically measure the thickness of printing materials, and print height more accurately
5.Printhead anti-collision system
Automatic two-way anti-collision function to prevent the Printhead from being accidentally damaged
6.Ink circulation system
White ink circulation + white ink stirring to prevent ink precipitation and ensure ink fluidity
7.Platform positioning
Automatic positioning makes it easier to place materials, saving time and effort

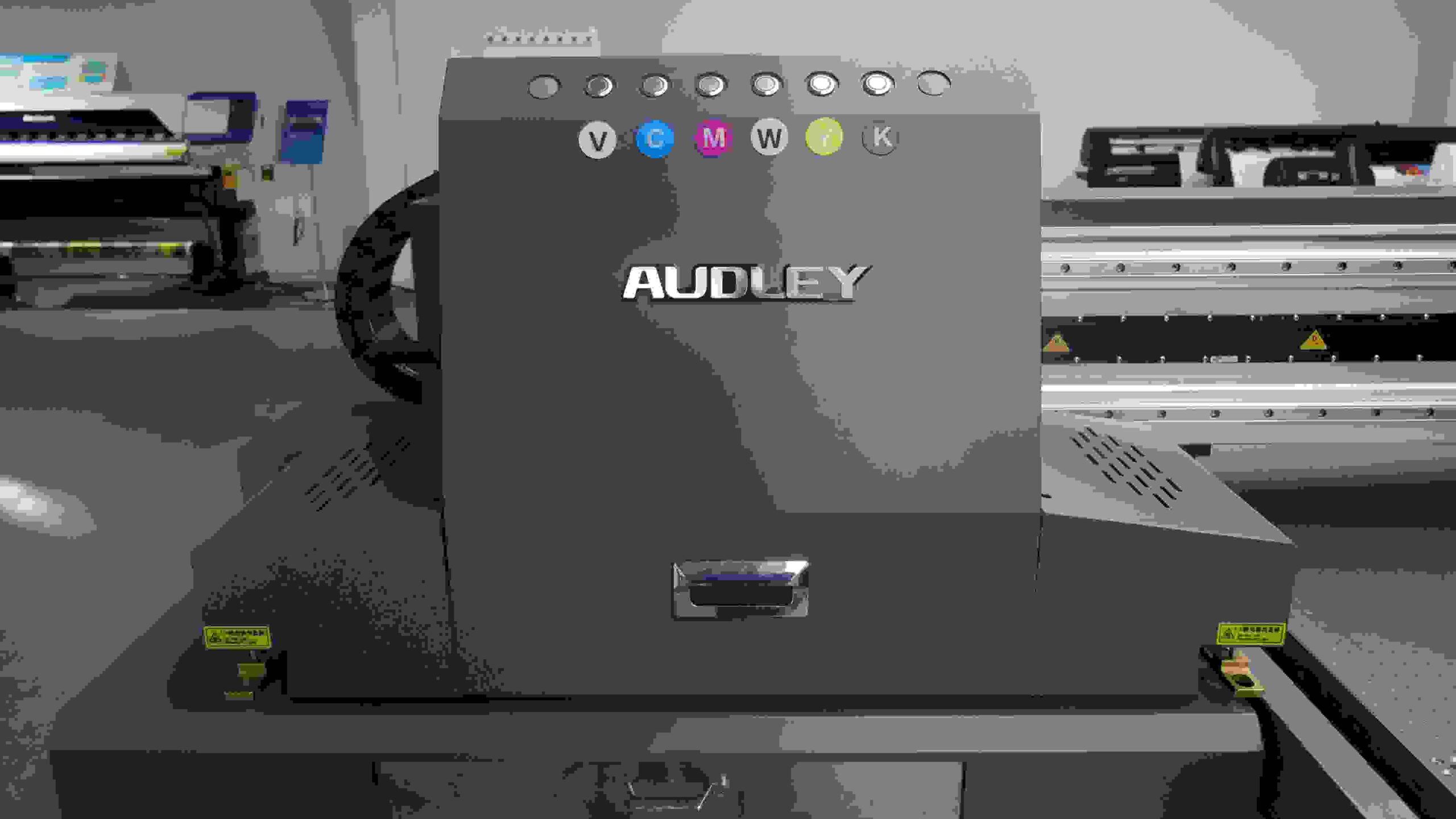

8.Ink display system
Conveniently monitor ink capacity, user-friendly equipment
- Package Size 223*152*88cm
- Weight 380KG
- Power 2500W
*Warranty: 1 year, print head and ink road have no warranty
Technical Parameters
1 year, print head and ink road have no warranty
| Main Specification | |
| Printhead | 4 original Ricoh Gen6 print head |
| Ink colors | C/M/Y/K(2 heads) + W(1 head)+V(1 Head) |
| RIP software | Photoprint |

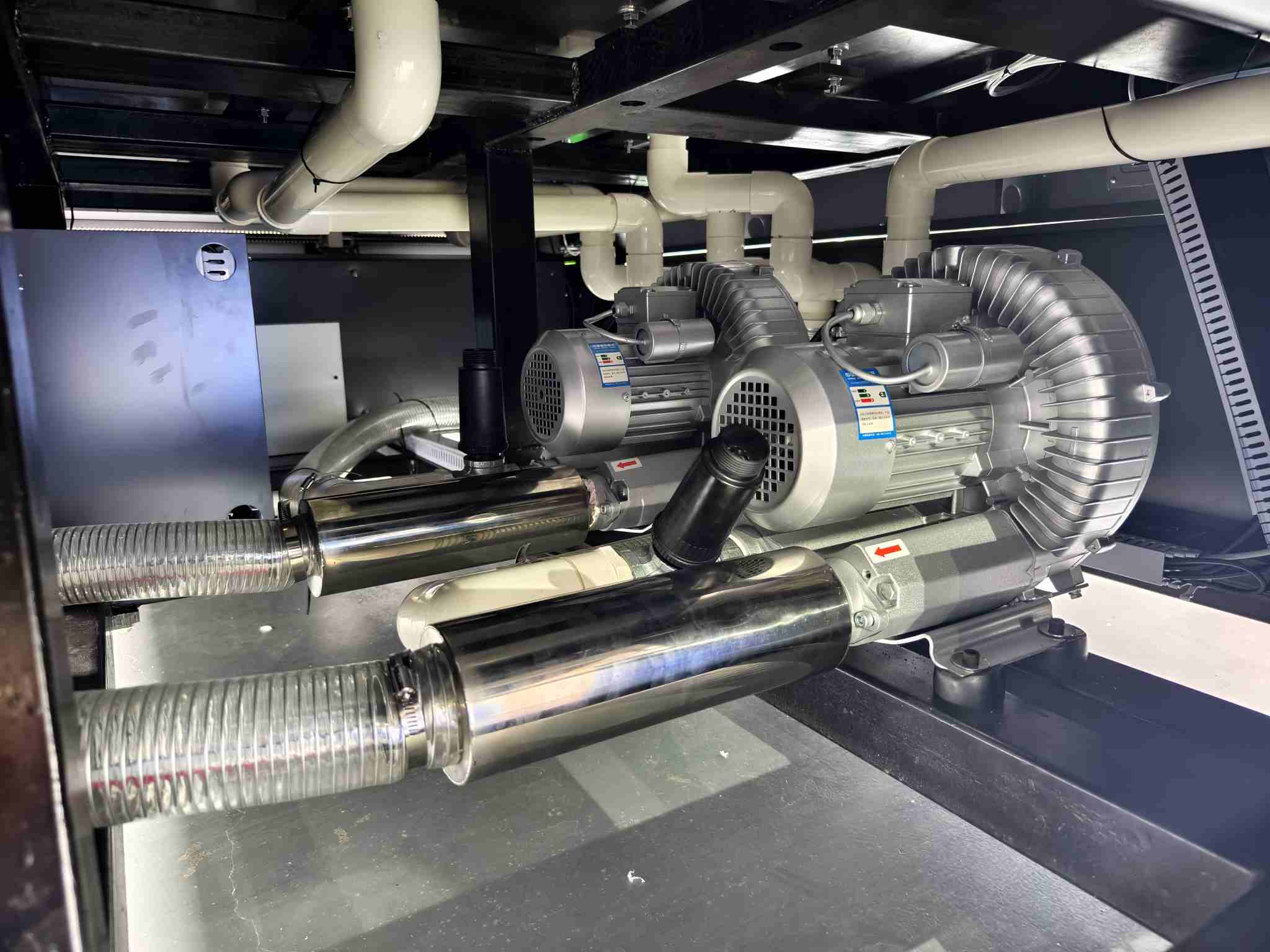

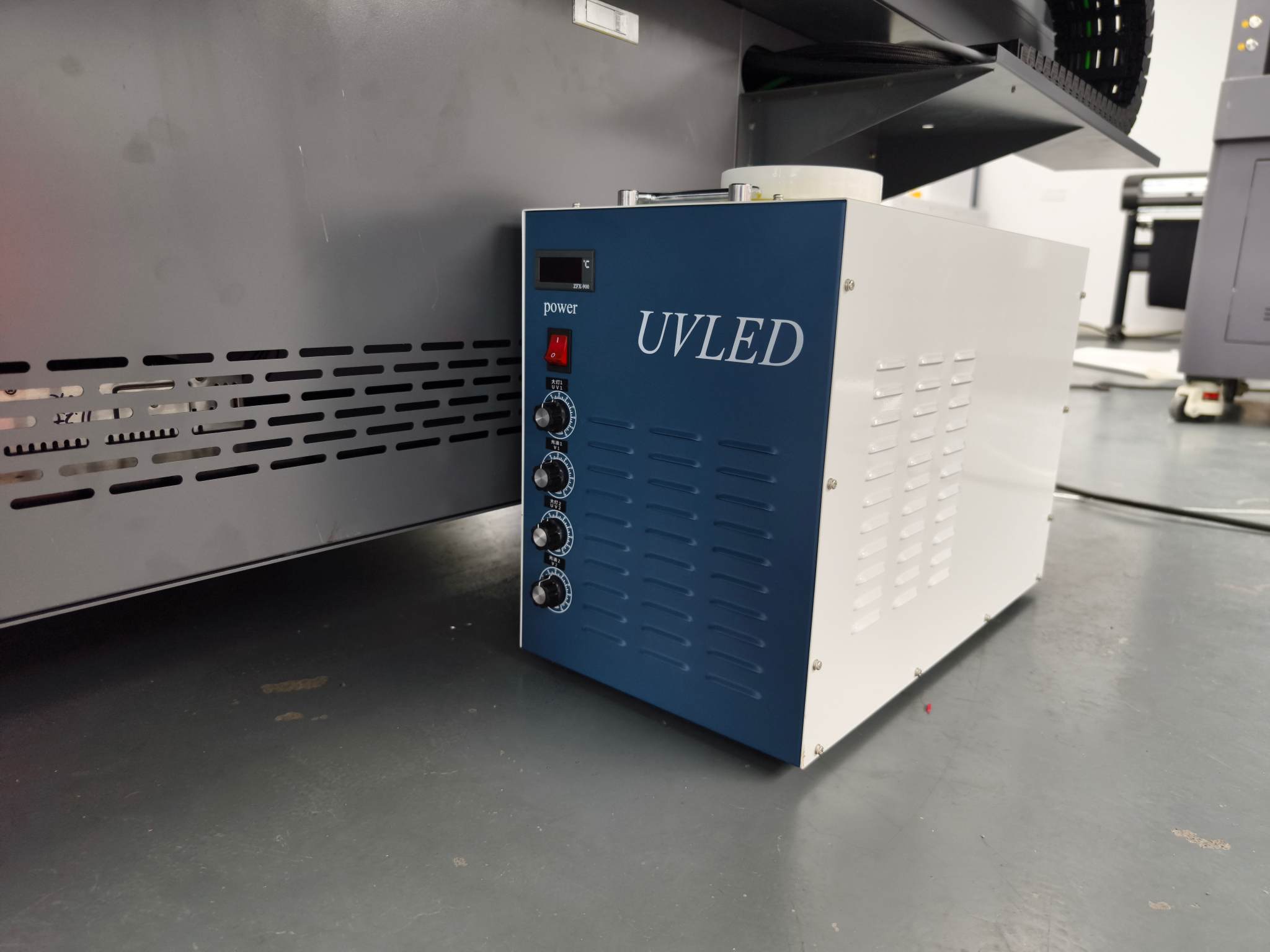

| Cooling system | UV solidified water cycle |
| Board | Shanghai Royal, (Special board designated by Japan Ricoh) |
| Print size | 2500*1300mm |
| New function | Automatically measure the thickness of printing materials, and print height more accurately |
| Max Printing hight | 100mm |
| Max print speed | Draft mode: 28m²/h |
| Standard model: 21m²/h | |
| High precision model: 14m²/h | |
| Package | 440 *220*170cm(LxWxH) |
| Gross Weight | 2000KG |

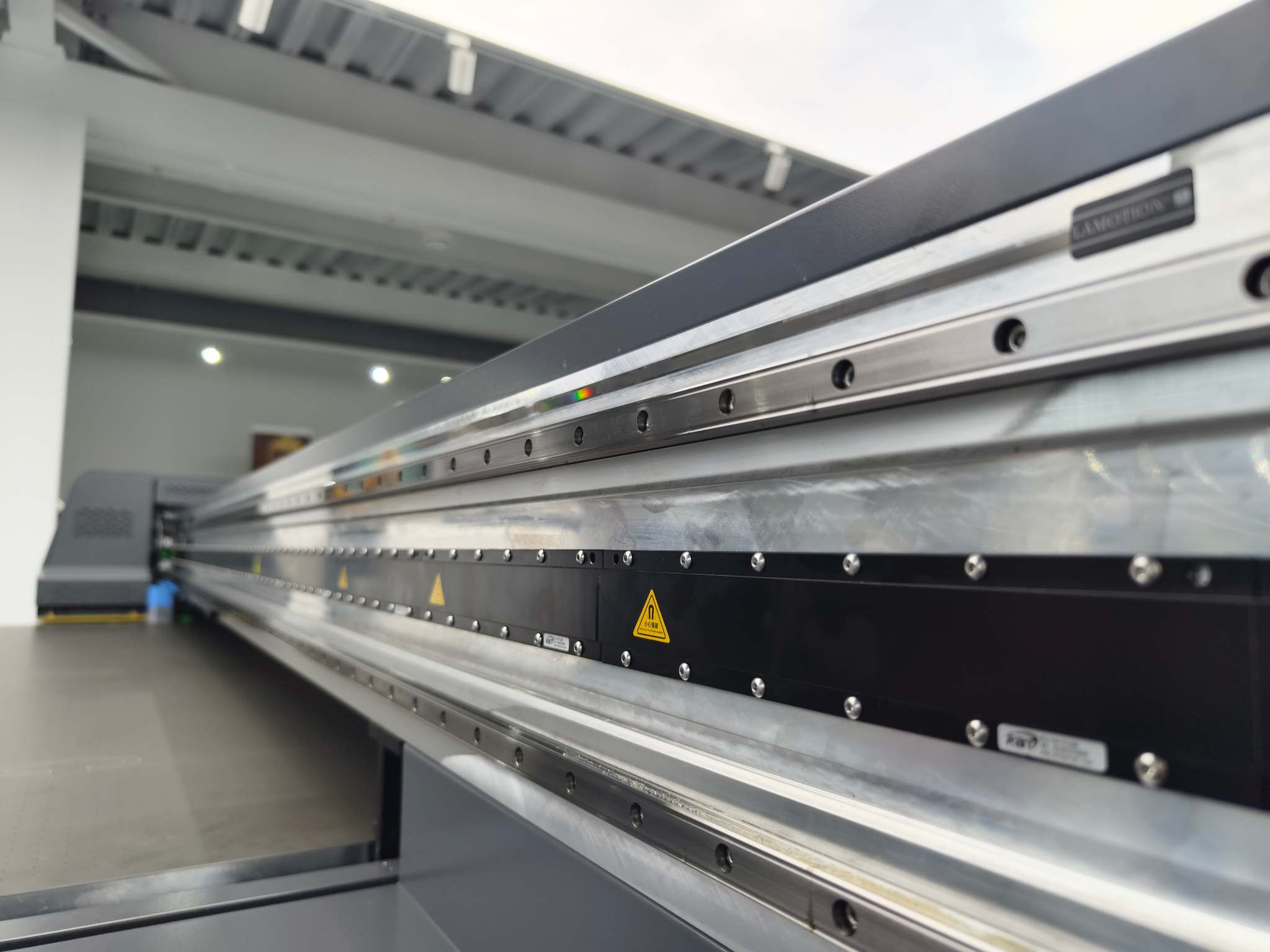

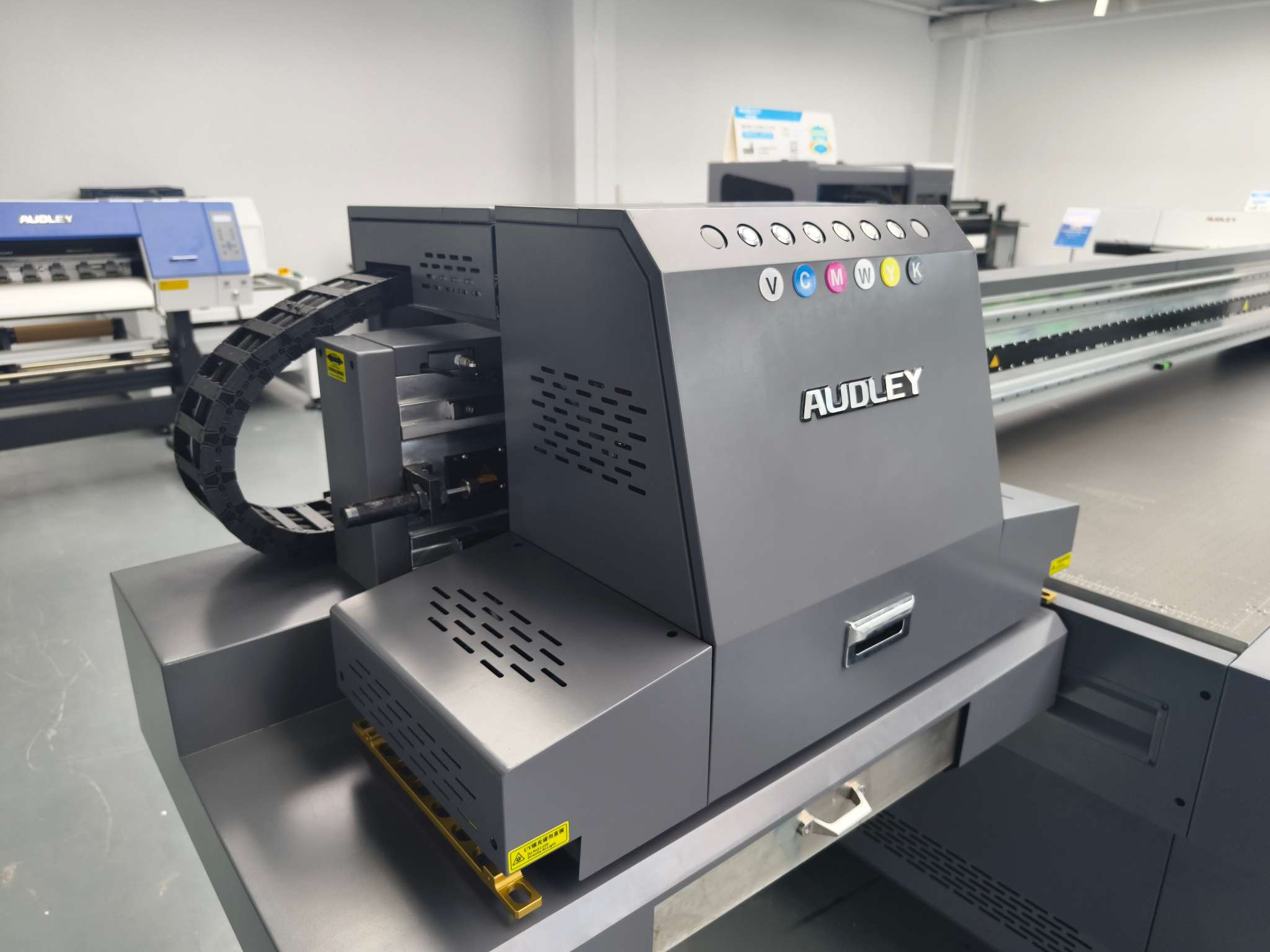

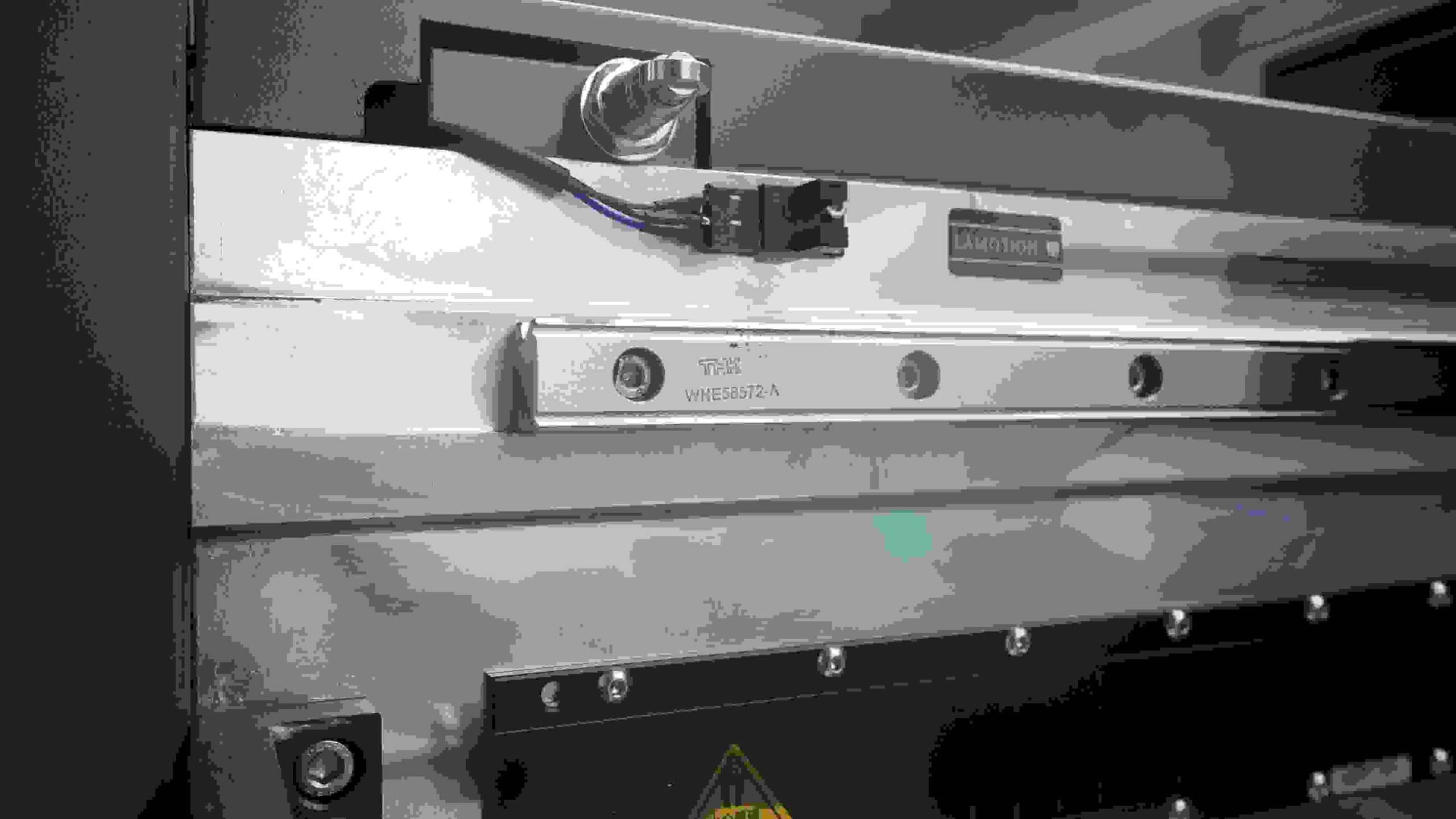

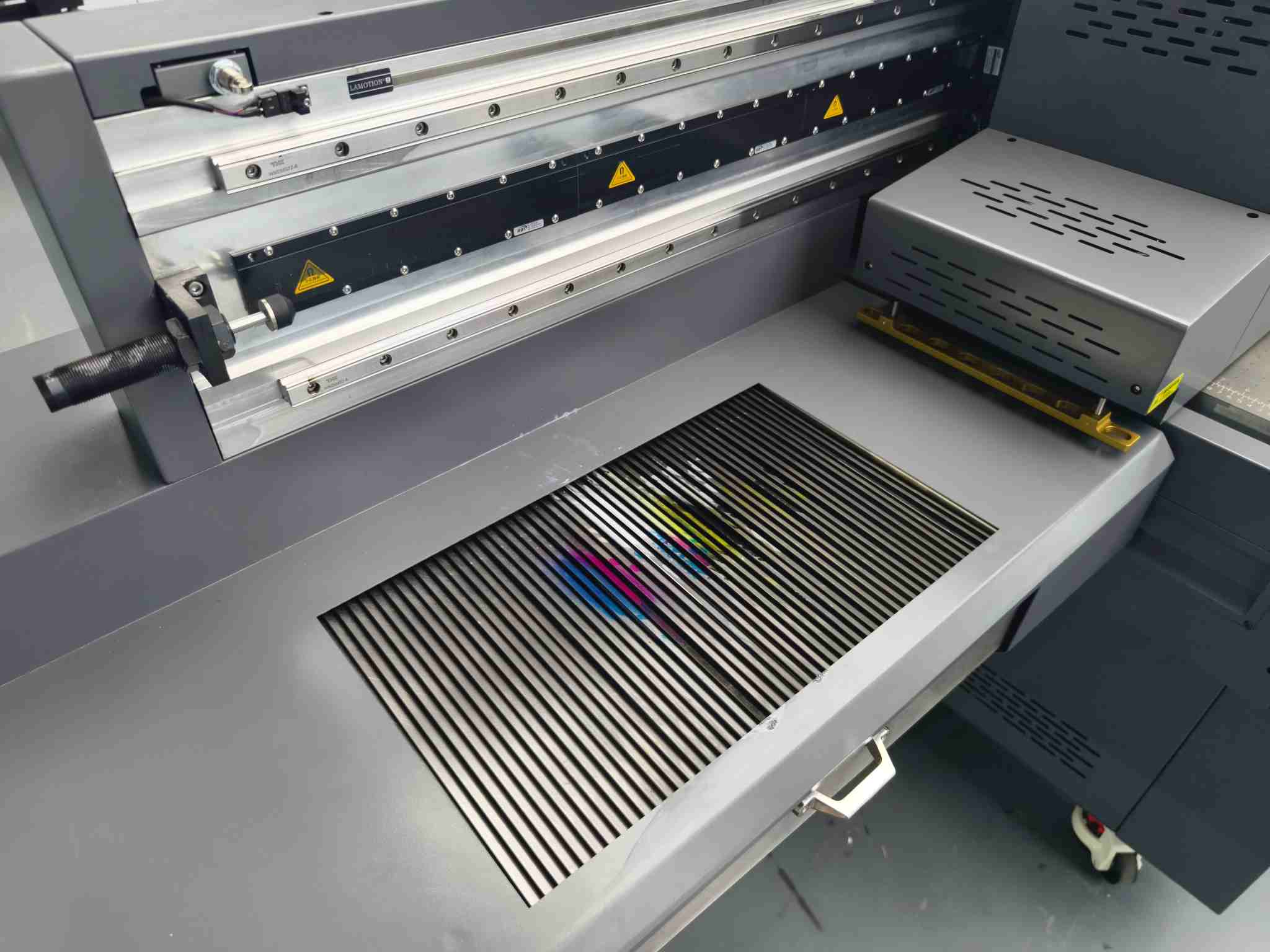

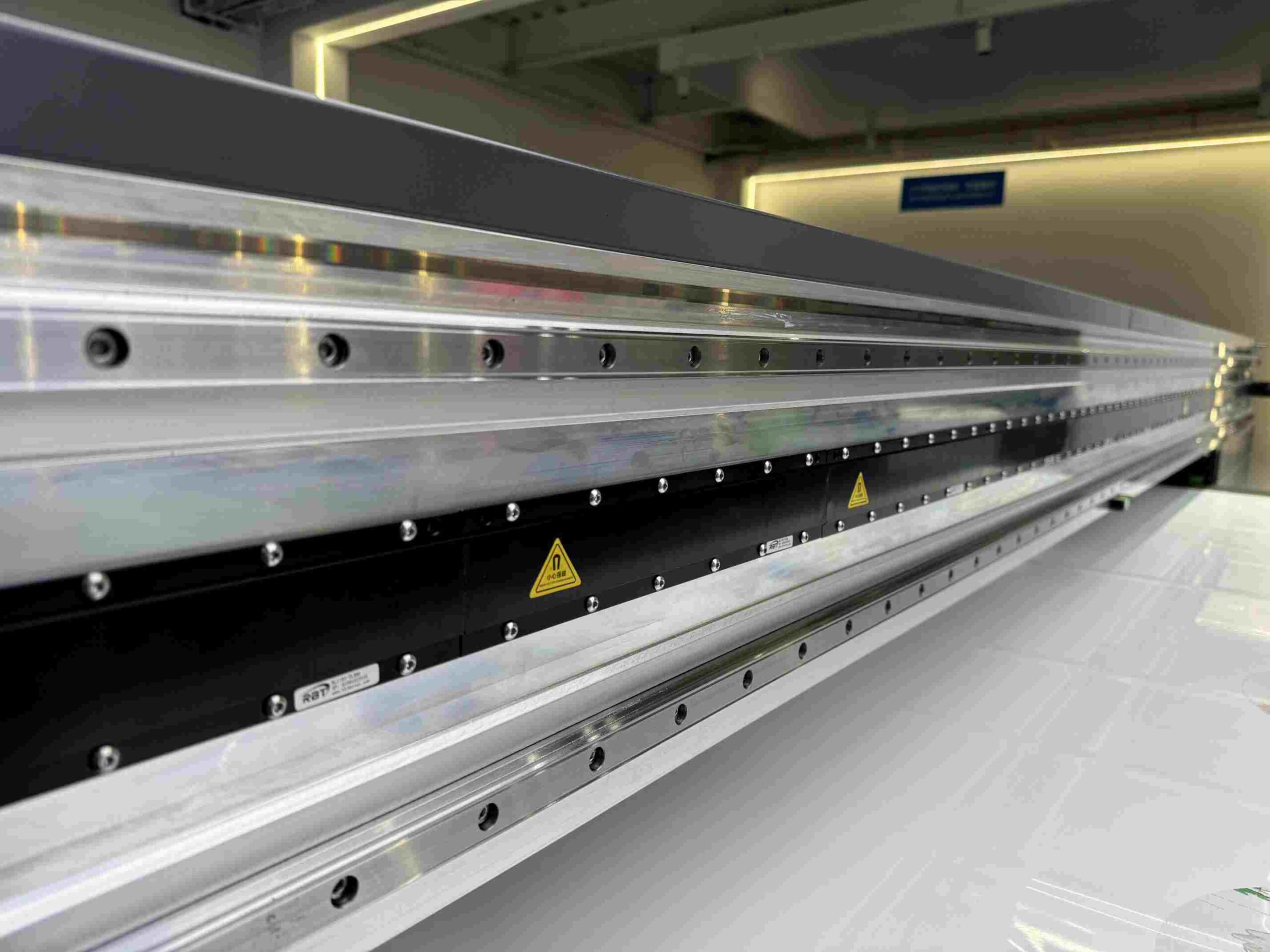

Equipment Details
State-of-the-art printer built with advanced technology to offer high precision, speed, and stability to your business success.
Advanced Flatbed Technology for an Easy and, Efficient Operation
Applications
The UV Printer meets your various customization needs, including pins, tumblers, keychains, and canvas frames. It allows you to expand your different customization services business.
